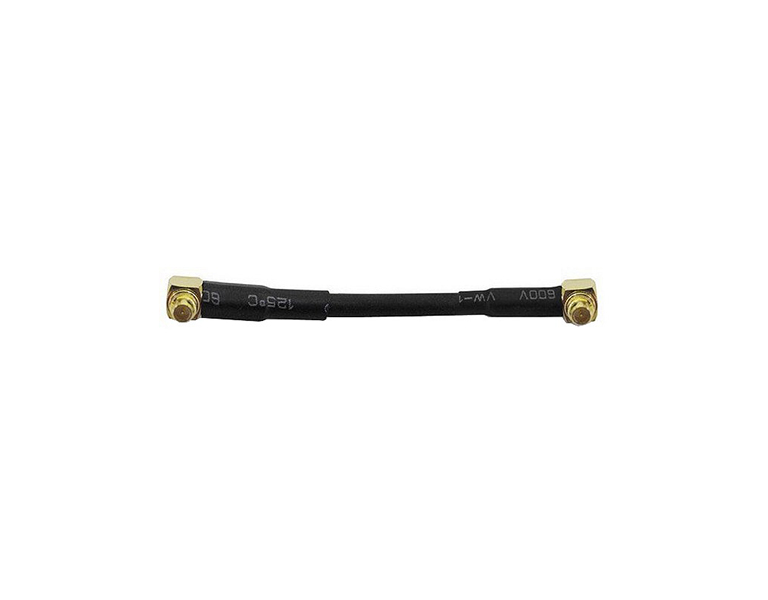

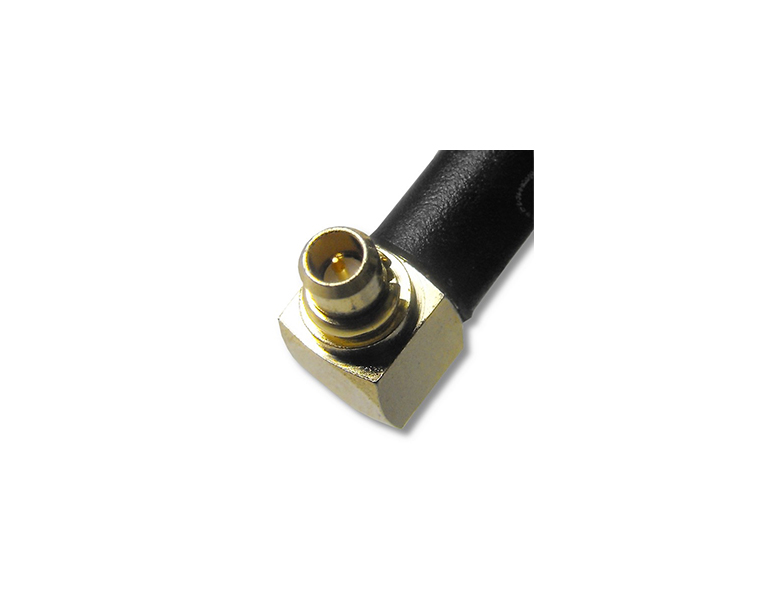

E-zy EZ-MMCXRA2MMCXRA25 MMCX Right Angle to MMCX Right Angle 25cm
MMCX to MMCX 25cm.
MMCX to MMCX series coaxial pigtails have medium-sized, threaded coupling connectors designed for use from DC to 11 GHz.
Their consistently low broadband VSWR have made them popular over the years in many applications.
The MMCX to MMCX series pigtail is impedance matched to 50 ohm cables.
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 12 months |
| Specifications | |
| Impedance | 50 ohm |
| Frequency Range | 0 to 11.0 GHz |
| V.S.W.R. | 1.3 max |
| Working Voltage | 1,000 volts rms max at sea level |
| Dielectric Withstanding Voltage | 2,500 volts rms max at sea level |
| Contact Resistance | Center contact=1.0 Milliohms max |
| Contact Resistance | Outer contact=1.0 Milliohms max |
| Insertion Loss | <2,5 dB |
| Insulation Resistance | 5,000 Megohms min |
| Connector Body (MMCX/MMCX) | (Gold/Gold) Plated |
| Center Pin | Gold Plated |
| Dielectric | Teflon |
| O-Ring | Not Present |
| Cable Type | RG316 |
