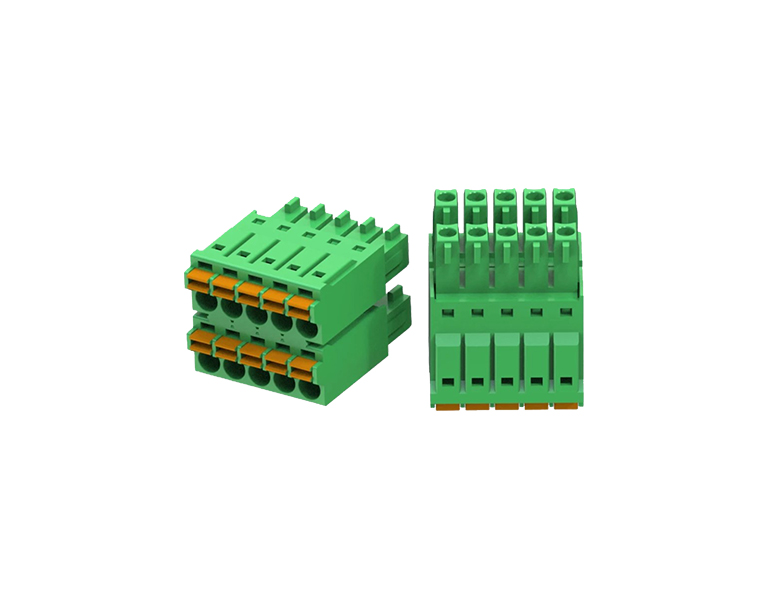

GENERAL 2X5 PIN CONNECTOR | |
Voltage rating | 300 V |
Current rating | 8 A |
Withstand voltage | 1600 V/1min |
Wire range AWG | 24 - 16 AWG |
Temperature range | -40°C +105°C |
Insulator material | PA66 |
Internal contacts material | Copper alloy |
Internal contacts finishing | Sn plated |
ADDITIONAL | |
Strip Length | 9 - 10 mm |
Pitch | 3.5 mm |
Shrapnel | Stainless steel |
Conductor cross section | 0.2 - 1.5 mm2 |
Poles | 2 x 5 |
Flammability rating | UL 94 V-0 |
Certification | RoHS,REACH |

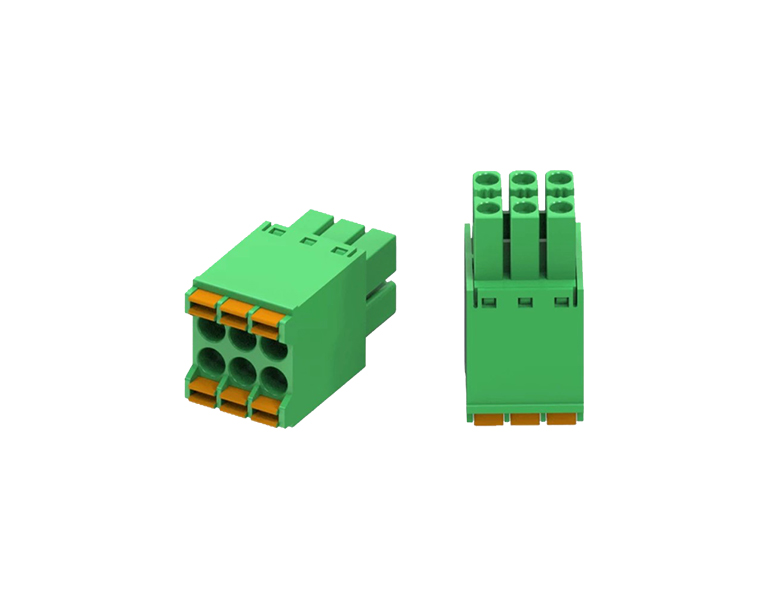

GENERAL 2X3 PIN CONNECTOR | |
Voltage rating | 300 V |
Current rating | 8 A |
Withstand voltage | 1600 V/1min |
Wire range AWG | 24 - 16 AWG |
Temperature range | -40°C +105°C |
Insulator material | PA66 |
Internal contacts material | Copper alloy |
Internal contacts finishing | Sn plated |
ADDITIONAL | |
Strip Length | 9 - 10 mm |
Pitch | 3.5 mm |
Shrapnel material | Copper alloy |
Conductor cross section | 0.2 - 1.5 mm2 |
Poles | 2 x 3 |
Flammability rating | UL 94 V-0 |
Certification | RoHS,REACH |
