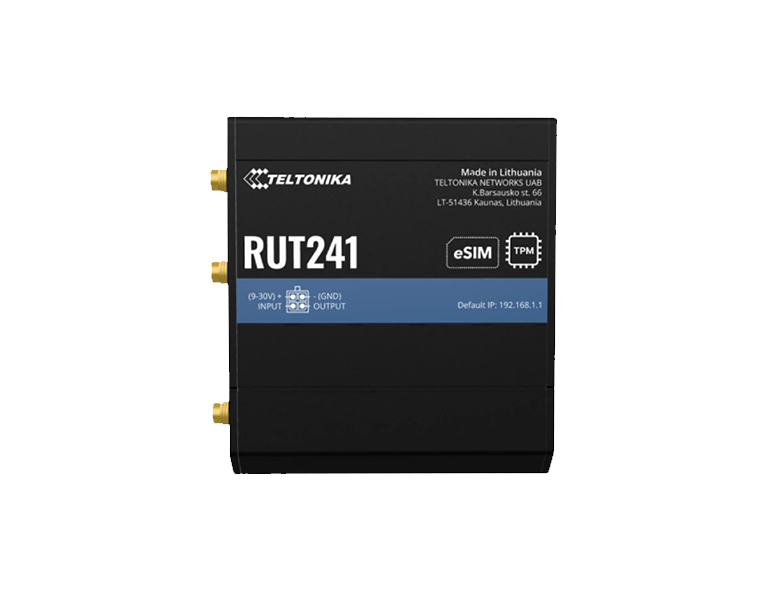

The RUT241 eSIM™ is an industrial cellular router equipped with LTE Cat 4 and eSIM™ with SGP.22 pull-based consumer architecture. This compact eSIM™ router supports a physical SIM card, up to seven eSIM™ profiles, controlled via WebUI and RMS, and Trusted Platform Module (TPM) for enhanced security. The RUT241 eSIM™ router provides undisrupted connectivity with automatic WAN failover and two Ethernet ports, making it perfect for your M2M and IoT solutions.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Specifications
Hardware
Mobile	4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
CPU	Mediatek, 580 MHz, MIPS 24KEc
Storage	16 MB Flash
RAM	128 MB, DDR2
Powering option	4pin power socket, 9-30 VDC
SIM	1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder
eSIM™	Consumer type eSIM™, profile download and removal operations, up to 7 eSIM™ profiles
TPM	Identification and authentication module, TPM 2.0 standard
Antenna connectors	2 x SMA for mobile, 1 x RP-SMA for WiFi antenna connectors
Ethernet	2 x RJ45 ports, 10/100 Mbps
WiFi	IEEE 802.11b/g/n, Access Point (AP), Station (STA)
Inputs/Outputs	1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high, 1 x Digital Output, Open collector output, max output 30 V, 300 mA
Status LEDs	3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
Operating temperature	-40 °C to 75 °C
Housing	Aluminum housing, plastic panels
Dimensions (W x H x D)	83 x 25 x 74 mm
Weight	130 g
SOFTWARE
Operating system	RutOS (OpenWrt based Linux OS)
Mobile features	eSIM, Status, SMS, USSD, Black/White list, Multiple PDN, Band management, SIM idle protection service, APN, Bridge, Passthrough
Network features	VoIP passthrough support, Connection monitoring, Firewall, Firewall status page, Ports management, Network topology, Hotspot, DHCP, QoS / Smart Queue Management (SQM), DDNS, DNS over HTTPS, Network backup, Load balancing, SSHFS
Security	Authentication, Firewall, Attack prevention, VLAN, Mobile quota control, WEB filter, Access control, TPM, SSL certificate generation
VPN and tunneling	OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc
Monitoring and Management	WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS
Cloud solutions	RMS, Cloud of Things, ThingWorx, Cumulocity, Azure IoT Hub
Services	OPC UA, Modbus, Data to Server, Modbus MQTT Gateway, DNP3, DLMS, API
Package Contents	• Router RUT241 • 9 W PSU • 2x Mobile antennas (swivel, SMA male) • 1x Wi-Fi antenna (swivel, RP-SMA male) • Ethernet cable (1.5 m) • SIM Adapter kit • QSG (Quick Start Guide) • Packaging box
