• Built-in 13dBi 2x2 dual-polarized directional MIMO antenna • Adjustable transmission power from 0 to 23dBm/200mw • System-level optimizations for more than 15km long range wireless transmission • TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications • Centralized Management System – Pharos Control • AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes • Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely |

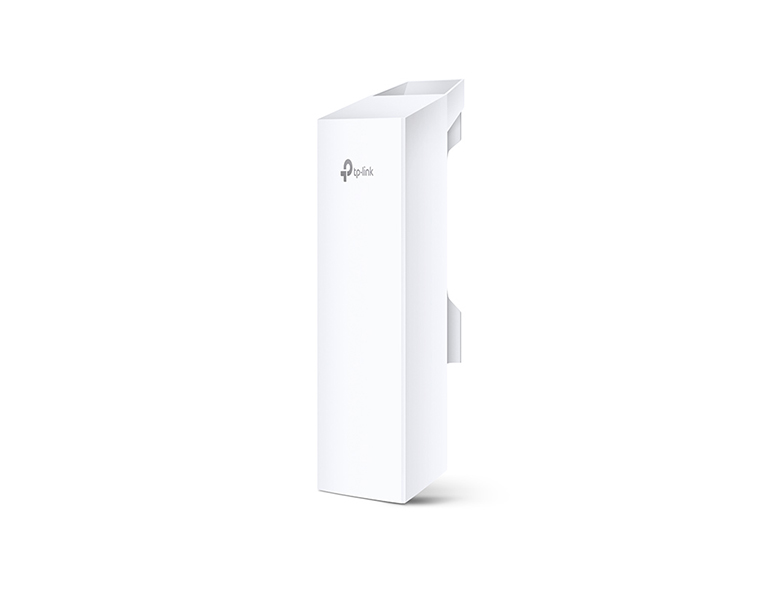

TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.
Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30°C (-22°F) to +70°C (158°F).
Advanced Antenna System
• Built-in High Gain Dual-Polarized Antenna
• Dedicated metal reflector ensures higher gain and lower noise interference
15km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission, covering a range of 15km+ , tested in the field.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE510 uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
CPE510 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
PharOS
User-friendly web-based management system allows professionals to do more specific configurations.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for outdoor use. |
Warranties - Returns: | |
Money Return: | Repair - Replacement: |
20 days | 24 months |
HARDWARE FEATURES | |
Processor | Qualcomm 560MHz CPU, MIPS 74Kc |
Memory | 64MB DDR2 RAM, 8MB Flash |
Interface | 1 10/100Mbps Shielded Ethernet Port (LAN/POE) 1 Grounding Terminal 1 Reset Button |
Power Supply | 24VDC/0.5A Passive PoE (+4,5pins; -7,8pins) |
Dimensions(WxDxH) | 224 x 79 x 60 mm |
Protection | 15KV ESD Protection 6KV Lightning Protection |
Enclosure | Material: Outdoor ASA stabilized plastic Weatherproof: IPX5 water and dust proof design |
WIRELESS FEATURES | |
Wireless Standards | IEEE 802.11a/n |
Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
Wireless Speeds | Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic) |
Frequency | 5.15~5.85GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. |
Maximum Transmit Power | 25dBm (Adjustable power by 1dBm) |
OTHERS | |
Certification | CE, FCC, RoHS, IPX5 |
Package Contents | Outdoor CPE 24V 0.5A Passive PoE Adapter Pole Mounting Straps AC Power Cord Quick Installation Guide |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. |
Environment | Operating Temperature: -40°C~70°C (-40°F~158°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
