• BE3600 Dual-Band Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).^†• 1× 2.5G port unlocks the full potential of Wi-Fi 7.
• 160 MHz bandwidth enables many more simultaneous transmissions.^‡• Multi-RUs ensure the high performance of your network.^‡• Advanced Functions: Centralized management, Mesh, and Seamless Roaming.^△

Optimized Wired Performance with 2.5G PoE + Port
With a 2.5 Gigabit Ethernet Port, EAP723 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3at PoE is ideal for flexible deployment.

^†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 160 MHz bandwidth is only available on the 5GHz band. It may be unavailable in some regions/countries due to regulatory restrictions. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
^‡Use of Wi-Fi 7 (802.11be) and features including 160 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA and MU-MIMO requires clients to also support the corresponding features.
^**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
^***Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
^△Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada SDN controller. Please refer to the User Guides of Omada SDN controllers for configuration methods.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	60 months

HARDWARE FEATURES
Main design
LAN Interfaces	1x 2.5Gbps Ethernet Port
Wi-Fi Standards	IEEE 802.11 a/b/g/n/ac/ax/be
Maximum Data Rate	688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)
Wireless Client Capacity	2.4 GHz: 128 5 GHz: 128
Antennas	2.4 GHz: 2x 4 dBi 5 GHz: 2x 5 dBi
Bluetooth	1 × 3dBi, Bluetooth 5.2
Transmit Power	CE: < 20 dBm (2.4 GHz, EIRP); < 23 dBm (5 GHz, band 1&band 2, EIRP); < 28 dBm (5 GHz, band 3, EIRP) FCC: <25dBm (2.4 GHz); <25dBm (5 GHz Band1&Band4); <24dBm (5 GHz Band2&Band3)
Reception Sensitivity	2.4 GHz: 11ax HE20MCS0:-96dBm; 11ax HE20MCS11:-66.5dBm 11ax HE40MCS0:-93dBm; 11ax HE40MCS11:-64dBm 5 GHz: 11be EHT20MCS0:-95.5dBm; 11be EHTMCS13:-65dBm 11be EHT40MCS0:-93dBm; 11be EHT40MCS13:-62dBm 11be EHT80MCS0:-90dBm; 11be EHT80MCS13:-59dBm 11be EHT160MCS0:-87dBm; 11be EHT160MCS13:-57dBm
Centralized Management
Omada Software Controller	Yes
Omada Hardware Controller	Yes
Omada APP	Yes
Security
Captive Portal Authentication	Yes
Access Control	Yes
Maximum number of MAC Filter	4000
Wireless Isolation between Clients	Yes
VLAN	Yes
Rogue AP Detection	Yes
Wireless Encryption	WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Wireless Function
Multiple SSIDs	16 (8 on each band)
Channel	2.4 GHz: 1~13; 5 GHz: 36~140
Enable/Disable Wireless Radio	Yes
Enable/Disable SSID Broadcast	Yes
Guest Network	Yes
Automatic Channel Assignment	Yes
Transmit Power Control	Adjust transmit Power on dBm
QoS (WMM)	Yes
Seamless Roaming	Yes
Mesh	Yes
Beamforming	Yes
MU-MIMO	2*2 (5 GHz) DL/UL MU-MIMO
MIMO	2*2 (2.4 GHz/5 GHz) MIMO
OFDMA	DL/UL OFDMA
Rate Limit	Based on SSID/Client
Load Balance	Yes
Airtime Fairness	Yes
Band Steering	Yes
RADIUS Accounting	Yes
MAC Authentication	Yes
Reboot Schedule	Yes
Wireless Schedule	Yes
Wireless Statistics	Yes
Static IP/Dynamic IP	Yes
Support Data Rates
802.11be	2.4 GHz Band: 8Mbps to 688Mbps(MCS0-MCS13,NSS=1 to 2 BE20/40) 5 GHz Band: EU: 8Mbps to 2882Mbps(MCS0—MCS13,NSS=1 to 2 EHT20/40/80/160)
802.11ax	2.4 GHz Band: 8Mbps to 574Mbps(MCS0—MCS11,NSS=1 to 2 HE20/40 5 GHz Band: 8Mbps to 2402Mbps(MCS0—MCS11, NSS=1 to 2 HE20/40/80/160)
802.11ac	6.5Mbps to 2166.7Mbps(MCS0—MCS11,NSS=1 to 2 VHT20/40/80/160)
802.11n	6.5 Mbps to 300 Mbps(MSC0-MCS15, HT20/40)
802.11g	6, 9, 12, 18, 24, 36, 48 ,54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11a	6, 9, 12, 18, 24, 36, 48 ,54 Mbps
Management
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
Web-based Management	Yes
SNMP	v1, v2c, v3
SSH	Yes
Restore & Backup	Yes
Firmware update via Web	Yes
NTP	Yes
System Log	Yes
Email Alerts	Yes
OTHERS
Power Supply	802.3at PoE or 12V/1.5A DC Power Adapter Is Not Included
Maximum Power Consumption	18.6W (For PoE); 16.0W (For DC)
Reset	Yes

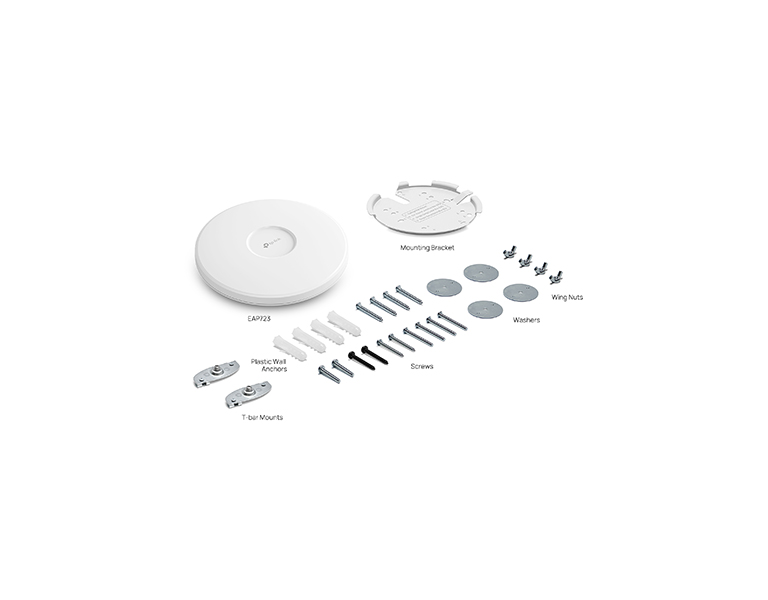

Mounting	Ceiling / Wall mouting (Kits included)
Certifications	CE, FCC, RoHS, IC
Dimensions (W x D x H)	160 x 160 x 36.7 mm
Net Weight	412g
Enclosure Material / Rack Material	Top cover: PC Bottom shell: aluminum alloy Mounting rack: stainless stee
Lightning Protection	4KV
Environment	Operating Temperature: 0 °C–40 °C Storage Temperature: -40 °C–70 °C Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing
