CAUTION!!! Package does not include micro usb adapter!!!

Ubiquiti Networks introduces the airCube™, a cost-effective wireless access point for use in your customer deployments.

Wireless Performance
Two models are available:
• airCube AC Dual-band, 802.11ac, 2x2 MIMO technology for maximum wireless performance:
- 2.4 GHz radio band Speeds of up to 300 Mbps
- 5 GHz radio band Speeds of up to 866.7 Mbps
• airCube ISP 802.11n, 2x2 MIMO Wi-Fi for speeds of up to 300 Mbps in the 2.4 GHz radio band

Versatile Power Options
Both models offer convenient PoE passthrough to power a 24V airMAX CPE device, so you can use a single PoE adapter to power both devices.
To provide sufficient power for PoE passthrough:
• The airCube ISP requires 24V, 1A PoE input or a 2A Micro USB adapter (not included).

Intuitive Software
Management options feature a graphical user interface designed for streamlined setup and control.
Available options include:
• UMobile App Supports quick setup and status information.
• Web UI Enables a standalone utility for basic configuration.
• UNMS Provides advanced remote control of Ubiquiti^® devices.

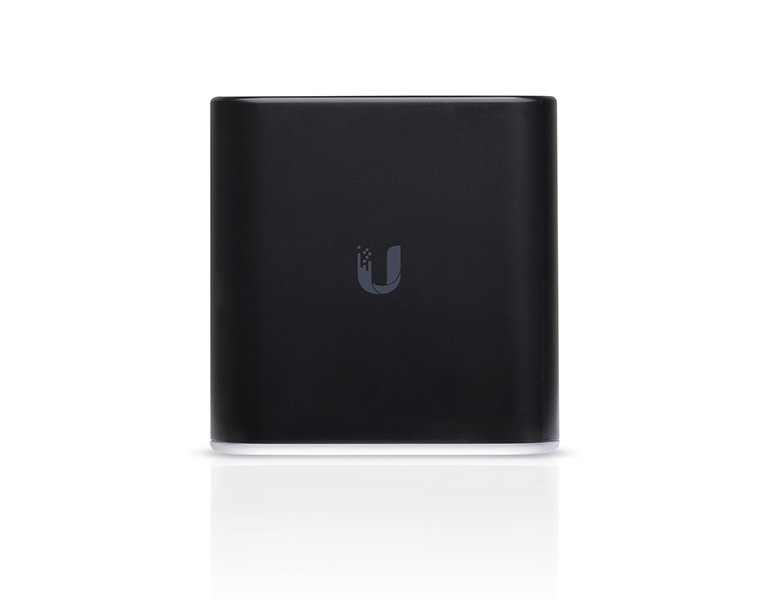

airCube-ISP
• (4) 10/100 Fast Ethernet Ports
• 24V PoE Passthrough for airMAX CPE
• 802.11n, 2x2 MIMO Technology
• Up to 300 Mbps in the 2.4 GHz Radio Band
• Powered by 24V Passive PoE or 2A Micro USB Adapter (Not Included)

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Specifications
Dimensions	87.80 x 89.50 x 89.25 mm
Weight	215 g
Power Supply	5V
Power Method	PoE 24V In on LAN Port 1 or 2A Micro USB Adapter (Not Included)
Supported Power Voltage	4.95-5.05V
Max. Power Consumption	5W
PoE Out	Controllable 24V PoE Out (+4, 5; -7, 8) on WAN Port
Management Interface	Wi-Fi / Ethernet
Networking Interface	(4) 10/100 Fast Ethernet Ports
LED	Status
Max. TX Power	22 dBm
Antenna Gain	2.4 GHz: 4 dBi
Max. Speeds	2.4 GHz: 300 Mbps
Enclosure Characteristics	Black Plastic
ESD/EMP Protection	±24 kV RJ-45 Interface
Operating Temperature	-10 to 50° C (-14 to 122° F)
Operating Humidity	5 to 95% Noncondensing
Certifications	CE, FCC, IC
