Ubiquiti LAP-GPS, Outdoor, 5GHz AC, 17 dBi, 90°

Product Code:
LAP-GPS
Manufacturer Ubiquiti
Sales price: 122,00 €(Includes 24% VAT)
Sales price without TAX:98,39 €
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
Ubiquiti LAP-GPS, Outdoor, 5GHz AC, 17 dBi, 90° integrated sector antenna, AirMAX AC

Introducing the airMAX® LiteAP™ AC, the latest high-performance access point with disruptive pricing from Ubiquiti Networks. Featuring an ultra-lightweight form factor, the LiteAP AC was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. Each of these models operates in the worldwide, license-free 5 GHz frequency range with high-performance speeds.
The LiteAP AC combines proprietary hardware and software technologies to deliver its breakthrough combination of throughput and range with cost-effective value.

Software
airOS 8
airOS® v8 is the revolutionary operating system for Ubiquiti® airMAX ac products.

Powerful Wireless Features
• Access Point PtMP airMAX Mixed Mode
• airMAX ac Protocol Support
• Long-Range Point-to-Point (PtP) Link Mode
• Selectable Channel Width
- PtP: 10/20/30/40/50/60/80 MHz
- PtMP: 10/20/30/40 MHz
• Automatic Channel Selection
• Transmit Power Control: Automatic/Manual
• Automatic Distance Selection (ACK Timing)
• Strongest WPA2 Security

Usability Enhancements
• airMagic® Channel Selection Tool
• Redesigned User Interface
• Dynamic Configuration Changes
• Instant Input Validation
• HTML5 Technology
• Optimization for Mobile Devices
• Detailed Device Statistics
• Comprehensive Array of Diagnostic Tools, including RF Diagnostics and airView® Spectrum Analyzer

Hardware
The LiteAP AC delivers up to 450+ Mbps real TCP/IP throughput and features an efficient form factor.

Quick Installation Minimal fasteners simplify installation. No tools are needed; only a single wrench is required for pole-mounting.

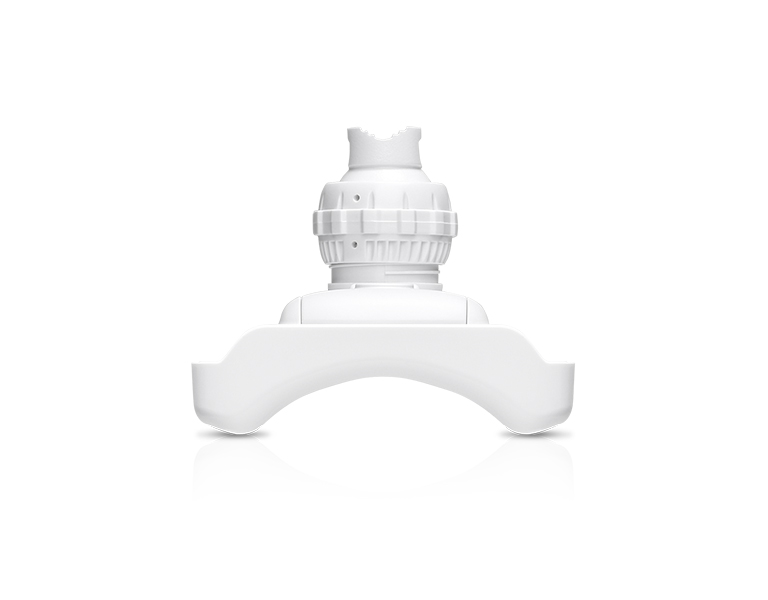

Versatile Mounting The ball-joint mount of the LiteAP AC provides adjustment flexibility for versatile mounting options.
Efficient Design The LiteAP AC features a lightweight antenna with an integrated radio in a sleek design.
Gigabit Ethernet The LiteAP AC delivers high throughput over its wired connection.

GPS Sync Support
Precise GPS frame synchronization enables co-located LAP-GPS devices to transmit and receive data without interfering with each other, allowing for better frequency reuse and increased network stability.

Mobile App Support
The LAP-GPS integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Accessing airOS via Wi-Fi
The Ubiquiti Network Management System (UNMS™) app provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store® (iOS) or Google Play™ (Android™). UNMS allows you to set up, configure, and manage your device, and offers various configuration options once you're connected or logged in.


Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.



Warranties - Returns:
Money Return: Repair - Replacement:
20 days 24 months
Specifications
Dimensions
(Mount Not Included)
360.98 x 124.57 x 71.28 mm
Weight(No Mount) 752 g
Mounting Kit Pole Mounting Kit (Included)
Networking Interface (1) 10/100/1000 Ethernet Port
Memory DDR2 64 MB
Max. Power Consumption 7.1W
Max. TX Power 25 dBm
Antenna Gain 17 dBi
Power Supply 24V, 0.3A PoE Adapter (Included)
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Processor Specs Atheros MIPS 74Kc, 533 MHz
Shock and Vibration ETSI300-019-1.4
ETSI Specification EN 302 326 DN2
ESD/EMP Protection ± 24 kV Contact / Air
RoHS Compliance Yes
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certifications FCC, IC, CE
Operating Frequency (MHz) 5150 - 5875
Management Radio (MHz) 2412 - 2472
