• 11N speed allows for the best HD video streaming and internet calling experience
• Dual external antennas deliver enhanced reception and transmission performance
• Easy one-touch wireless security encryption with the Quick Security Setup button
• 1.5 meter USB cable enables convenient, flexible deployment
• Supports Windows 11/10/8.1/8/7/XP, Mac OS 10.15 and earlier, Linux

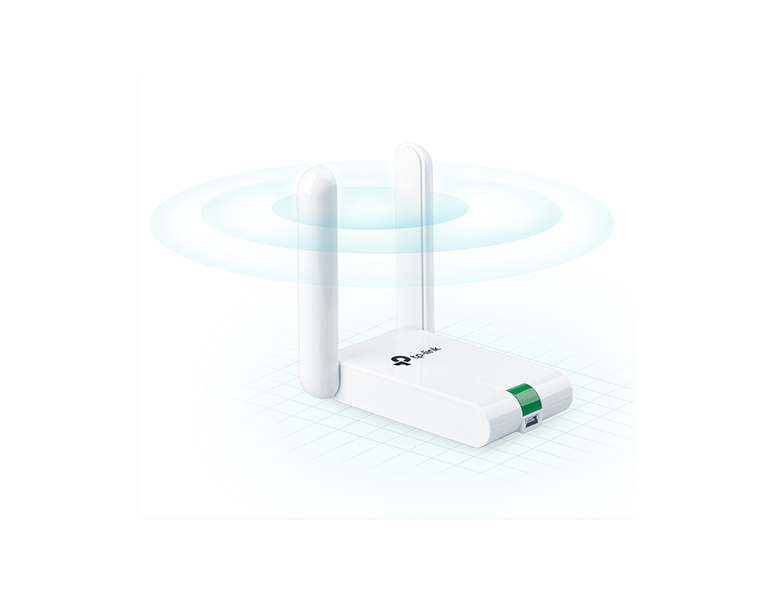

Stronger Coverage with High-Gain External Antennas
The TL-WN822N has two high-gain external antennas to insure stronger signal transmission and reception, which helps you to access a stable Wi-Fi connection across your home, even when your router is on a different floor.

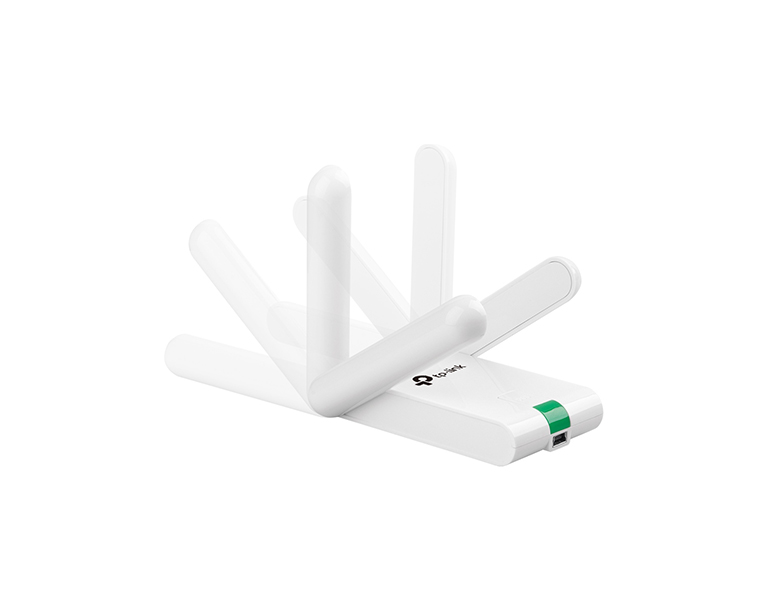

Easy Use with a Friendly Design

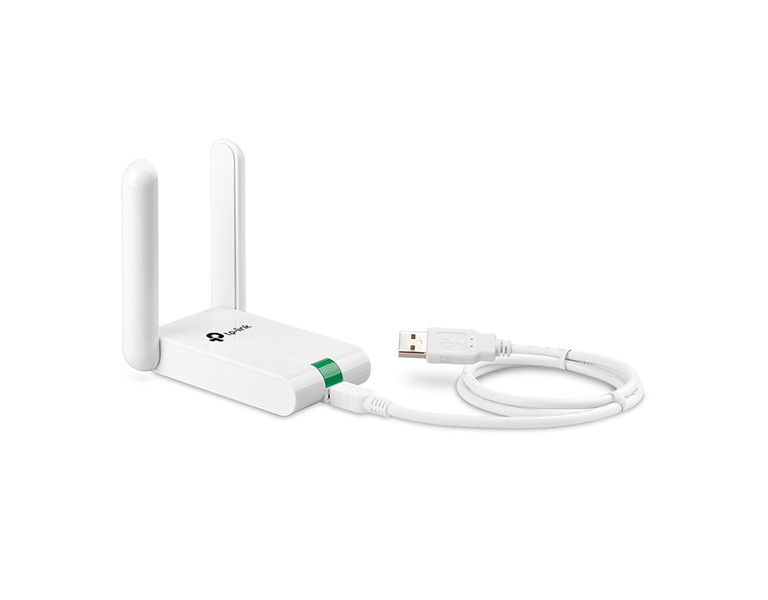

The desktop-style design is beneficial for the signal reception in various application environments. TL-WN822N also provides 1.5m USB extension cable, which is convenient for your installation, even for the desktop equipment.

Operating System
Supports Windows, Mac OS, Linux.

WPS
Easy wireless security encryption at a push of the WPS button.

Easy Setup
A friendly user interface on a CD for simple installation.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	36 months

HARDWARE FEATURES
Interface	Mini USB 2.0
Button	WPS Push Button/Software
Dimensions (WxDxH)	90 x 68 x 16.8mm
Antenna Type	Dual Omni Directional
Antenna Gain	3dBi
WIRELESS FEATURES
Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency	2.400-2.4835GHz
Signal Rate	11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
Reception Sensitivity	270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER
Transmit Power	<20dBm(EIRP)
Wireless Modes	Ad-Hoc / Infrastructure mode
Wireless Security	Support 64/128 bit WEP, WPA-PSK/WPA2-PSK
Modulation Technology	DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
Advanced Functions	WMM
OTHERS
Certification	CE, FCC, RoHS
Package Contents	Wireless Adapter TL-WN822N Quick Installation Guide Resource CD 1.5m USB Cable
System Requirements	Windows 11/10/8.1/8/7， Mac OS 10.15 and earlier， Linux
Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
