• Super-Fast 1.8 Gbps Wi-Fi – Enjoy smooth 4K streaming and downloading with super-fast Wi-Fi speeds of 1.8 Gbps.†
• Connect More Devices – Communicates with more devices using OFDMA while simultaneously reducing lag.‡
• Broader Coverage – Improved algorithm, beamforming, and high-performance antennas enhance the Wi-Fi coverage performance.§
• Next-Gen Platform – The Next-Gen High-Efficiency Chipset provides fast and stable Wi-Fi while saving power consumption.△
• Parental Controls – Enjoy the most versatile yet free parental controls features among all routers, including URL blocking, profile management, pausing, and more.
• Works with Most ISPs – Compatible with most ISPs with extra L2TP/PPTP support. IPTV support works with your existing TV over the Internet contract.
• OneMesh – Use with OneMesh extenders to get whole-home coverage and enjoy smooth roaming between signals.
• Easy Setup – Set up your router in minutes with the powerful TP-Link Tether App.
• Backward Compatible – Supports all previous 802.11 standards Wi-Fi devices.

Explore the New Era of WiFi

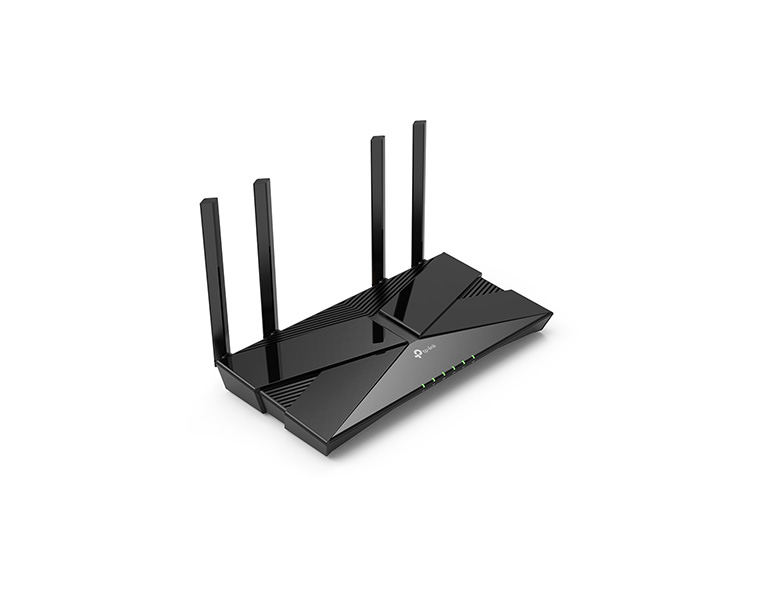

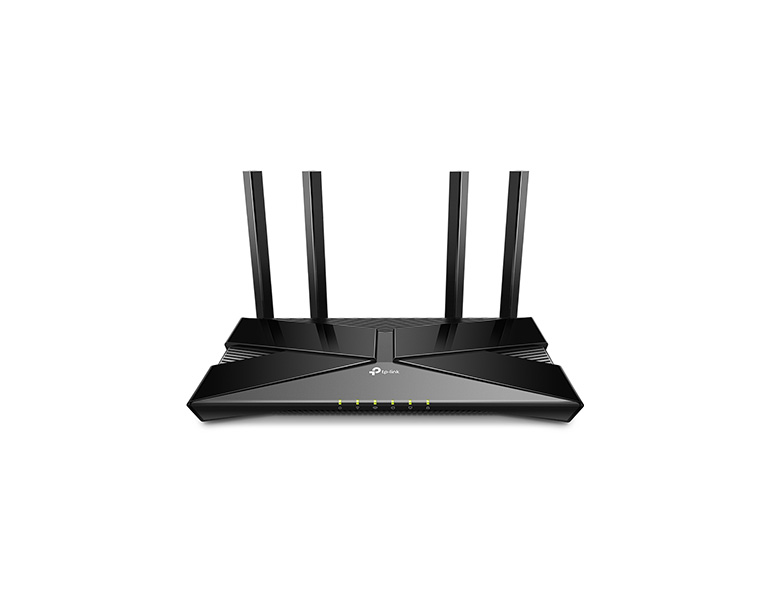

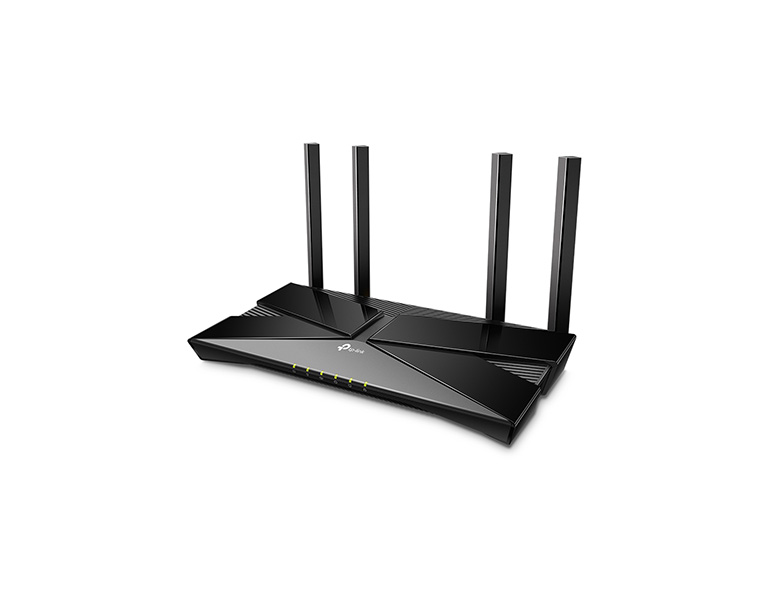

AX1800 Dual-Band Wi-Fi 6 Router

WiFi 6 Upgrades Everything

The latest generation of WiFi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.

Super-Fast WiFi 6

Transfer HD movies in 10 seconds. WiFi 6's 1024-QAM improves encoding efficiency by 25% while the improved symbol rate boosts data rate by 11%. Enjoy broader bandwidth while streaming content on multiple devices.†

Connect More, Stay Fast

Enjoy smooth gaming, video streaming, and live feeds simultaneously. OFDMA strengthens your WiFi by allowing multiple clients to share one band at the same time, cutting latency and jitter.§

WiFi Coverage Throughout Your Home

4× high-performance external antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates wireless signal strength towards them, especially for those in previously hard-to-reach areas.

TP-Link OneMesh Flexibly Create Whole Home WiFi

Want to build a whole-home WiFi? Archer AX23 supports OneMesh to form seamless coverage throughout your home, preventing drops and lag when moving between signals.

WPA3—The Next Level of Cybersecurity

The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home WiFi.*

Universal ISP Support

Europe has the most diverse connection types, and TP-Link knows this. Archer AX23 works with all European ISPs by supporting most authentication methods, including the popular L2TP and PPTP methods in your region.

Easy Setup and Use

Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer AX23 in minutes. The Tether app allows you to manage network settings from any Android or iOS device.

Protect Your Children

Block inappropriate content for your children, and customize a time range for better online habits.

New Connection Notification

You will be notified by your phone when new devices connect. Kick off any suspicious connections and block them. It’s as simple as that.

Easy Firmware Upgrade

Tired of upgrading firmware? OTA updates enable easy firmware upgrades with a click in the management panel. To keep your security and functions always up-to-date, just turn on the auto schedule.

^†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage and number of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
^‡Use of 802.11ax (Wi-Fi 6), and features including OFDMA and 1024-QAM requires clients to also support corresponding features.
^§The 802.11ax white paper defines standardized modifications to both the IEEE 802.11 physical layers (PHY) and the IEEE 802.11 Medium Access Control (MAC) layer as enabling at least one mode of operation capable of supporting the improvement of at least four times the average throughput per station (measured at the MAC data service access point) in a dense deployment scenario.
^△Saving clients' battery power requires clients to also support the 802.11ax Wi-Fi standard. Actual power reduction may vary as a result of network conditions, client limitations, and environmental factors.
*Use of WPA3 requires clients to also support WPA3.
**This router may not support all the mandatory features as ratified in the IEEE 802.11AX specification.
***Further software upgrades for feature availability may be required.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	36 months

HARDWARE
Processor	Dual Core CPU

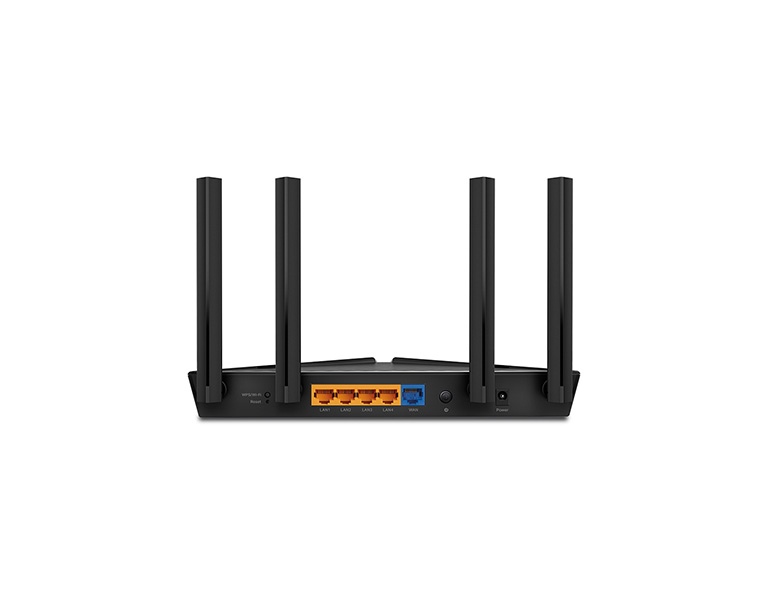

Ethernet Ports	1x Gigabit WAN Port, 4x Gigabit LAN Ports
Buttons	WPS/Wi-Fi Button, Reset Button, Power On/Off Button
Power	12 V/1 A
WIRELESS
Standards	IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds	5 GHz: 1201 Mbps (802.11ax), 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range	4 High-Performance Antennas, Beamforming
WiFi Capacity	Dual-Band, OFDMA, Airtime Fairness, 4 Streams
Working Modes	Router Mode, Access Point Mode
SECURITY
WiFi Encryption	WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)
Network Security	SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
Guest Network	1x 5 GHz Guest Network, 1x 2.4 GHz Guest Network
VPN Server	OpenVPN, PPTP
SOFTWARE
Protocols	IPv4, IPv6
OneMesh	Supported
Parental Controls	URL Filtering, Time Controls
WAN Types	Dynamic IP, Static IP, PPPoE, PPTP, L2TP
Quality of Service	QoS by Device
Cloud Service	Auto Firmware Upgrade, TP-Link ID, DDNS
NAT Forwarding	Port Forwarding, Port Triggering, DMZ, UPnP, Virtual Server
DDNS	TP-Link, NO-IP, DynDNS
PHYSICAL
Dimensions (WxDxH)	260.2 x 135 x 41.6 mm
Package Contents	Wi-Fi Router Archer AX23 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
OTHER
Certification	FCC, CE, RoHS
System Requirements	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access)
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing
TEST DATA
WiFi Transmission Power	CE: <20dBm{2.4GHz} <23dBm{5.15GHz~5.35GHz} <30dBm{5.47GHz~5.725GHz}
WiFi Reception Sensitivity	2.4GHz: 11g 6Mbps: -96 dBm, 11a 54Mbps: -75 dBm, 11ac VHT20_MCS0: -95 dBm, 11ac VHT20_MCS8: -72 dBm, 11ac VHT40_MCS0: -92 dBm, 11ac VHT40_MCS9: -67 dBm, 11ax HE20_MCS0: -95 dBm, 11ax HE20_MCS11: -65 dBm, 11ax HE40_MCS0: -92 dBm, 11ax HE40_MCS11: -62 dBm 5GHz: 11a 6Mbps: -94 dBm, 11a 54Mbps: -73 dBm, 11ac VHT20_MCS0: -93 dBm, 11ac VHT20_MCS8: -69 dBm, 11ac VHT40_MCS0: -90 dBm, 11ac VHT40_MCS9: -65 dBm, 11ac VHT80_MCS0: -86 dBm, 11ac VHT40_MCS9: -61 dBm, 11ax HE20_MCS0: -93 dBm, 11ax HE20_MCS11: -63 dBm, 11ax HE40_MCS0: -91 dBm, 11ax HE40_MCS11: -60 dBm, 11ax HE80_MCS0: -87 dBm, 11ax HE80_MCS11: -57 dBm
