• 300 Mbps Wi-Fi speed is ideal for daily tasks including browsing, emailing, and video streaming
• IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
• Guest Network provides separate access for guests while securing the host network
• Parental Controls manage when and how connected devices can access the internet
• SPI firewall and wireless encryption protect your home network
• Compatible with IPv6 (Internet Protocol version 6)

High-Speed Wi-Fi
Enjoy web browsing, HD streaming, and downloading with your family. 300 Mbps wireless speeds on the 2.4 GHz band meet your daily needs.

Strong Signal, Great Coverage
Two powerful 5 dBi antennas and 2x2 MIMO enhance wireless transmission to deliver broader wireless coverage with stronger signal intensity.

Versatile Management
Easily manage your home network with versatile built-in tools, including Parental Controls, Guest Network, QoS, and more.

Smooth Video Streaming
IGMP Proxy/Snooping, Bridge, and Tag VLAN support optimizes IPTV streaming so you can enjoy your favorite movies and shows lag-free.

IPv6 Compatible
Compatible with the most recent Internet Protocol version (IPv6). Keep your router future-proof and enjoy the IPv6 services provided by your ISP.

Elegant Design
Designed to conserve space and complement virtually any décor while delivering stable Wi-Fi to your home.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	36 months

HARDWARE FEATURES

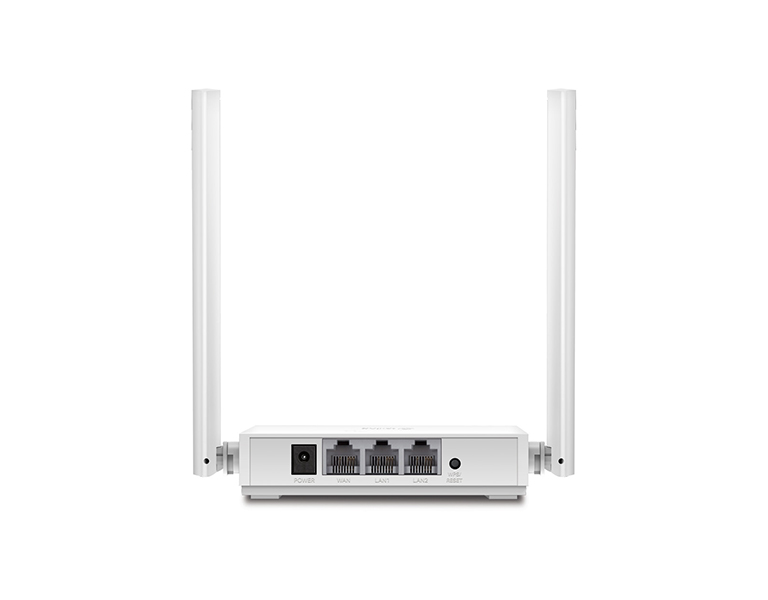

Ethernet Ports	2 10/100Mbps LAN Ports, 1 10/100Mbps WAN Port
Buttons	WPS/Reset Button
Antennas	2 Fixed Omni Directional Antennas
External Power Supply	5VDC / 0.6A
Dimensions(WxDxH)	115 x 106.7 x 24.3 mm
WIRELESS FEATURES
Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency	2.412~2.472GHz
Signal Rate	11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
Reception Sensitivity	270M: -70dBm@10% PER 130M: -74dBm@10% PER 108M: -74dBm@10% PER 54M: -77dBm@10% PER 11M: -87dBm@8% PER 6M: -90dBm@10% PER 1M: -98dBm@8% PER
Wireless Functions	Enable/Disable Wireless Radio, WMM, Wireless Statistics
Wireless Security	WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
SOFTWARE FEATURES
Working Modes	Wireless Router, Range Extender, Access Point, WISP
WAN Type	Dynamic IP, Static IP, PPPoE, PPTP(Dual Access), L2TP(Dual Access)
DHCP	DHCP Server, DHCP Client List, Address Reservation
Quality of Service	WMM, Bandwidth Control
NAT Forwarding	Port Forwarding, Port Triggering, UPnP, DMZ
Dynamic DNS	DynDns, NO-IP
Firewall Security	SPI Firewall, IP and MAC Address Binding
Protocols	IPv4, IPv6
Management	Parental Controls, Access Control, Local Management, Remote Management
Guest Network	2.4GHz Guest Network
OTHERS
Certification	CE, RoHS
Package Contents	Wireless Router TL-WR820N Power Adapter RJ-45 Ethernet Cable Quick Installation Guide
System Requirements	Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Cable or DSL Modem Subscription with an internet service provider (for internet access)
Environment	Operating Temperature: 0°C~40°C (32°F ~104°F) Storage Temperature: -40°C~70°C (-40°F ~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
