Faster, Whole-Home Wi-Fi
AmpliFi Routers and MeshPoints are designed to work in combination to eliminate any dead spots in your home. They utilize mesh technology to provide powerful wireless performance in an innovative and simple design.
With turbocharged 802.11ac Wi-Fi, AmpliFi utilizes multiple self-configuring radios and advanced Wi-Fi antenna technology to bring ubiquitous secure Wi-Fi coverage to any home network. Ensure that your smart TV, wireless security cameras, digital downloads, and streaming devices have the connectivity demanded in today's modern home.

Instant Setup
The intuitive, easy-to-use AmpliFi app allows you to set up your system in mere minutes. It also features configuration options, powerful reporting metrics, parental controls, remote access, and easy guest access. The mobile app is available for download on Android™ and iOS smartphones.

INSTANT WI-FI SYSTEM

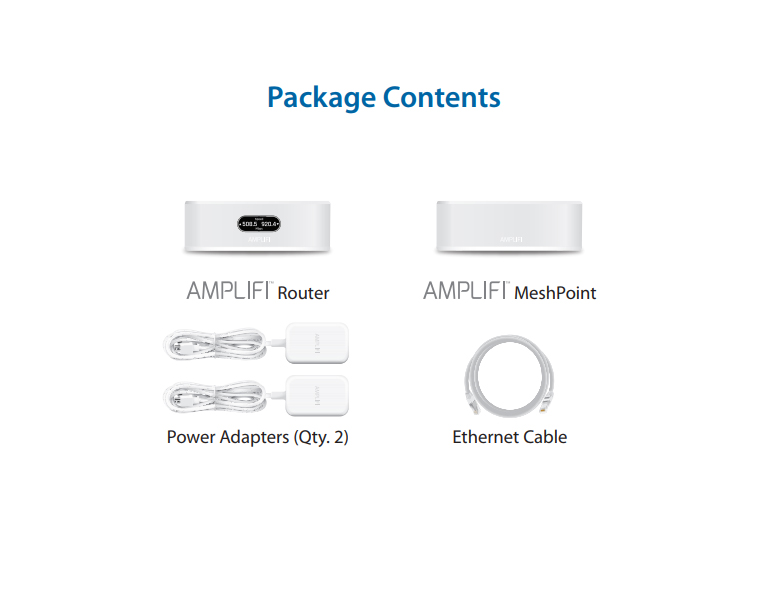

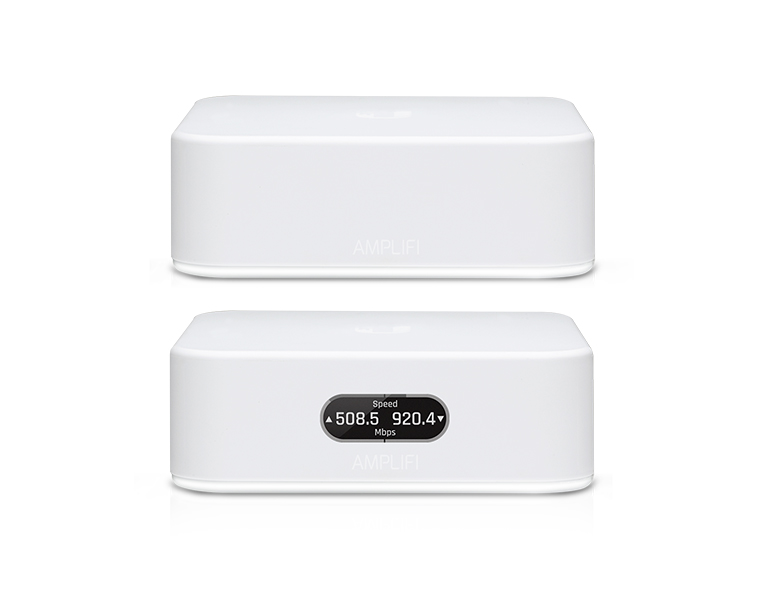

The AmpliFi Instant Wi-Fi System includes a router with an easy-to-use touchscreen display, 1 Gigabit Ethernet port, a WAN port, an Ethernet cable, and one MeshPoint with an Ethernet port to maximize coverage and eliminate dead zones in your home. The AmpliFi Instant Wi-Fi system provides superior coverage with a range of up to 4,000 sq. ft and quick setup for whole home coverage with seamless Wi-Fi.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Specifications
Router
Dimensions	99.5 x 97.8 x 33.05 mm
Weight	215 g
Max. TX Power	22 dBm
MIMO	2.4 GHz: 2x2, 5 GHz: 2x2
Speeds	2.4 GHz: 300 Mbps, 5 GHz: 867 Mbps
Networking Interface	Wi-Fi/Gigabit Ethernet (1) WAN, (1) LAN
Max. Power Consumption	9W
ESD/EMP Protection	± 24kV Air/Contact
Buttons	Reset
Antennas	(1) Dual-Band Antenna, Single-Polarity
Display	30.73 mm (1.21") Diagonal, 160 x 64, 142 ppi, Capacitive Touch, Grayscale
Wi-Fi Standards	802.11ac
Power Save	Supported
Wireless Security	WPA2-PSK AES/TKIP
Operating Temperature	-10 to 55° C
Operating Humidity	5 to 95% Noncondensing
Certifications	FCC, CE, IC
Supported Data Rates
802.11ac	13 Mbps to 866.7 Mbps (MCS0 - MCS9, VHT 20/40/80)
802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
MeshPoint
Dimensions	99.5 x 97.8 x 33.05 mm
Weight	215 g
Max. TX Power	22 dBm
MIMO	2.4 GHz: 2x2, 5 GHz: 2x2
Speeds	2.4 GHz: 300 Mbps, 5 GHz: 867 Mbps
Networking Interface	Wi-Fi/Gigabit Ethernet (1) LAN
Max. Power Consumption	9W
ESD/EMP Protection	± 24kV Air/Contact
Buttons	Reset
Antennas	(1) Dual-Band Antenna, Single-Polarity
Wi-Fi Standards	802.11ac
Power Save	Supported
Wireless Security	WPA2-PSK AES/TKIP
Operating Temperature	-10 to 55° C
Operating Humidity	5 to 95% Noncondensing
Certifications	FCC, CE, IC
Supported Data Rates
802.11ac	13 Mbps to 866.7 Mbps (MCS0 - MCS9, VHT 20/40/80)
802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
