Ubiquiti UX7, UniFi Express 7
Product Code:
UX7
Manufacturer Ubiquiti
Sales price:
265,00 €(Includes 24% VAT)
Sales price without TAX:213,71 €
Product Availability:
Show Shipping Cost:
- Description
- Specifications
- Downloads
- Reviews
Ubiquiti UX7, UniFi Express 7
UniFi Express 7 is a super-compact 10-gigabit UniFi Cloud Gateway with an integrated WiFi 7 AP. For network connectivity, it features (1) 10Gbps WAN port and (1) 2.5Gbps LAN port. The built-in Tri-Band WiFi 7 AP supports the latest 802.11be standard, delivering speeds of up to 5.7 Gbps on the 6 GHz band, 4.3 Gbps on the 5 GHz band, and 688 Mbps on the 2.4 GHz band, with advanced WPA3 encryption. With the pre-installed UniFi Network application, the router enables management of up to 30 UniFi devices. Its compact yet powerful design ensures throughput of up to 2.3 Gbps with active IDS/IPS. The router also supports various VPN types, including site-to-site VPN. Power is supplied via USB-C 5V/5A, and the power adapter is included in the package.
Key Features
• Super-compact design
• High performance – up to 2.3 Gbps throughput with IDS/IPS support
• 10G WAN + 2.5G LAN
• Built-in Tri-Band WiFi 7 AP
• UniFi Network for managing up to 30 UniFi devices
• VPN support, including site-to-site VPN

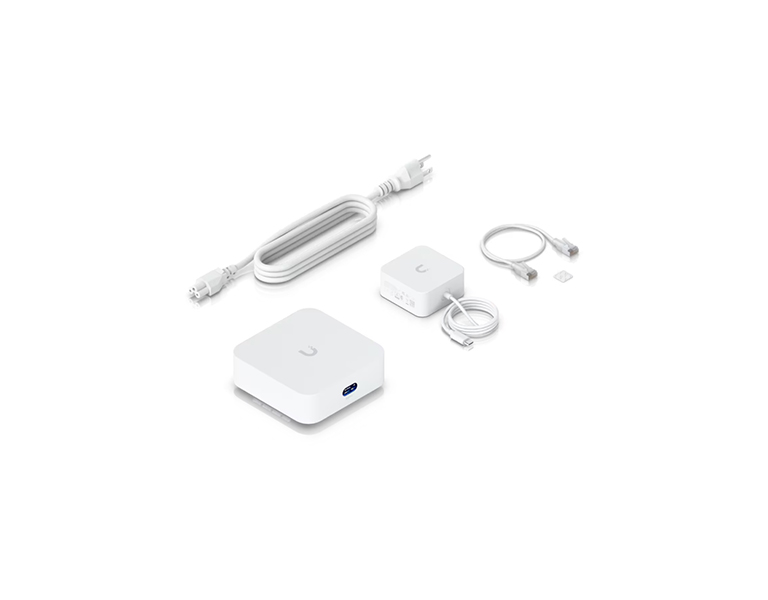

Package Contents
• Device
• Power adapter
• Power cable
• Patch cable
| Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use. |
| Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use. |
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 24 months |
| Overview | |
| Dimensions | 117 x 117 x 42.5 mm |
| UniFi Application Suite | Network |
| Managed UniFi Devices | 30 |
| Simultaneous Users Connected | 300 |
| Default WAN Ports | (1) 10 GbE RJ45 |
| LAN Ports | (1) 2.5 GbE RJ45 |
| IDS/IPS Throughput | 2.3 Gbps |
| Form Factor | Compact desktop |
| Coverage Area | 160 m² |
| Security | |
| Stateful Firewall | Yes |
| Application-Aware Layer 7 Firewall | Yes |
| DPI & Traffic Identification | Yes |
| Zone-Based Firewall Advanced Filtering(Regions, Domains, Apps) | Yes |
| Content Filtering | Yes |
| Intrusion Prevention (IPS/IDS) | Yes |
| Ad Blocking | Yes |
| IDS/IPS Signatures | 20,000+ with CyberSecure |
| VLAN/Subnet-based Traffic Segmentation | Yes |
| VPN & SD-WAN | |
| License-Free SD-WAN | |
| Site-to-Site VPN |
Site Magic
IPsec
OpenVPN
|
| VPN Server |
Identity Endpoint One-Click VPN
Teleport Zero-Configuration VPN
WireGuard
OpenVPN
L2TP |
| VPN Client |
OpenVPN
WireGuard
|
| Networking | |
| Dynamic Routing | OSPF |
| Advanced QoS | Yes |
| Multicast DNS (mDNS) | Yes |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | Yes |
| Integrated RADIUS Server | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Additional Internet Failover with UniFi LTE Backup | Yes |
| Internet Quality and Outage Reporting | Yes |
| Policy-based WAN and VPN Routing | Yes |
| Customizable DHCP Server | Yes |
| IPv6 ISP Support | Yes |
| IGMP Proxy | Yes |
| Integrated WiFi | |
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) |
| Throughput |
6 GHz: 5.7 Gbps
5 GHz: 4.3 Gbps
2.4 GHz: 688 Mbps
|
| MIMO |
6 GHz
2 x 2 (DL/UL MU-MIMO)
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
|
| Antenna Gain |
6 GHz
6 dBi
5 GHz
7 dBi
4 dBi
|
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| Max. BSSIDs | 4 per Radio (Gateway Mode) 4 per Radio (AP Mode) |
| Supported Data Rates |
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
1, 2, 5.5, 11 Mbps
6, 9, 12, 18, 24, 36, 48, 54 Mbps
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
|
| Hardware | |
| Max. Power Consumption | 22W |
| Power Method | USB type C (5V DC/5A) |
| Power Supply | USB type C (5V DC/5A) (Adapter included) |
| Max. TX Power |
6 GHz
24 dBm
26 dBm
23 dBm
|
| Supported Voltage Range | 100-240V AC |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 3 GB |
| Weight | 422 g |
| Enclosure Material | Polycarbonate |
| LCM Display | 0.96" status display |
| Management | Ethernet Bluetooth |
| LEDs | Ethernet |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | -10 to 40° C |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Button | (1) Factory-reset |
| Software | |
| VLAN | 802.1Q |
| Guest Traffic Isolation | Yes |
| Application Requirements | |
| UniFi Network | Version 9.0.108 and later |
