• Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
• Access, storage or forwarding at 256 Mbps (180 Mbps when AI function enabled)
• Max. decoding capability: 16 × 1080p@30 fps. Supports adaptive decoding
• AI by NVR: 1-channel face detection and recognition, 2-channel perimeter protection, up to 10 face databases and 20,000 face images, 4-channel SMD Plus
• AI by Camera: Face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis, heat map.
• Connected to the third-party network cameras
• Security baseline 2.3

Series Overview

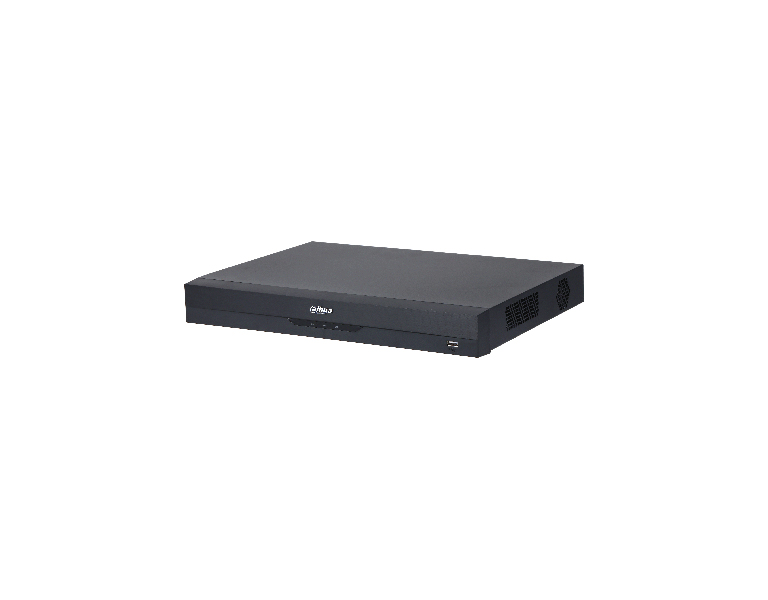

NVR4000-EI series is a new generation of network recorders that offers powerful decoding capabilities, and strong bandwidth. It features high-precision face recognition, perimeter protection, and SMD (Smart Motion Detection), which can distinguish target vehicles and humans from other types in real time. When connected with select IPC cameras, Quick Pick technology becomes available, allowing human and vehicle targets to be easily searched for and picked out. This network recorder is not only cost-effective, but also compatible with a wide variety of third-party devices, making it a great choice for small and medium-sized businesses.

Functions
Face Detection
Face detection is to detect if there is any human face appearing in the video. This technology adopts a deep learning algorithm to support face detection, tracking, optimization and capturing, and then output the best face snapshot.

Face Recognition
Dahua Face Recognition technology extracts the features of captured faces and compares them with those in face database to recognize the person identity.

Perimeter Protection
Automatically filtering out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to perform secondary recognition for the targets. Improving alarm accuracy.

SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.

AI Search
Support AI seach by metadata of different targets or uploading face pictures to device and comparing them with recorded faces by similarity. Enable operators to quickly and easily search through multi channels and long duration, efficiently find out when and where a person of interest appeard.

Heat Map by Camera
Dahua heat map technology is used to display the crowd density and people appearance probability. Export and display the crowd status by different colors. Generally, the crowd status is the statistics of people quantity in space and time dimensions.

Quick Pick
Dahua Quick Pick technology can enable users to quickly pick up the human/vehicle targets that they are interested in, which facilitates retrieval from SMD events.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	36 months

SPECIFICATIONS
System
Main Processor	Industrial-grade processor
OS	Embedded Linux
Operating Interface	Web, local GUI
AI
AI by Recorder	Face detection, face recognition, perimeter protection, and SMD Plus
AI by Camera	Face detection, face recognition, perimeter protection, SMD Plus, people counting, stereo analysis, heat map
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels)	2 channels, 10 IVS rules for each channel
Perimeter Performance of AI by Camera (Number of Channels)	8 channels
Face Detection
Face Detection Performance of AI by Recorder (Number of Channels)	1 channel (up to 12 face images/s each channel)
Face Attributes	Gender, age group, glasses, expressions, face mask, beard
Face Detection Performance of AI by Camera (Number of Channels)	8 channels
Face Recognition
Face Database Capacity	Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
Face Recognition Performance of AI by Recorder (Number of Channels)	8-channel FD (by camera) + FR (by recorder),image stream: 12 face images/s 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
Face Recognition Performance of AI by Camera (Number of Channels)	8 channels
SMD Plus
SMD Plus by Camera	8 channels
SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Access Channel	8 channels
Network Bandwidth	AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing
Resolution	16 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 960p, 720p, D1, CIF
Decoding Capability	AI disabled: 2-channel 16 MP@30 fps, 2-channel 12 MP@30 fps, 4-channel 8 MP@30 fps, 6-channel 5 MP@30 fps, 8-channel 4 MP@30 fps AI enabled: 1-channel 16 MP@30 fps, 2-channel 12 MP@30 fps, 3-channel 8 MP@30 fps, 4-channel 5 MP@30 fps, 6-channel 4 MP@30 fps, 8-channel 1080p@30 fps
Video Output	1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.
Multi-screen Display	1st Screen: 1/4/8/9 2nd Screen: 1/4/8/9
Third-party Camera Access	Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon
Compression Standard
Video Compression	Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
Audio Compression	G.711a/G.711u/PCM/G726
Network
Network Protocol	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.), P2P, auto register
Mobile Phone Access	IOS, Android
Interoperability	ONVIF 22.06(Profile T, Profile S, Profile G), CGI, SDK
Browser	Chrome, IE9 and later, Firefox
Recording Playback
Multi-channel Playback	Up to 8 channels
Record Mode	General, motion detection, intelligent, alarm
Backup Method	USB device and network
Playback Mode	Instant playback, general playback, event playback, tag playback, smart playback
Storage
Disk Group	Yes
Alarm
General Alarm	Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm
Anomaly Alarm	Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception
Intelligent Alarm	Face detection, face recognition, perimeter protection, SMD Plus, people counting, stereo analysis, heat map
Alarm Linkage	Record, snapshot, IPC external alarm output, audio, buzzer, log, preset, email
External Port
Audio Input	1-channel RCA
Audio Output	1-channel RCA
Alarm Input	4 channels
Alarm Output	2 channels
HDD Interface	2 SATA ports, up to 16 TB.The maximum HDD capacity varies with environment temperature.
USB	2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI	1
VGA	1
Network	1 (10/100/1000 Mbps Ethernet port, RJ-45)
General
Power Supply	12 VDC, 4 A
Power Consumption	<10 W (without HDD)
Net Weight	1.51 kg
Gross Weight	2.76 kg
Product Dimensions	375 mm × 284.3 mm × 53 mm (W × L × H)
Packaging Dimensions	433 mm × 141 mm × 366 mm (W × L × H)
Operating Temperature	–10 °C to +55 °C
Storage Temperature	–20 °C to +60 °C
Operating Humidity	10%~93%
Installation	Rack or desktop
Certifications	FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020, EN IEC 61000-3- 2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020, EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
