The 10 Gbps Bidirectional Single-mode Optical Module is a simplex transceiver that delivers up to 10 Gbps speed over distances up to 10 kilometers.

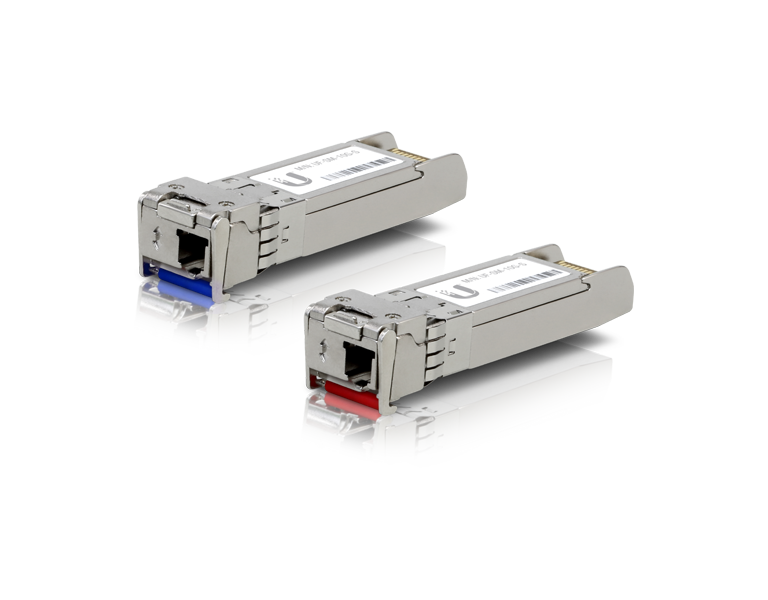

UF-SM-10G-S is set of singlemode 10G SFP+ WDM modules with 1 LC connector. Wave length is 1270/1330nm, this modules are suitable for distance up to 10km. Modules are compatible with all UBNT devices which contain SFP+ ports. Package contains 2 pieces - 1 function pair.
Warranties - Returns: | |
Money Return: | Repair - Replacement: |
20 days | 24 months |
Specifications | |
Supported Media | Single-Mode Fiber |
Connector Type | (1) LC |
BiDi | ✓ |
TX Wavelength | Blue: 1270 nm Red: 1330 nm |
RX Wavelength | Blue: 1330 nm Red: 1270 nm |
Data Rate | 10 Gbps SFP+ |
Cable Distance | 10 km |
Max. Power Consumption | 1W |
Operating Temperature | 0 to 70° C |
Transfer type | WDM |
Compatibility | Universal |
Model Comparison | ||||||
UF-MM-1G | UF-MM-10G | UF-SM-1G-S | UF-SM-10G | UF-SM-10G-S | UF-RJ45-1G | |
Supported Media | Multi-Mode Fiber | Multi-Mode Fiber | Single-Mode Fiber S | Single-Mode Fiber | Single-Mode Fiber | Copper |
Connector Type | (2) LC | (2) LC | (1) LC | (2) LC | (1) LC | RJ45 |
BiDi | ✓ | ✓ | ||||
TX Wavelength | 850 nm | 850 nm | Blue: 1310 nm Yellow: 1550 nm |
1310 nm | Blue: 1270 nm Red: 1330 nm |
|
RX Wavelength | 850 nm | 850 nm | Blue: 1550 nm Yellow: 1310 nm |
1310 nm | Blue: 1330 nm Red: 1270 nm |
|
Data Rate | 1.25 Gbps SFP | 10 Gbps SFP+ | 1.25 Gbps SFP | 10 Gbps SFP+ | 10 Gbps SFP+ | 10/100/1000 Mbps |
Cable Distance | 550 m | 300 m | 3 km | 10 km | 10 km | 100 m |
