Overview
Expand and power your network with the UniFi PoE Switch, part of the Ubiquiti UniFi Enterprise System.

Compact Form Factor
Measuring only 7.9" in depth, the UniFi PoE Switch is designed for convenient installation:
• rackmounted in a SOHO rack cabinet
• placed on a desktop

Fiber Connectivity
SFP ports enable network uplinks of up to 1 Gbps.

Fanless, Silent Cooling
The UniFi PoE Switch features fanless, silent thermal cooling, so it can be located in any workspace.

Switching Performance
The UniFi PoE Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

802.3af/at PoE
PoE support simplifies your network infrastructure and cabling. PoE ports offer 802.3af/at to power your PoE devices, such as UniFi APs and cameras.

Scalable UniFi Network Controller
Management Capabilities
The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organized for a simplified, yet powerful, interface.

Network Overview
From a single pane of glass, view network topology and configuration, real-time statistics, and debugging metrics. Monitor your network’s vitals and make on-the-fly adjustments as needed.

Deep Packet Inspection
Ubiquiti’s proprietary Deep Packet Inspection (DPI) engine includes the latest application identification signatures to track which applications (and IP addresses) are using the most bandwidth.

Detailed Analytics
The UniFi Network Controller provides configurable reporting and analytics to manage large user populations and expedite troubleshooting. Advanced search and sorting capabilities make network management more efficient.

Multi-Site Management
A single controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator accounts.

Switch Configuration
You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:
• Operation mode (switching, mirroring, or aggregate) per port
• Network/VLAN configuration
• Jumbo frame and flow control services
• Network settings
• Storm control setting per port
• Spanning tree configuration
• 802.1X control and RADIUS VLAN
• Debug terminal option for command-line interface

Switch Port Status
You can also view status information for each port:
• Connection speed and duplex mode
• TX/RX data rates
• Network/VLAN setting

Software Features
The UniFi Network Controller software offers the following features:
• Centralized configuration management (including configuration cloning)
• Auto-MDIX automatically adjusts as needed for straight through or crossover cable
• 802.1X (RADIUS) authentication and dynamic VLAN

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Specifications
Dimensions	442.4 x 200 x 43.7 mm
Weight With Brackets	2.80 kg 2.89 kg

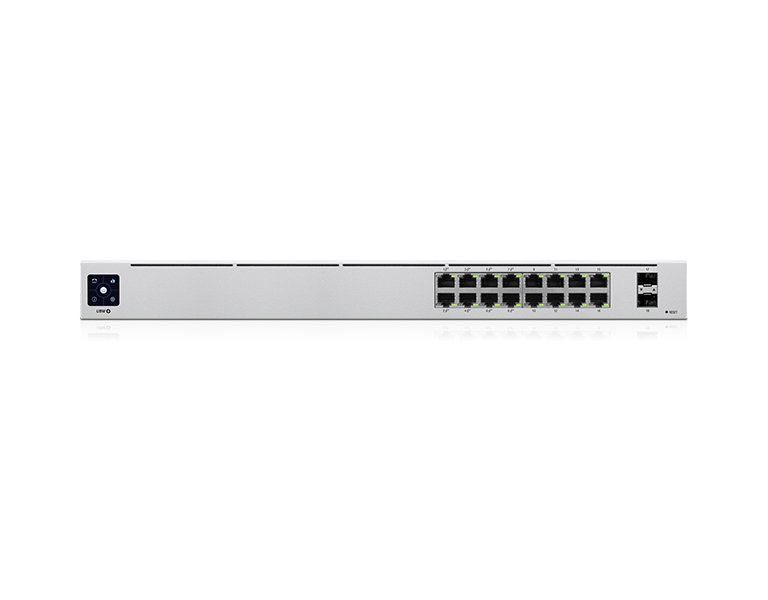

Interfaces Networking Management	(16) 10/100/1000 RJ45 Ports (2) 1G SFP Ethernet Ports Ethernet In-Band
Total Non-Blocking Throughput	18 Gbps
Switching Capacity	36 Gbps
Forwarding Rate	26.78 Mpps

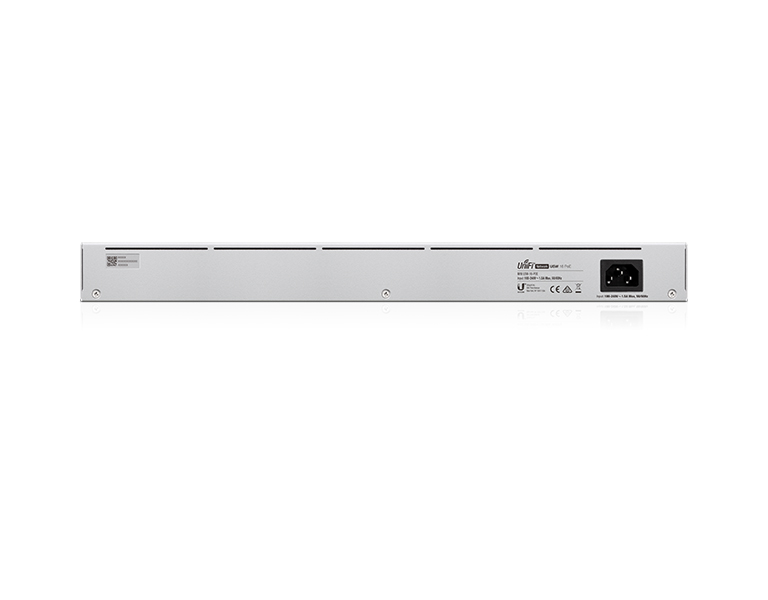

Power Method	100-240VAC, 50/60 Hz, Universal Input
Power Supply	AC/DC, Internal, 60W
Voltage Range	100 to 240VAC
Max Power Consumption (Excluding PoE Output)	18W
LEDs System RJ45 Data Ports SFP Data Ports	Status PoE; Speed/Link/Activity Link/Activity
ESD/EMP Protection	Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration	ETSI300-019-1.4 Standard
Operating Temperature	-5 to 40° C
Operating Humidity	10 - 90% Noncondensing
Certifications	CE, FCC, IC
PoE
Total Available PoE	42W
PoE Interfaces Ports 1-8	POE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-)
Max. PoE Wattage per Port by PSE 802.3at	32W
Voltage Range 802.3af Mode 802.3at Mode	44-57V 50-57V
