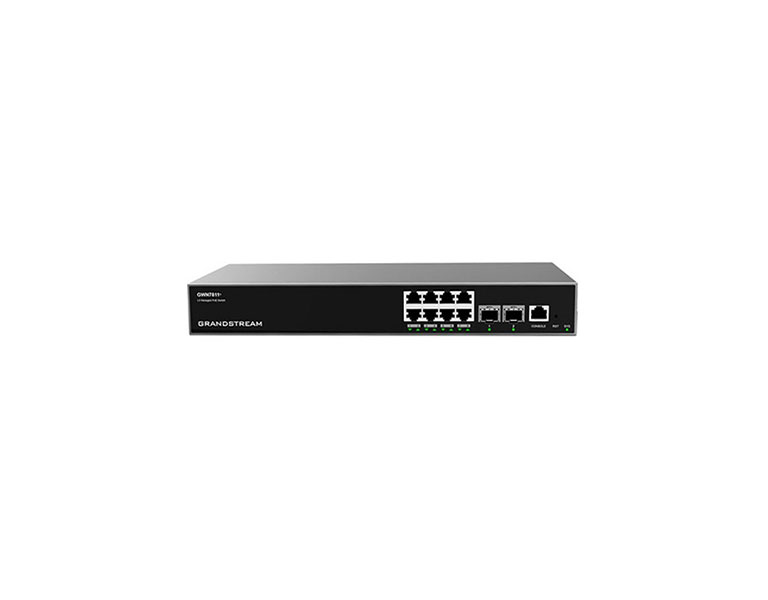

The GWN7811 series are Layer 3 managed network switches that allow medium-to-large enterprises to build scalable, secure, high performance and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The PoE models provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. GWN7811 series can be managed in a number of ways, including the local Web user interface of the GWN7811 series switch and CLI, the command-line interface. The series is also supported by GWN. Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform. The GWN7811 series are the best value enterprise-grade managed network switches for medium-to-large businesses.

Features:

• 8 Gigabit Ethernet ports and 2 10Gigabit SFP+ ports
• Supports deployment in IPv6 and IPv4 networks
• ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
• Embedded controller to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform
• Built-in QoS allows for prioritization of network traffic

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	36 months

Specifications
Network Protocol	IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3af/at/bt, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1x
Gigabit Ethernet Ports	8
10Gigabit SFP+ Ports	2
Maximum no. of Supported Modules	SM-10G: 2 MM-10G: 2 RJ45-10G: 2
Console	1
Link Aggregation	5
Auxiliary Ports	1x Reset Pinhole
Forwarding Mode	Store-and-forward
Total non-blocking throughput	28Gbps
Switching Capability	56Gbps
Forwarding Rate	41.644Mpps
Packet Buffer	12MB
Network Latency	<4µs
Switching	• 16K static, dynamic and filtering MAC addresses • 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN • VLAN virtual interface • GVRP (pending) • Spanning tree, 32 instances for STP/RSTP/MSTP
Routing	• Static routing • Dynamic routing, including RIP, RIPng, OSPF and OSPFv3 • Policy routing (pending)
Multicast	• IGMP Snooping • MLD Snooping • MVR (pending)
QoS/ACL	• Port priority • Priority mapping • Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ • Traffic shaping • Rate limit • 2K ACL for Ethernet, IPv4 and IPv6
DHCP	DHCP server, DHCP relay, DHCP Option 82, 60, 160 and 43
Maintenance	CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, diagnostics including Ping, Traceroute, port mirroring, UDLD (TBD) and copper test
Security	• User hierarchical management and password protection, HTTPS, SSH, Telnet • 802.1X authentication • AAA authentication including RADIUS, TACACS+ • Storm control • Port isolation, port security, sticky MAC • Filtering MAC address • IP source guard, DoS attack prevention, ARP inspection • DHCP Snooping • Loop protection including BPDU protection, root protection(pending) and loopback protection(pending) • Kensington Security Slot (Kensington Lock) support
Mounting	Desktop, Wall-Mount, or Rack-Mount(rack-mounting kits included)
System LEDs	1x tri-color LED for device tracking and status indication
Data Transferring LEDs	10x green-color LEDs
Environmental	Operation: 0°C to 45°C, humidity 10-90% RH(Non-condensing) Storage: -10°C to 60°C, humidity: 5% to 95% RH(Non-condensing)
Dimensions	330mm(L)x176mm(W)x44mm(H)
Unit Weight	1.45Kg
Package Content	1x Switch 1x 1.2m(10A) AC Cable 1x 25cm Ground Cable 4x Rubber Footpads 1x Power Cord Anti-Trip 8x Screws (KM 3x6) 1x Quick Installation Guide 1x Console Cable(Optional) 2x Extended Rack-Mounting Kits
Compliance	FCC, CE, RCM, IC, UKCA
