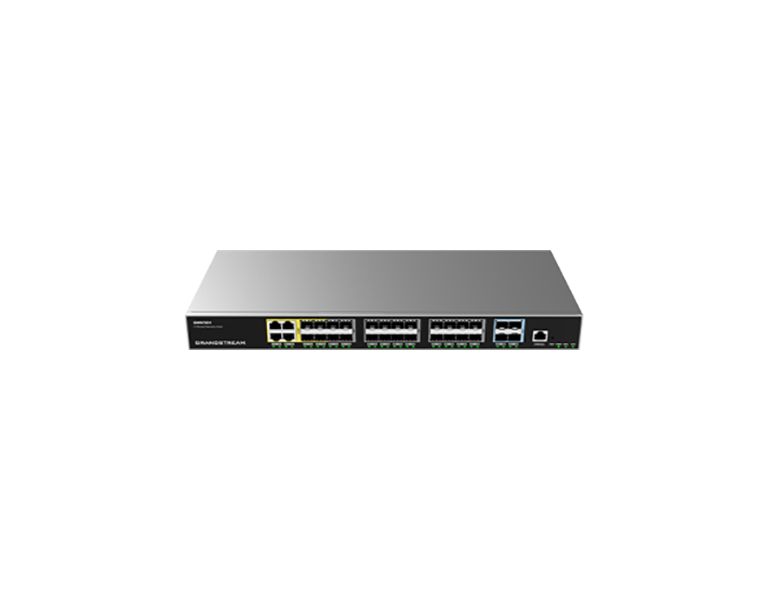

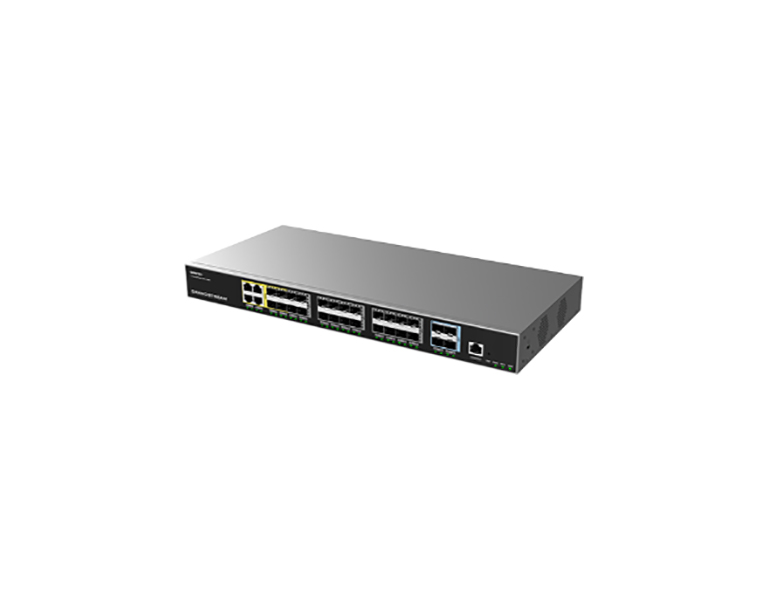

The GWN7831 is Layer 3 aggregation managed switch that allows enterprises to build scalable, secure, high performance and smart business networks that are fully manageable and support maximum capacity. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The GWN7831 can be managed in several ways, including the local Web user interface of the switch, and CLI, the command line interface. This switch is also supported by GWN. Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform. With complete end-to-end quality of service, flexible security settings, and support for maximum network capacity, the GWN7830 Series provides enterprise-grade Layer 3 aggregation switches ideal for medium-to-large deployments.

Features:

• 4 combo Gigabit Ethernet ports, 24 Gigabit SFP ports, and 4 10Gigabit SFP+ ports
• Supports deployment in IPv6 and IPv4 networks
• ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
• Embedded controller to manage switch; GWN. Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform
• Built-in QoS allows for prioritization of network traffic

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	36 months

Specifications
Network Protocol	IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x
Gigabit Ethernet Ports	4x Combo
Gigabit SFP Ports	24
Gigabit SFP+ Ports	4
Maximum no. of Supported Modules	SM-1G: 24 MM-1G: 24 RJ45-1G: 12 SM-10G: 4 MM-10G: 4 RJ45-10G: 2 *Note: RJ45-1G, RJ45-10G modules must be interval inserted
Console	1
Integrated Power Supply	60W
Surge Protection	± 6KV CM and DM for power ± 4KV CM for network ports
ESD	± 12KV for contact discharge
Auxiliary Ports	1x Reset Pinhole
Forwarding Mode	128bps
Forwarding Rate	Store-and-forward
Total non-blocking throughput	64Gbps
Switching Capability	128Gbps
Forwarding Rate	95.232Mpps
Packet Buffer	12Mb
Network Latency	<4µs
Switching	• 16K MAC addresses, including static, dynamic and filtering MAC address • 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN • VLAN virtual interface • GVRP(pending) • 14 link aggregation • Spanning tree, 32 instances for STP/RSTP/MSTP
Routing	• Static routing • Dynamic routing, including RIP, RIPng, OSPF and OSPFv3 • Policy routing(pending)
Multicast	• IGMP Snooping with IGMPv2 and IGMPv3 • MLD Snooping with MLDv1 and MLDv2 • MVR(pending)
QoS/ACL	• Port priority • Priority mapping • Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ • Traffic shaping • Rate limit • 2K ACL for Ethernet, IPv4 and IPv6
DHCP	DHCP server, DHCP relay, Option 82, 60, 160 and 43
Maintenance	CPU and memory monitoring, fault detection and alarm for power supply and fan, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test
Security	• User hierarchical management and password protection, HTTPS, SSH, Telnet • 802.1X authentication • AAA authentication including RADIUS, TACACS+ • Storm control • Port isolation, port security, sticky MAC • Filtering MAC address • IP source guard, DoS attack prevention, ARP inspection • DHCP Snooping • Loop protection including BPDU protection, root protection(pending) and loopback protection(pending) • Kensington Security Slot (Kensington Lock) support
Mounting	Desktop, Wall-Mount or Rack-Mount(rack-mounting kits included)
System LEDs	1x tri-color LED for device tracking and status indication
Power Supply LEDs	2x bi-color LEDs for per power supply PWR&RPS
Data Transferring LEDs	32x green-color LEDs
Fan	2
Environmental	Operation: 0°C to 45°C, humidity 10% to 90% RH(Non-condensing) Storage: -10°C to 60°C, humidity: 10% to 90% RH(Non-condensing)
Dimensions	440mm x 200mm x 44mm
Unit Weight	3.15Kg
Package Content	1x Switch 1x 1.2m(10A) AC Cable 1x 25cm Ground Cable 4x Rubber Footpads 1x Power Cord Anti-Trip 2x Rack-Mounting Kits 8x Screws(KM 3*6) 1x Quick Installation Guide 1x Console Cable(Optional) 1x RPS, External Redundant Power Supply(Optional)
Compliance	FCC, CE, RCM, IC, UKCA
