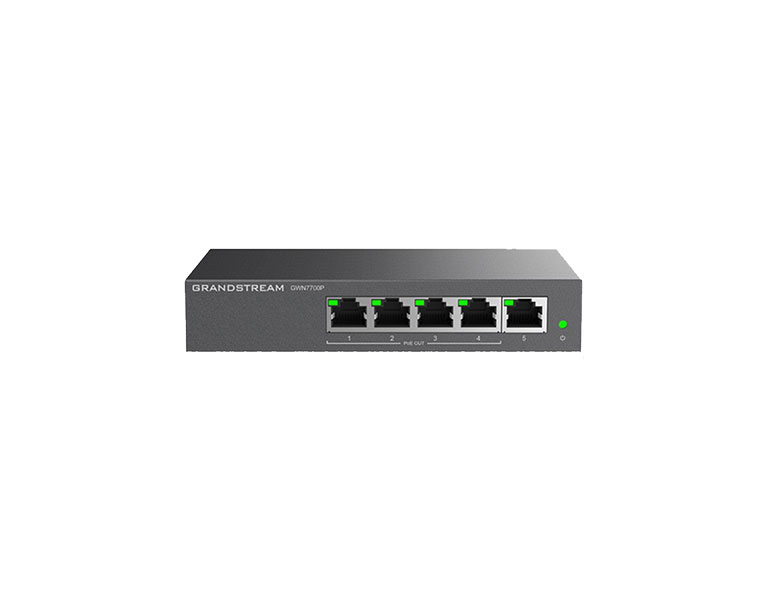

The GWN7700P is unmanaged network switch that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses. It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables. Each port supports auto-negotiation to allow the GWN7700P to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance. The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points, and other PoE endpoints. The plug-and-play GWN7700P are the ideal unmanaged network switches for home offices and small-to-medium businesses.

Features:
• 5 Gigabit RJ45 ports and 4 port PoE+ output
• Green technology reduces power consumption
• LED Indicators; Per port: Link/Activity/Speed Per device: Power
• Auto MDI/MDIX crossover for all ports
• 802.3 af/at compliant Up to 30W on each port
• Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
• Supports long cable connection
• QoS - Supports Default Strict Priority when present

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	36 months

Specifications
Gigabit Ports	5
PoE Ports	4
Enclosure	Metal
Mounting	Desktop/ Wall-Mount
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Port Feature	5× 10/100/1000Mbps RJ45 Ports AUTO Negotiation AUTO MDI/MDIX
Network Media	1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
PoE Configuration	• 1~4 Ports 802.3 af/at compliant • Up to 30 W on Each Port, Total 60W Power Budget; • Overload to cut off the lowest-priority port • Priority: Port 4 to Port 1
LED Indicators	Per port: Link/Activity Green Per device: Power Green
Mac Address Table	2K
Switching Capacity	10Gbps
Jumbo Frame	9KB
Advanced Features	Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control 802.1p/DSCP QoS IGMP: • IGMP Fast-Leave • IGMP Snoop • Route Port Autolearn • Query Refresh Member Port
Power Adapter	External 48-53.5VDC/1.22A
Max Power Consumption by Base System	2W (excluding PoE output power)
Environmental	Operating Temperature: 0 to 40 °C Storage Temperature: -20 to 60 °C Operating Humidity: 10% to 90% Non-condensing Storage Humidity: 10% to 90% Non-condensing
Dimensions (L x W x H)	Unit: 145 x 80 x 27mm Package: 230 x 190 x 51mm
Weight	Unit Weight: 0.26KG Entire Package: 0.75KG
Package	1x Switch, 1x Power Adapter,1x QIG
Compliance	FCC, CE, RCM, IC, UKCA
