• 5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
• Plug and play, no configuration needed
• Supports 802.1p/DSCP QoS and IGMP Snooping functions
• Durable metal casing, desktop/wall-mounting options, and a fanless design
• IEEE 802.3x flow control provides reliable data transfer
• Green Ethernet technology reduces power consumption
• Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping

Conveniently Conduct Business

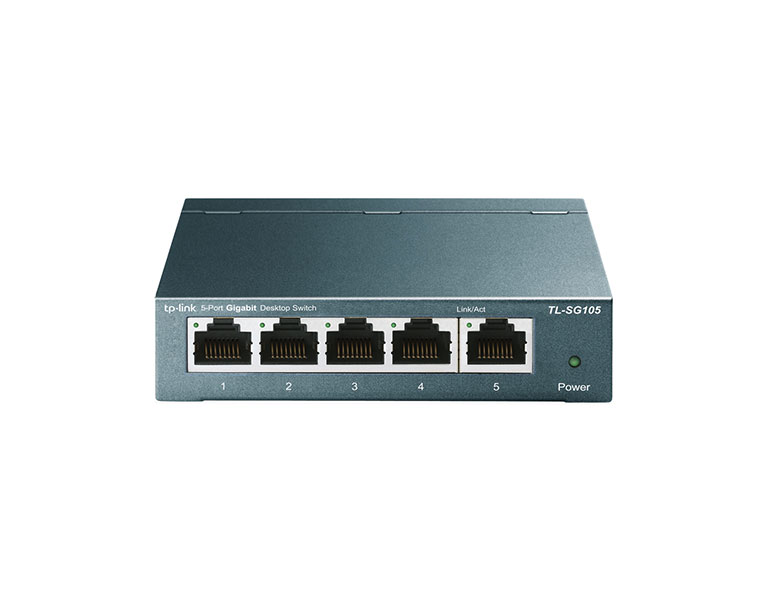

The TL-SG105 Desktop Switch provides an easy way to increase the speed of your network server and backbone connections. Whether you are at home or in the office, the TL-SG105 helps you deal with your business quickly and easily, any time.

Plug and Play, No Configuration
Required A plug-and-play design makes for easy deployment, no technician needed. Auto-negotiation on each port senses the link speed of a network device and intelligently adjusts to ensure full compatibility and optimal performance.

Five Gigabit Ports for Faster Speeds
Increase the speed of your network with the TL-SG105 5-port Gigabit desktop switch. 5 non-blocking 10/100/1000 Mbps ports enable instant transferring of large, bandwidth intensive files without interference.

Value-Added Features Bring Unexpected Experiences
QoS for a Lag-Free Experience Ensures smooth traffic for latency sensitive applications, such as voice and video.
IGMP Snooping for Multicast Optimization Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.

Long Product Life with Durable Metal Casing
Interior components of TL-SG105 are protected by high-quality metal casing to ensure a product longevity. Having passed an array of stringent reliability tests, TL-SG105 delivers switching performance you can depend on.

Go Green with Your Ethernet
TP-Link’s latest generation of Unmanaged Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	60 months

HARDWARE FEATURES
Standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
Interface	5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Switching Capacity	10Gbps
MAC Address Table	2K
Packet Forwarding Rate	7.4Mpps
Packet Buffer Memory	1Mb
Jumbo Frame	16KB
Advanced Features	• Green Technology • 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping (For TL-SG105/TL-SG108) Loop Prevention
Max Power Consumption	3.0 W (220 V/50 Hz
Max Heat Dissipation	10.23 BTU/h
LEDs	Power, Link/Act (indicators per port built into RJ45 port)
Power Supply	External Adapter (output: 5 VDC/0.6 A)
Dimensions (W × D × H)	99.8 x 98 x 25 mm
Certification	CE, FCC, RoHS
Environment	Operating Temperature: 0°C~40°C Storage Temperature: -40°C~70°C Operating Humidity: 10% ~ 90%RH, non-condensing Storage Humidity: 5%~95%RH, non-condensing
