The AP6-Pro Outdoor is IP68 rated, offering maximum protection against the environment, designed to withstand harsh environments with an operating temperature of -40 to 70° C.

• IP68 for Optimal Weatherproof Protection
• 5GHz: 4x4, DL/UL MU-MIMO, DL/UL MU-OFDMA

• WiFi 6 With WiFi 7 Benefits

• Superior Range and Performance

• Omnidirectional + Mesh Connectivity

• AltaPass™ Multi-Password Technology

• Scalable Cloud-Based Management

• Mobile App

• DPI Engine

• Hotspot Functionality

• On-The-Fly Changes and Scanning

• SSID Broadcasting Flexibility

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Specifications
Mechanical
Dimensions	210 x 150 x 90 mm
Weight	0.9 kg
Enclosure Material	Top Cover: Polycarbonate Bottom Cover: Milled Aluminum
Mount material	Galvanized Steel
Weatherproofing	IP68
Hardware
Network Interface	Ethernet, WiFi, Bluetooth
Management Interface	(1) GbE RJ45 Port
Buttons	Reset/Factory Reset
LEDs	Blue, White
Power Method	PoE+
Power Supply	PoE+ Enabled Network Switch 48V, 0.5A PoE Adapter (Optional)
Supported Voltage Range	42.5 - 57V DC
Max. Power Consumption	25W Max, 7 - 15W Typical @ 23° C
Max. Transmit Power	2.4 GHz: 23 dBm @2NSS 5 GHz: 26 dBm @4NSS
MIMO	5 GHz: 4 x 4, DL/UL MU-MIMO, DL/UL MU-OFDMA 2.4 GHz: 2 x 2. DL/UL MU-OFDMA Explicit TX beam-forming
Throughput Rate	2.4 GHz: Up to 573 Mbps 5 GHz: Up to 5.8 Gbps
Antenna Gain	2.4 GHz: Up to 3.3 dBi 5 GHz: Up to 4.3 dBi

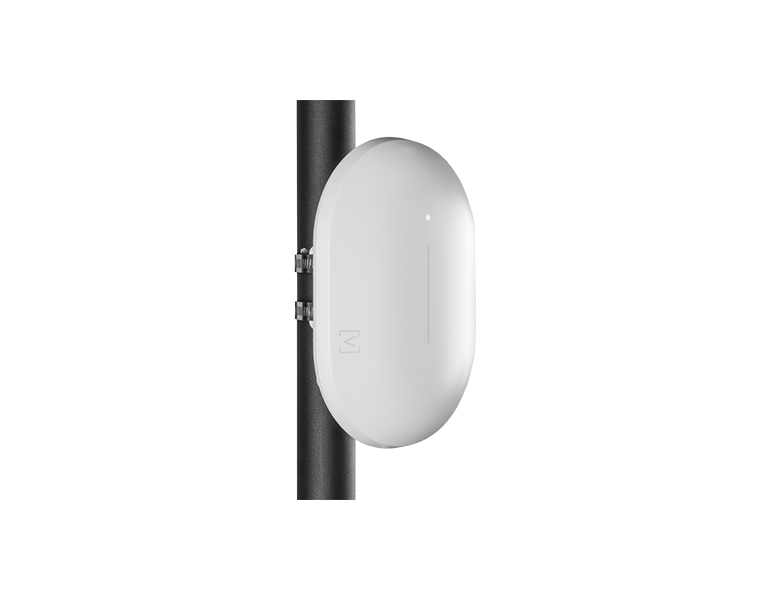

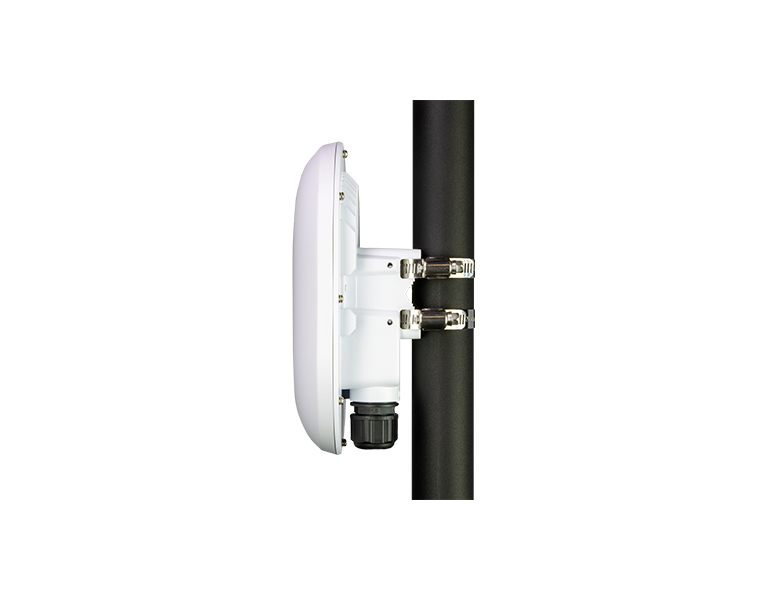

Mounting	Pole mount, wall mount
Operating Temperature	-40 to 70° C
Operating Humidity	5 to 95% Noncondensing
Certifications	CE, FCC, IC
Software
Wi-Fi Standards	801.11a/b/g/n/ac/ax (WiFi4/WiFi5/WiFi6)
Roaming	802.11r/k/v
Wireless Security	WPA2-PSK, WPA3-PSK, WPA-Enterprise (WPA2/WPA3)
Multi-BSSID	Supported
VLAN	802.1Q
Advanced QoS	802.11e
Guest Traffic Isolation	Supported
Concurrent Clients	300+
Zero wait DFS	Yes
Intelligent WiFi Scheduling	Yes
Hotspot Functionality	Yes
Scalable To Stadiums	Yes
Seamless Per-Client Settings	VLAN, Device Type, Rate Limit, Hotspot/Schedule Exception
Supported Data Rates
802.11a/g	6 Mbps to 54 Mbps
802.11b	1 Mbps to 11 Mbps
802.11n	6.5 Mbps to 300 Mbps (Up to MCS 31)
802.11ac	6.5 Mbps to 3.4 Gbps (Up to MCS 9)
802.11ax	2.4 GHz: Up to 573 Mbps 5 GHz: 6.5 Mbps to 5.8 Gbps (Up to MCS 13)

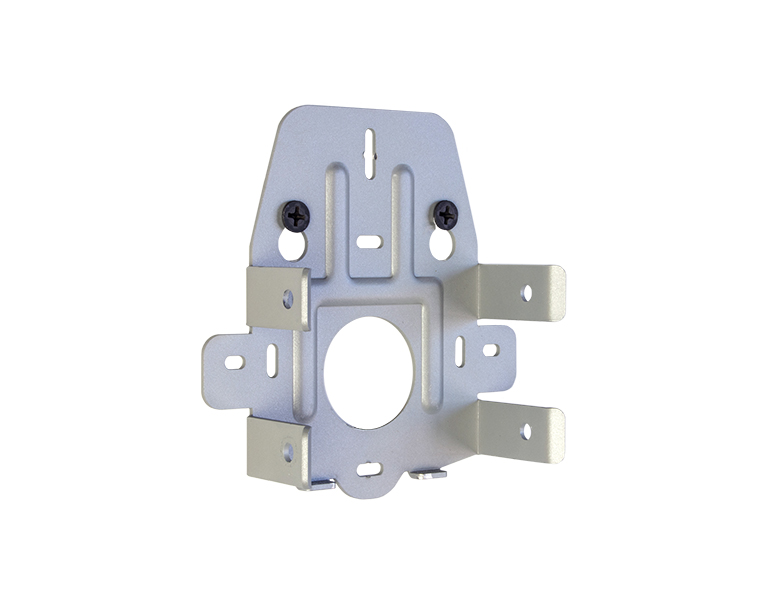

Package contents	Device Wall and pole holder Screws, dowels (2) metal drawstring
