CAUTION! Package doesn't include PoE Adapter!
| • Up to 1.8 Gbps WiFi 6 Speeds: 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz.* • Supports WiFi 6 technologies, such as 1024-QAM and OFDMA, etc.† • High-density connectivity up to 1,000+ clients.** • Long-range coverage with the high-power amplifier and smart antennas. • IP67 weatherproof enclosure for various outdoor environments. • Advanced Functions: Centralized management, Omada mesh, and seamless roaming.△ • PoE+ Powered: Supports 802.3at PoE (adapter not included). |
Explore More with Smart Antennas

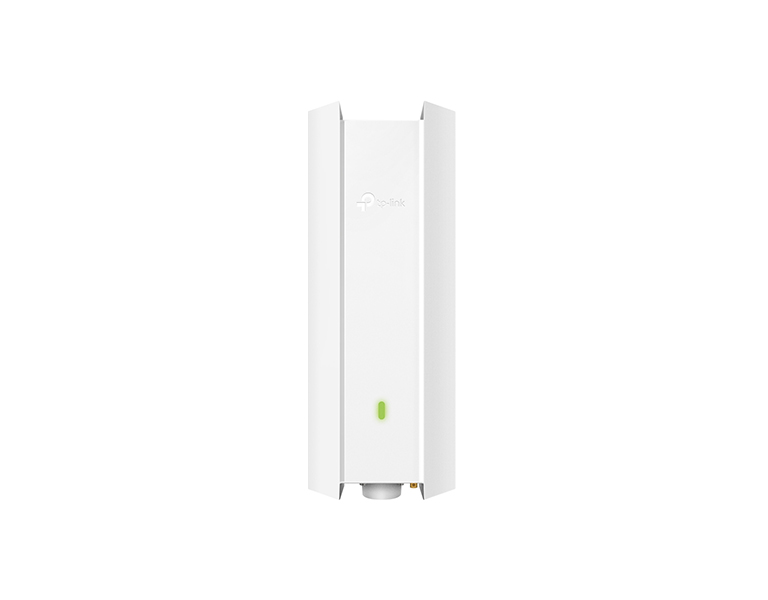

Equipped with horizontally polarized and vertically polarized antennas, EAP623-Outdoor HD’s intelligent algorithms automatically select the optimal antennas, bringing lower interference, longer coverage, and higher performance.
Ideal for High-Density Outdoor Scenes
OFDMA and MU-MIMO provide simultaneous connections for dozens of clients in large open areas.†

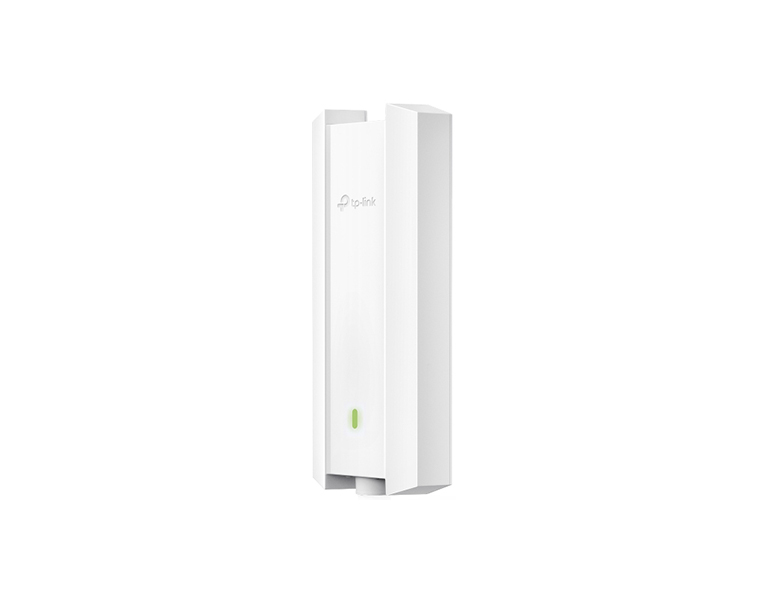

Equipped with an IP67 weatherproof enclosure, our EAP623-Outdoor HD withstands the most extreme environments.
*Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and maximum quantity of connected devices are based on test results under normal usage conditions. Actual wireless data throughput, wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles; 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead; and 3) client limitations, including rated performance, location, connection quality, and client condition.
† Use of WiFi 6 (802.11ax) and its features, including OFDMA and 1024-QAM, requires clients to support the corresponding features.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
△Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada SDN controllers. Go to Omada Mesh Product List to find all the models supported by Omada mesh technology, and refer to the User Guides for Omada SDN Controllers for configuration methods.
§ Based on field tests. The number listed here is the maximum distance of one EAP623-Outdoor HD can reach and connect the devices. The real transmission range and recommended coverage may vary, according to the environment, receiving device, etc.
| Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for outdoor use. |
|
| Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for outdoor use. |
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 24 months |
| Specifications | |
| Main Design | |

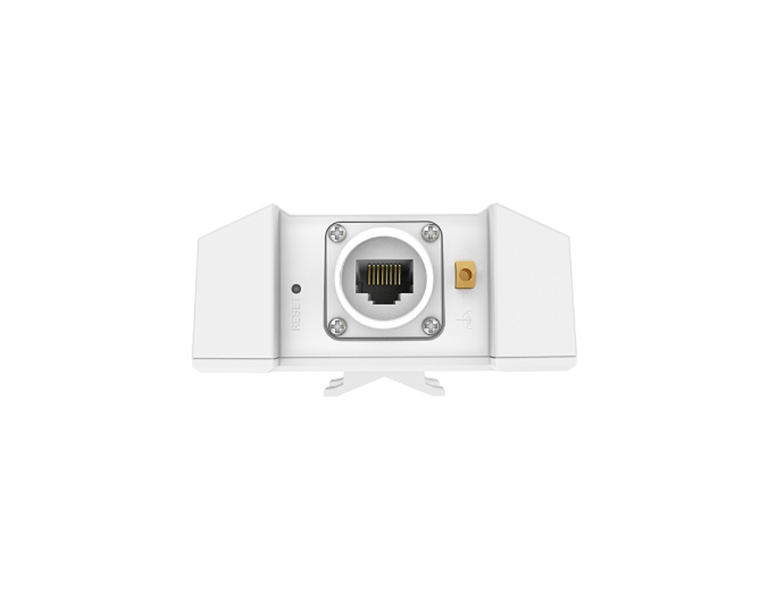

| ILAN Interfaces | 1× Gigabit Ethernet Port |
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax |
| Maximum Data Rate | 574 Mbps (2.4 GHz) + 1201 Mbps (5 GHz) |
| Wireless Client Capacity | 1000+ |
| Bluetooth | Not Supported |
| Antennas | 2 External Dual-Band Omni Antennas 2.4 GHz: 4.0 dBi / 5 GHz: 5.0 dBi |
| Transmit Power | CE: < 20 dBm (2.4 GHz, EIRP), < 23 dBm (5 GHz Band1&2, EIRP), < 30dBm (5 GHz Band3, EIRP); FCC: < 25 dBm (2.4 GHz), < 25 dBm (5 GHz) |
| Reception Sensitivity |
2.4GHz:
11ax HE20 MCS0:-94dBm;11ax HE20 MCS11:-65dBm
11ax HE40 MCS0:-91.5dBm;11ax HE40 MCS11:-62.5dBm
5GHz:
11ax HE20 MCS0:-93.5dBm;11ax HE20 MCS11:-63.5dBm
11ax HE40 MCS0:-90dBm;11ax HE40 MCS11:-60.5dBm
11ax HE80 MCS0:-87.5dBm;11ax HE80 MCS11:-57.5dBm
|
| Centralized Management | |
| Omada Software Controller | Yes |
| Omada Hardware Controller | Yes |
| Omada APP | Yes |
| Security | |
| Captive Portal Authentication | Yes |
| Access Control | Yes |
| Maximum number of MAC Filter | 4000 |
| Wireless Isolation between Clients | Yes |
| VLAN | Yes |
| Rogue AP Detection | Yes |
| Wireless Encryption | WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| 802.1X Support | Yes |
| Wireless Function | |
| Multiple SSIDs | 16 (8 for each band) |
| Channel | 2G:1 - 13 5G: 36,40,44,48,52,56,60,64,100,104,108,112, 116,120,124,128,132,136,140 |
| Enable/Disable Wireless Radio | Yes |
| Enable/Disable SSID Broadcast | Yes |
| Guest Network | Yes |
| Automatic Channel Assignment | Yes |
| Transmit Power Control | Adjust transmit Power on dBm |
| QoS (WMM) | Yes |
| Seamless Roaming | Yes |
| Mesh | Yes |
| Beamforming | Yes |
| MU-MIMO | 2x2 MU-MIMO DL |
| OFDMA | UL/DL OFDMA |
| Rate Limit | Based on SSID/Client |
| Load Balance | Yes |
| Airtime Fairness | Yes |
| Band Steering | Yes |
| RADIUS Accounting | Yes |
| MAC Authentication | Yes |
| Reboot Schedule | Yes |
| Wireless Schedule | Yes |
| Wireless Statistics | Yes |
| Static IP/Dynamic IP | Yes |
| Support Data Rates | |
| 802.11ax | 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80) |
| 802.11ac | 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40) |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11a | 1, 2, 5.5, 11 Mbps |
| Management | |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| Web-based Management | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| System Log | Yes |
| Email Alerts | Yes |
| Physical & Environment | |
| Power Supply | 802.3at PoE or 48V Passive PoE (PoE Adapter Not Included) |
| Maximum Power Consumption | 12.5W (802.3at PoE or 48V Passive PoE) |
| Reset | Yes |

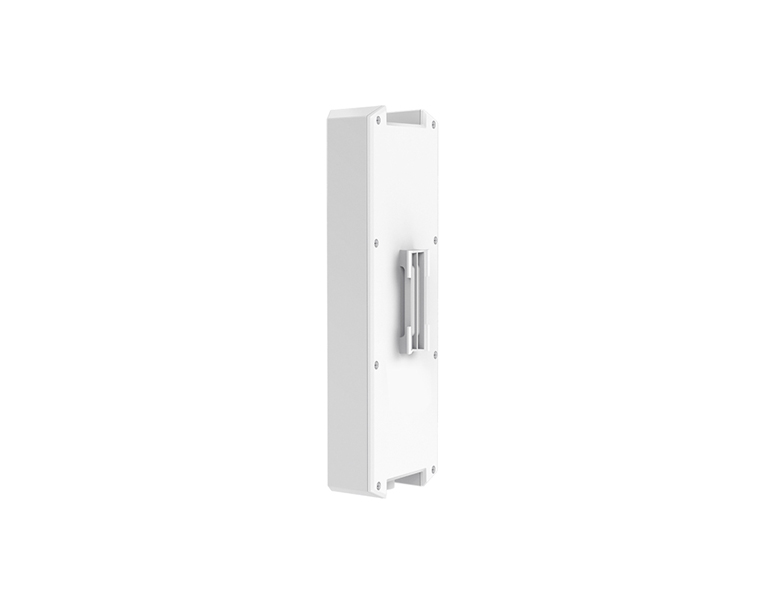

| Mounting | Pole/Wall mouting (Kits included) |
| Others | |
| Certifications | CE, FCC, RoHS |
| Dimensions (W x D x H) | 280.4 × 106.5 × 56.8 mm (excluding the detachable external antennas) |
| Net Weight | 789g |
| Enclosure Material / Rack Material | PC |
| Lightning Protection | Air discharge: ±8kV Contact discharge: ±4kV Common mode 10/700: ±6kV |
| Environment | Operating Temperature: -30 °C – 70 °C Storage Temperature: -40 °C – 70 °C Operating Humidity: 10% – 90% non-condensing Storage Humidity: 5% – 90% non-condensing |
