• Superior WiFi 6 Speeds: Delivers dual band speeds of up to 3 Gbps powered by the latest WiFi 6 technology.¹• Higher Network Efficiency: Enjoy faster speeds on more devices with less lag with OFDMA and MU-MIMO.
• 160 MHz Bandwidth Channel: Double the data at peak transmission times on a single stream with HE160.²• Long-Range Coverage: Dedicated high-power amplifier and professional antennas with an IP67 weatherproof enclosure.
• Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment.³• Stay Smooth with Seamless Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points.³• PoE Powered: : Supports both 802.3at PoE+ and Passive PoE (adapter included) power supply for flexible installation.
• Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or the Omada app.³

Fast and Smooth

Outdoor WiFi AX3000 Indoor/Outdoor WiFi 6 Access Point

Power up Your Business with New-Era Business WiFi 6

WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.

Lightning-Fast AX3000 WiFi 6 Speeds

New-era business Wi-Fi 6 with speeds up to 2976 Mbps brings more than twice the speed of Wi-Fi 5.*1 Every application feels more fluid with drastically improved Wi-Fi speeds.*2

Long-Range Coverage

Professional antennas equipped with high-power amplifiers utilize WiFi 6 technology to provide strong and expansive wireless coverage to various outdoor environments.

*4. Based on field tests. The number listed here is the maximum distance of one EAP650-Outdoor can reach and connect the devices. The real transmission range and recommended coverage may vary, according to the environment, receiving device, etc.

Experience the Peak of WiFi 6 with Smart Antennas

TP-Link Smart Antenna technology brings lower interference, longer coverage, and higher performance. EAP650-Outdoor is equipped with horizontally polarized antennas and vertically polarized antennas, while its intelligent algorithms automatically select the optimal antennas to ensure the peak WiFi experience ideal for outdoor applications.

Always Stay Smooth with Seamless Roaming

Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.*3

IP67 Weatherproof Enclosure for Outdoor Environments

EAP650-Outdoor is totally resistant to dust ingress, shock, vibration, and moisture, withstanding the most extreme environments.

Versatile Mounting Solutions

Our mounting kits provide flexible installation, whether inside or outside.

Seamless Integration into the Omada SDN Platform

The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.

Easy Management with the Omada

Follow the configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a phone or tablet.

1. Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and maximum quantity of connected devices are based on test results under normal usage conditions. Actual wireless data throughput, wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.

2. Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, requires clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band and may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz compared to 80 MHz for general WiFi 6 APs.

3. Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada SDN controllers. Go to Omada Mesh Product List to find all the models supported by Omada mesh technology and refer to the User Guides of Omada SDN controllers for configuration methods.

4. Based on field tests. The number listed here is the maximum distance one EAP610-Outdoor can reach and connect the devices. The real transmission range and recommended coverage may vary, according to the environment, receiving device, etc.

5. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Note that EAP610-Outdoor v1.0 doesn't support the Omada Cloud-Based Controller. Please go to www.tp-link.com/omada-cloud-based-controller/product-list to confirm which models are compatible with the Omada Cloud-Based Controller.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

HARDWARE FEATURES

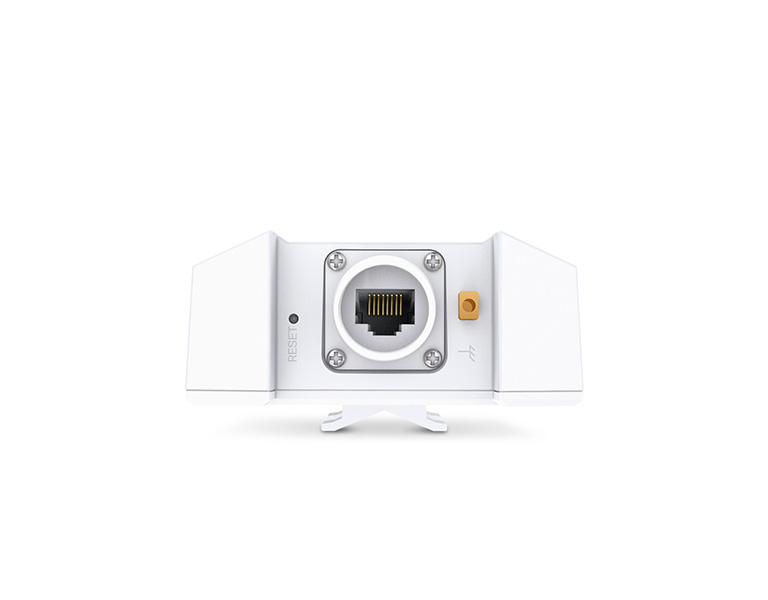

Interface	1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
Button	Reset
Power Supply	• 802.3at PoE • 48V/0.5A Passive PoE (PoE Adapter Included)
Power Consumption	• EU: 12.5W (802.3at PoE or Passive PoE)
Dimensions ( W x D x H )	• 280.4×106.5×56.8 mm (without antenna & mounting kit)
Antenna Type	• 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi
Weatherproof Enclosure	IP67
Mounting	Pole/Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards	IEEE 802.11ax/ac/n/g/b/a
Frequency	2.4 GHz, 5 GHz
Signal Rate	• 802.11ax: 8 Mbps to 2402 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80) • 802.11ac: 6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80) • 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40) • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps • 802.11b: 1, 2, 5.5, 11 Mbps • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Transmit Power	• CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP) • FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz)
Wireless Functions	• 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • MU-MIMO • Omada Mesh³ • Seamless Roaming³ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Wireless Security	• Captive Portal Authentication³ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
MANAGEMENT
Omada App	Yes
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes, through • Omada Cloud-Based Controller • OC300 • OC200 • Omada Software Controller
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c
System Logging Local/Remote Syslog	Yes
SSH	Yes
Web-based Management	Yes
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller
OTHERS
Certification	CE, FCC, RoHS
Package Contents	• Access Point EAP650-Outdoor • Passive PoE Adapter • Power Cord • Mounting Kits • Waterproof Kits • Waterproof Antenna • Installation Guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment	• Operating Temperature: -30–70 ℃ • Storage Temperature: -40–70 ℃ • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
