• Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.^†• High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
• Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.
• Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.^§• Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.^§• PoE+ Powered: Supports DC (adapter is not included), 802.3at PoE+, and Passive PoE for flexible installations.
• Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.
• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.^§

Easily Upgrade to Business WiFi 6 Network

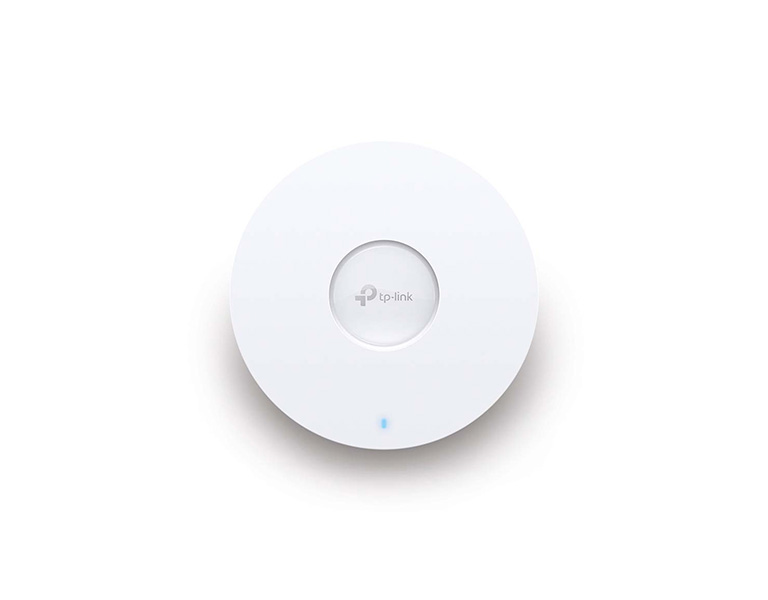

AX1800 Ceiling Mount WiFi 6 Access Point
-AX1800 WiFi 6 Speed
574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz†
-Seamless Roaming
Uninterrupted streaming when moving between APs§
-Ultra-Slim Design
Φ160 mm × 33.6 mm elegant design brings more agility
-High-Efficiency WiFi 6
More connected devices can enjoy faster speeds‡
-Omada Mesh Technology
More flexible and convenient wireless deployment§
-Gigabit Wired Performance
Boosts overall throughput with a Gigabit Ethernet port
-Centralized Cloud Management
Manage the whole network locally or from the cloud§
-PoE+ Powered
Supports DC (adapter is not included), 802.3at PoE+, and Passive PoE for flexible installations
-Optimized WiFi Performance
With Portal Authentication, MU-MIMO, Band Steering, Airtime Fairness, and Load Balance

Upgrade to WiFi 6, Power up Your Business
WiFi 6 brings faster speeds, less lag, and higher capacity.

Superior WiFi 6 Speeds
Upgrade to WiFi 6 with speeds up to 1775 Mbps brings 50% faster speeds than WiFi 5.† Every application feels more fluid with drastically improved Wi-Fi speeds.‡

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.

Auto Channel Selection and Power Adjustment to Optimize Overall Performance*
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

Easy Deployment & Higher Performance by Omada Mesh §
Easy Pairing, Less Wiring With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

Always Stay Smooth with Fast Roaming§
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

Ultra-Slim Design Brings More Agility
Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP613 perfectly blend into any modern office, hotel, classroom, or café.

Easy to Mount with Refined Industrial Design
1) Push up
2) Rotate to lock Ceiling / Wall / Junction Box Mounting (Kits included)

Boosted Network Security and Efficiency
-Secure Guest Network with Up to 16 SSIDs
Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.
-Guest Network with Facebook Wi-Fi and SMS Login
Captive portal (including SMS, Facebook Wi-Fi, Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.§
-WPA3 for Worry-Free Open Public Networks
With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.
-Band Steering
Automatically moves dual band devices onto the wider 5GHz band for faster connections.
-Load Balance
Ensures large numbers of users have smooth network experiences in high-density business networks
-Airtime Fairness
Increases average network throughput in heavily congested environments

^†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

^‡Use of Wi-Fi 6 (802.11ax), and features including OFDMA and MU-MIMO require clients to also support the corresponding features.

^§Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of Omada SDN controllers. Please go to https://www.tp-link.com/en/omada-mesh/product-list/ to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.

*Zero-Touch Provisioning and Auto Channel Selection and Power Adjustment require the use of Omada Cloud-Based Controller. Please go to https://www.tp-link.com/en/omada-cloud-based-controller/product-list/ to confirm which models are compatible with Omada Cloud-Based Controller.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	60 months

HARDWARE FEATURES
Interface	1× Gigabit Ethernet (RJ-45) Port
Button	Reset
Power Supply	• 802.3at PoE • 48 V Passive PoE • 12 V / 1 A DC (Power Adapter IS NOT included)
Power Consumption	11.0W (For PoE); 9.9W (For DC)
Dimensions ( W x D x H )	V2 and above: 160 × 160 × 33.6 mm
Antenna Type	Internal Omni Antenna • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi
Mounting	• Ceiling /Wall Mounting (Kits included) • Junction Box Mounting
WIRELESS FEATURES
Wireless Standards	IEEE 802.11ax/ac/n/g/b/a
Frequency	2.4 GHz and 5 GHz
Signal Rate	• 5 GHz: Up to 1201 Mbps • 2.4 GHz: Up to 574 Mbps
Wireless Functions	• 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • Seamless Roaming ^§ • Omada Mesh^§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Wireless Security	• Captive Portal Authentication^§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	• CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3) • FCC: <25 dBm (2.4 GHz) <25 dBm (5 GHz)
MANAGEMENT
Omada App	Yes
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller OC300 • Omada Hardware Controller OC200 • Omada Software Controller
Cloud Access	Yes, through • OC300 • OC200 • Omada Software Controller • Omada Cloud-Based Controller
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Local/Remote Syslog
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller
OTHERS
Certification	CE, FCC, RoHS
Package Contents	• EAP613 • Ceiling/ Wall Mounting Kits • Installation Guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment	• Operating Temperature: 0–40 ℃ • Storage Temperature: -40–70 ℃ • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

*Use of Wi-Fi 6 (802.11ax), and features including OFDMA and MU-MIMO require clients to also support the corresponding features.
