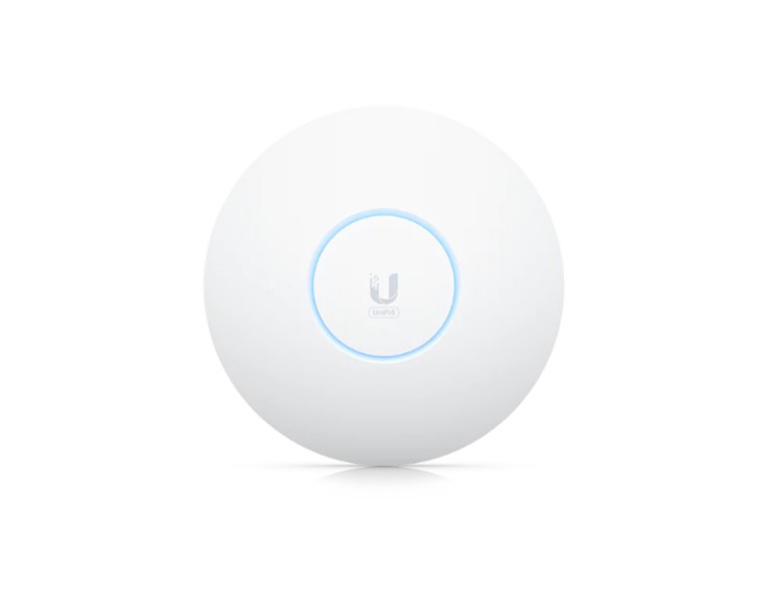

Powerful, ceiling-mounted WiFi 6E access point designed to provide seamless, multi-band coverage within high-density client environments.

Features:

• WiFi 6 support (2.4/5/6 GHz bands)
• 10.2 Gbps aggregate throughput rate
• (1) 2.5GbE RJ45 port (PoE In)
• Powered with PoE+

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5945 – 6425 MHz defined in this document, Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Mechanical
Dimensions	Ø220 x 48.1 mm
Weight	Without mount: 960 g With mount: 1090 g
Enclosure materials	Top housing: plastic Bottom housing: aluminium
Mount material	SGCC steel
Hardware
Management interface	Ethernet, Bluetooth
Networking interface	(1) 2.5GbE RJ45 port
Buttons	Reboot and factory-reset
LED	W/B
Power method	PoE+
Power supply	UniFi PoE switch 48V, 0.5A PoE adapter (optional)
Supported voltage range	44 - 57VDC
Max. power consumption	22W
Max. TX power	2.4 GHz 22 dBm 5-7 GHz 26 dBm
MIMO	2.4 GHz 2 x 2 (UL MU-MIMO) 5 GHz 4 x 4 (DL/UL MU-MIMO) 6 GHz 4 x 4 (DL/UL MU-MIMO)
Throughput rate	2.4 GHz 573.5 Mbps 5 GHz 4.8 Gbps 6 GHz 4.8 Gbps
Antenna gain	2.4 GHz 3.2 dBi 5 GHz 5.3 dBi 6 GHz 6 dBi
Mounting	Wall/ceiling (included)
Operating temperature	-30 to 60° C
Operating humidity	5 - 95% noncondensing
Certications	CE, FCC, IC
Software
WiFi standards	802.11a/b/g WiFi 4/WiFi 5/WiFi 6/WiFi 6E
Wireless security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID	8 per radio
VLAN	802.1Q
Advanced QoS	Per-user rate limiting
Guesttrafc isolation	Supported
Concurrent clients	600+
Zero wait DFS	Yes
Supported Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)	6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5)	6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6/6E)	7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
