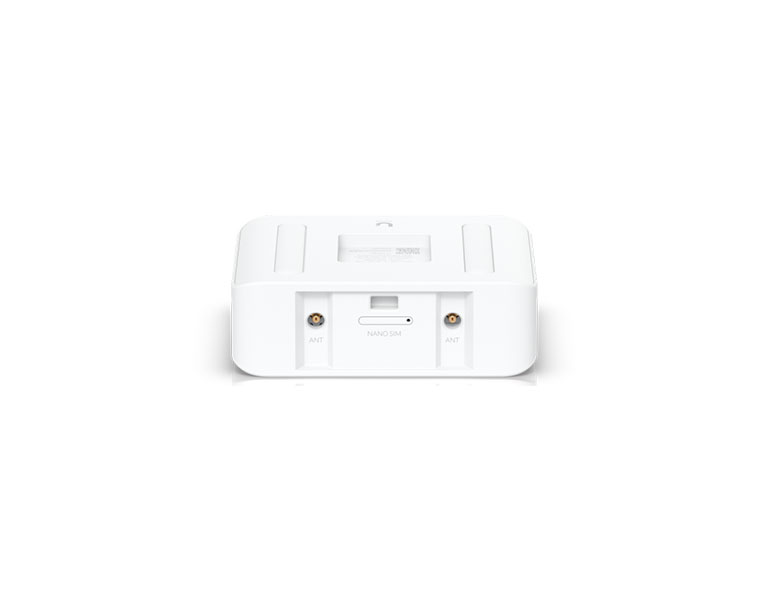

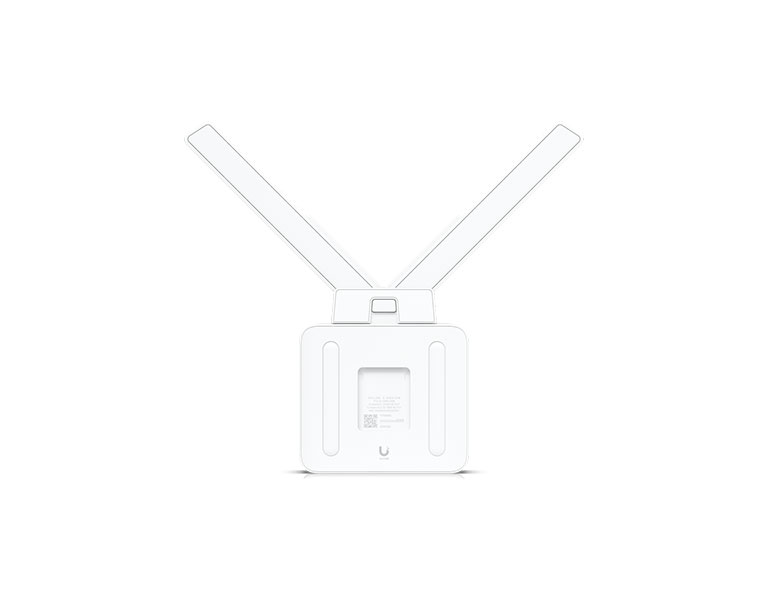

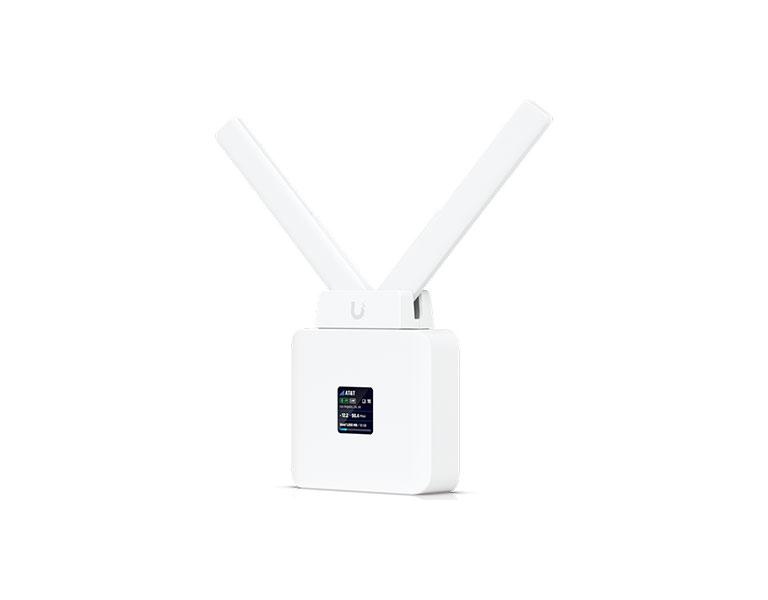

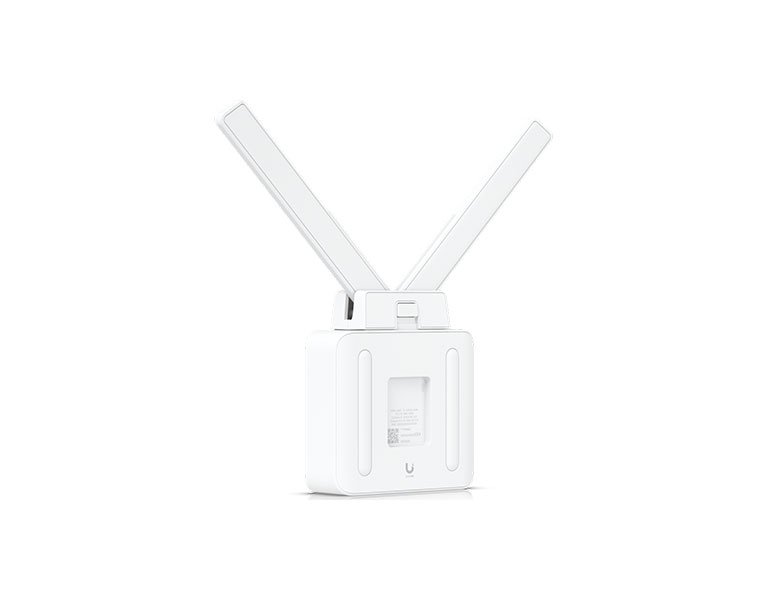

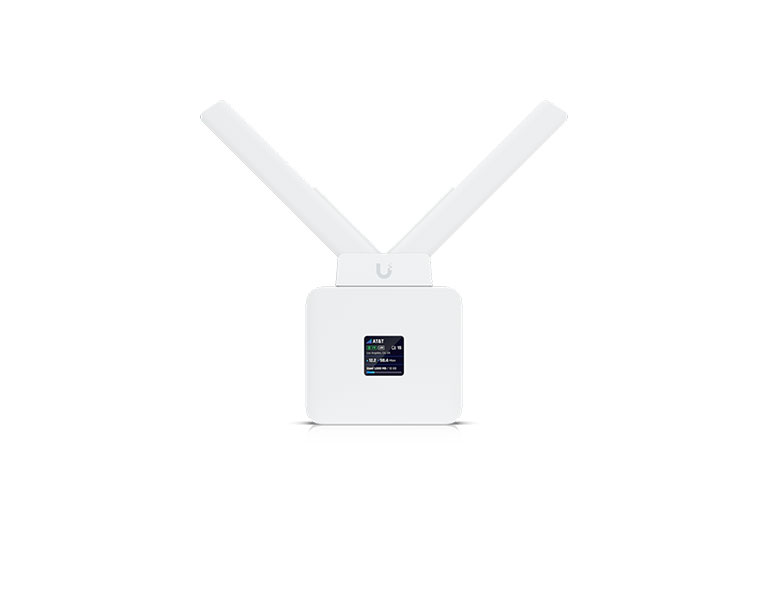

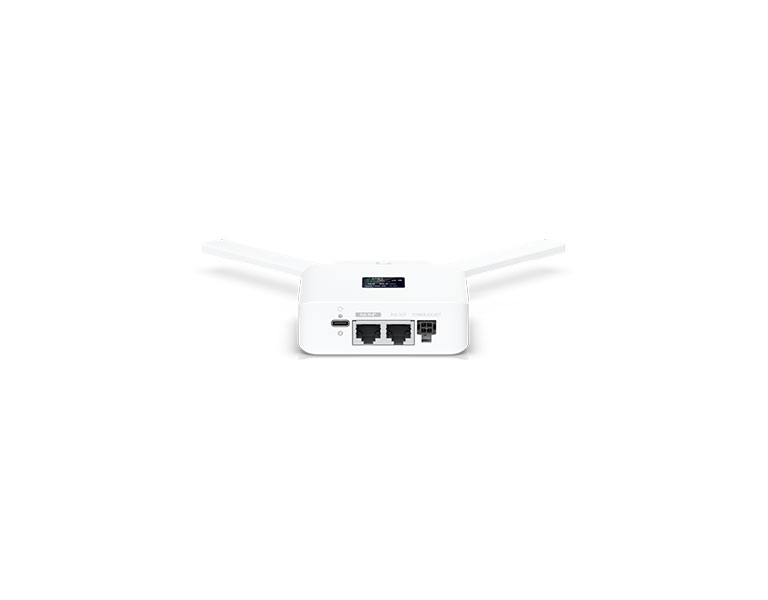

Ubiquiti UMR Mobile Router
Managed mobile WiFi router that brings plug-and-play connectivity to any environment. Bring your own nano-SIM for LTE data.
• LTE category 4 mobile WiFi router
• Flexible mounting
• (2) GbE ports with (1) PoE output*
• Powered using PoE, USB Type-C, or 4-pin DC power socket
• Integrated GPS
• Optional Mobility Cloud subscription**
*PoE+ input required for PoE passthrough.
**Mobility Cloud offers secure remote access and full management through the UniFi Mobility Portal. Mobility Cloud is not required when using your own nano-SIM. Basic management, such as WiFi configuration, is always available with local access through the UniFi mobile app when connected to a Mobile Router’s WiFi.
**Mobility Cloud offers secure remote access and full management through the UniFi Mobility Portal. Mobility Cloud is not required when using your own nano-SIM. Basic management, such as WiFi configuration, is always available with local access through the UniFi mobile app when connected to a Mobile Router’s WiFi.
| Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use. |
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 24 months |
| Mechanical | |
| Dimensions | 220.6 x 89.8 x 28.8 mm |
| Weight | Without mount: 257 g With mount: 303 g |
| Enclosure material | Polycarbonate |
| Mount materials | Wall mount: polycarbonate DIN rail mount: steel |
| Hardware | |
| Processor | 74 Kc MIPS processor at 775 MHz |
| Memory information | 128 MB DDR2 |
| Management interface | Ethernet WiFi |
| Networking interface | (2) GbE RJ45 ports LTE Category 4 radio WiFi 4 |
| PoE interface | (1) PoE input (1) PoE output* (Max. 10W) *Requires a PoE+ switch. |
| SIM | Nano SIM |
| LTE bands | B1, B3, B7, B8, 20, B28 |
| 3G bands | B1, B8 |
| LTE throughput speed* | Download 150 Mbps / Upload 50 Mbps *Speed depends on network coverage and performance at the device location. |
| WiFi standards | 802.11 b/g/n, WiFi 2.4G, 20/40 MHz |
| GPS | Yes |
| Antennas | (1) External LTE antenna (main + aux) with TS9 male connectors (1) Internal WiFi 2.4 GHz antenna (1) Internal GPS antenna |
| Power supply | UniFi PoE switch (48—54V DC, 0.625A) USB Type-C (5V DC, 3A) 4-pin ATX DC power socket (9V DC, 1A) |
| Max. power consumption | 9W |
| LCM display | 1.3" screen |
| Button | Factory reset |
| Mounting | DIN rail/wall (included) |
| Operating temperature | -20 to 45° C |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, UKCA, GCF |
| Supported WiFi Data Rates | |
| 802.11b | 1,2,5.5,11 Mbps |
| 802.11g | 6,9,12,18,24,36,48 Mbps |
| 802.11n (Wifi 4) | 6.5 Mbps to 150 Mbps (MCS0 - MCS7, HT 20/40 |
