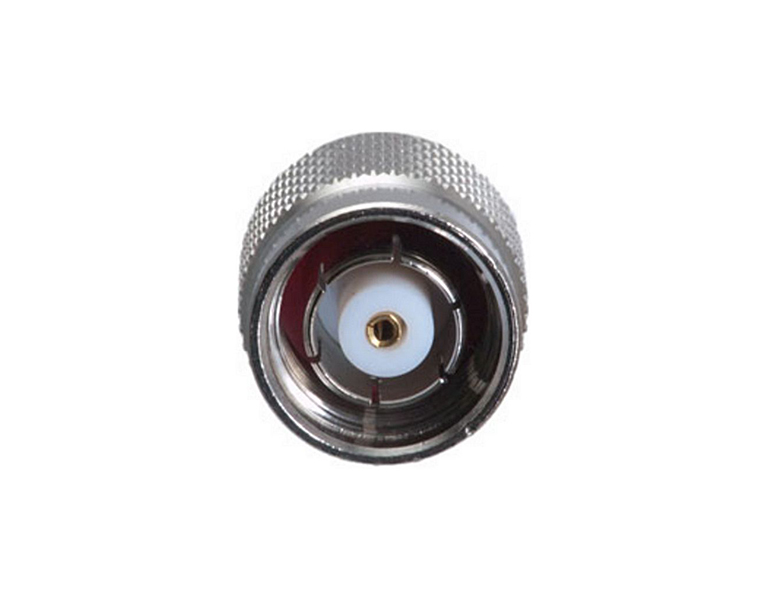

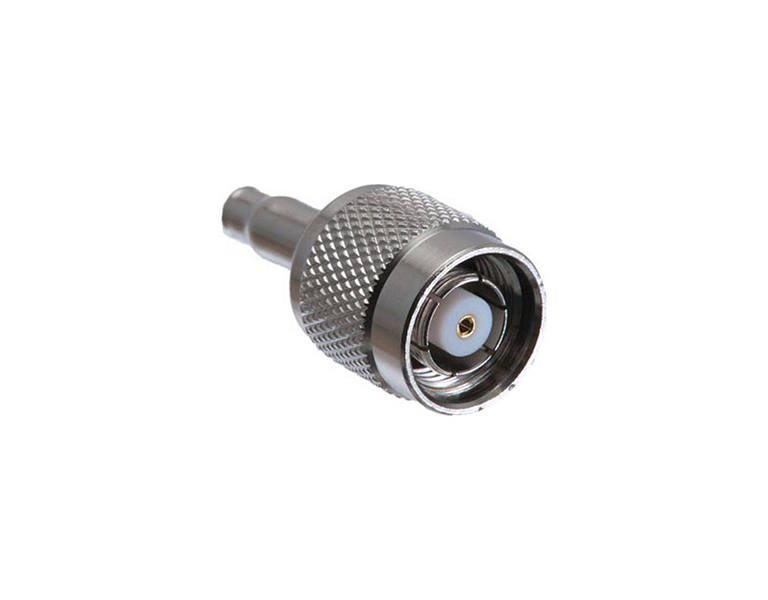

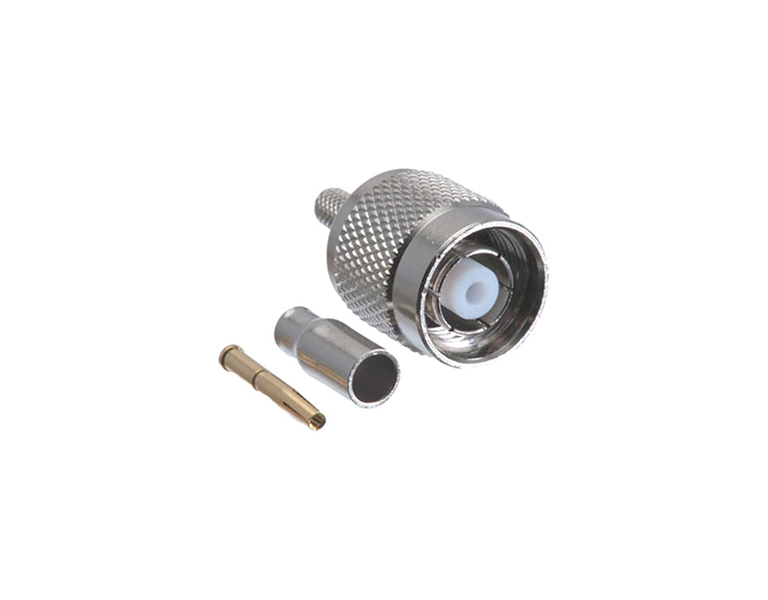

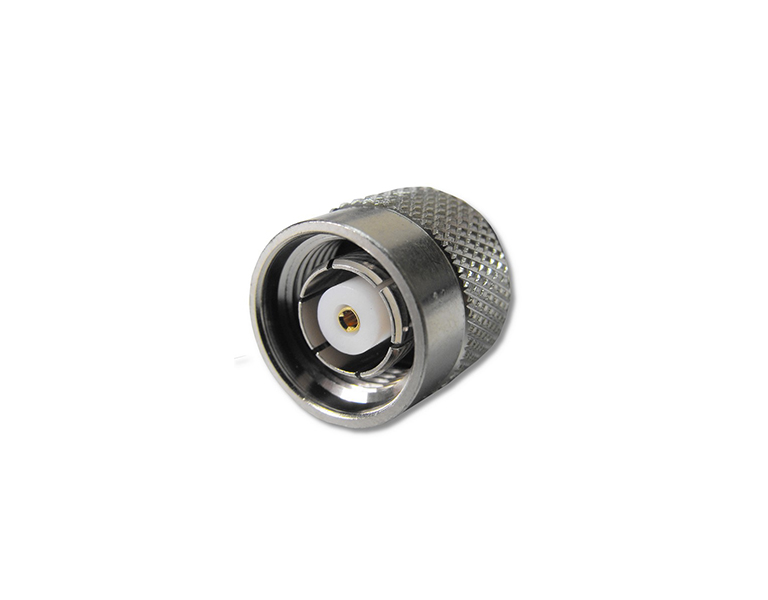

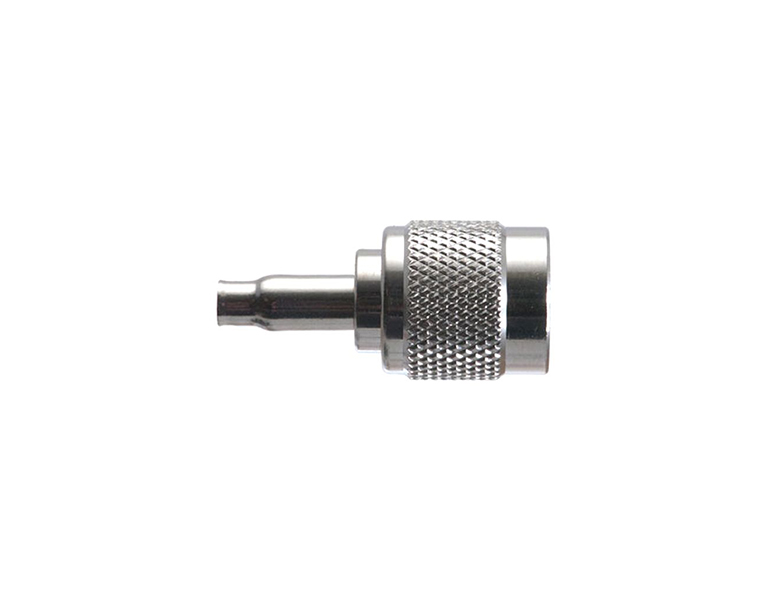

E-zy EZ-RPTNCP100 RP-TNC Plug Crimp connector for 100, RG-174 series cable
Product Code:
EZ-RPTNCP100
Manufacturer E-zy
Sales price:
3,50 €(Includes 24% VAT)
Sales price without TAX:2,82 €
Product Availability:
Show Shipping Cost:
- Description
- Specifications
- Downloads
- Reviews
E-zy EZ-RPTNCP100 RP-TNC Plug Crimp connector for 100, RG-174 series cable
RP-TNC Plug Crimp connector for LMR-100, RG-174, RG-316 series cable.
RP-TNC Series coaxial connectors are medium-sized, threaded coupling connectors designed for use from DC to 11 GHz.
Their consistently low broadband VSWR have made them popular over the years in many applications.
The RP-TNC series connector is impedance matched to 50 ohm cables.
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 12 months |
| Specifications | |
| Impedance | 50 ohm |
| Frequency Range | 0 to 11.0 GHz |
| V.S.W.R. | 1.3 max |
| Working Voltage | 1,000 volts rms max at sea level |
| Dielectric Withstanding Voltage | 2,500 volts rms max at sea level |
| Contact Resistance | Center contact=1.0 Milliohms max |
| Contact Resistance | Outer contact=1.0 Milliohms max |
| Insertion Loss | 0.3 dB max at 10 GHz |
| Insulation Resistance | 5,000 Megohms min |
| Body (Material/Finish) | Brass/Nickel |
| Contact (Material/Finish) | Bronze/Gold |
| Crimp Tube (Material/Finish) | Annealed Copper/Nickel |
| Dielectric | Teflon |
