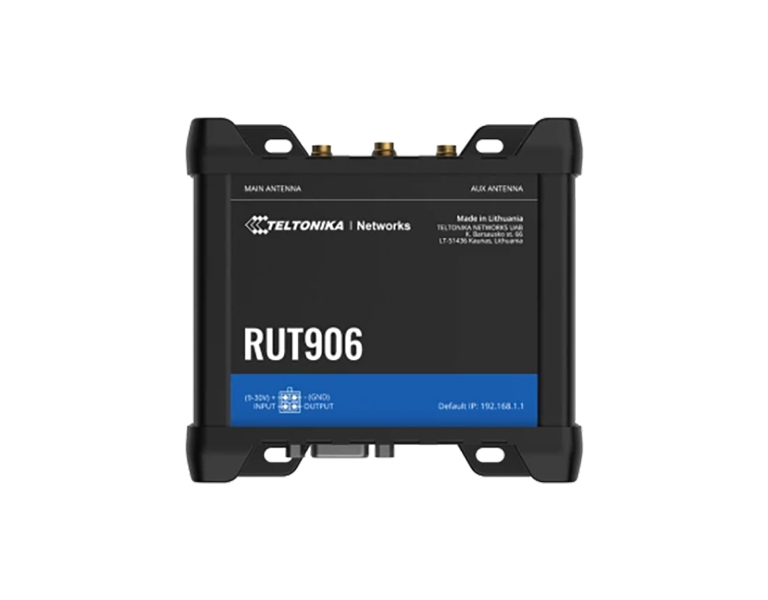

RUT906 is an Cellular 4G router for industrial IoT applications, supporting serial interfaces RS232 and RS485, MQTT, BACnet, I/Os, Ethernet, and more. This cellular router is equipped with GNSS and failsafe features such as Dual SIM, auto-failover, and backup WAN.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use. |
Warranties - Returns: | |
Money Return: | Repair - Replacement: |
20 days | 24 months |
Key Features | |
Mobile | 4G (LTE) – Cat 4 up to 150 Mbps 3G – Up to 42 Mbps 2G – Up to 236.8 kbps |
CPU | Mediatek, 580 MHz, MIPS 24KEc |
Memory | 128 MB, DDR2 |
Storage | 16 MB, SPI Flash |
Powering options | 4-pin industrial DC power socket, 9 - 30 VDC |
SIM | 2 x SIM slots (Mini SIM - 2FF) 1.8 V/3 V, external SIM holders eSIM (Optional) |
Antenna connectors | 2 x SMA for LTE 2 x RP-SMA for Wi-Fi 1 x SMA for GNSS |
Ethernet | 4 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN) 3 x LAN |
Wi-Fi | IEEE 802.11b/g/n, Access Point (AP), Station (STA) |
GNSS | GPS, GLONASS, BeiDou, Galileo and QZSS |
Inputs/Outputs | 2 x Inputs and 2 x Outputs on 10-pin industrial socket 1 x Digital input and 1 x Digital output on 4-pin power connector |
Serial | 1 x RS232, 1 x RS485 |
Other | 1 x USB host |
Status LEDs | 1 x bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power |
Operating temperature | -40 °C to 75 °C |
Housing | Aluminium housing, plastic panels |
Dimensions (W x H x D) | 109.5 x 50 x 100 mm |
Weight | 295 g |
Software | |
Operating system | RutOS (OpenWrt based Linux OS) |
Mobile features | Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits |
Network features | Routing, Failover, Firewall, DHCP, DDNS, QoS / SQM, Load Balancing, VoIP passthrough, Connection monitoring, SSHFS |
Monitoring and Management | WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, BACnet, DNP3, OPC UA, MODBUS, RMS |
VPN and tunneling | OpenVPN, IPsec, GRE, PPTP, L2TP, L2TPv3, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc |
Cloud solutions | RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
Wireless Connectivity Features | Fast roaming (802.11r), Relayd |
Hotspot | External/Internal Radius, SMS OTP, MAC authentication, Walled Garden |
GNSS | NMEA forwarding, NTRIP, AVL, Geofencing |
