• Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds.1 • High-Density Connectivity: 4x increased capacity to connect more devices simultaneously.2 • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)3, Centralized Cloud Management, and Intelligent Monitoring. • Centralized Management: Cloud access and Omada app for ultra convenience and easy management. • 2.5G Port: A 2.5 Gbps Ethernet port boosts total internet throughput. • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.4 • PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation. • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/Voucher, etc.) and abundant wireless security technologies. |
High-Density Connectivity with 4x Increased Capacity
OFDMA5 and Uplink & Downlink MU-MIMO6 increase network capacity by up to 4x versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously2. Leverage multi-user capabilities and upgrade your business like never before.
Blazing Fast Speed with 8 Spatial Streams
The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 3550 Mbps (2402 Mbps on a 5 GHz band and 1148 Mbps on a 2.4 GHz band)1. With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Optimized Wired Performance with 2.5 GE PoE+ Port
Armed with a 2.5 Gigabit Ethernet Port, the EAP660 HD delivers exceptional multi-gigabit performance to support the insatiable demand for better and faster Wi-Fi. Compatibility with standard 802.3at PoE+ is ideal for flexible deployment.
Seamless Roaming
802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving.4 This allows sensitive applications like VoIP and video conferences to go uninterrupted.
Boost Network Efficiency in All Aspects With Rich Advanced Features
Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
Load Balance ensures large numbers of users have smooth network experiences in high-density business networks
Airtime Fairness Increases average network throughput in heavily congested environments
Easy to Mount with Refined Industrial Design
1) push up
2) simply rotate to lock
Secure Guest Network with Facebook Wi-Fi and SMS Login
Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business.
1Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
24x Increased Capacity refers to increase in median throughput under dense environment compared to standard 4x4 11ac access point.
3Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller.
4Seamless Roaming requires that clients need to support 802.11k/v and may require additional set up. Performance may vary depending on the client device.
5Use of OFDMA requires clients to also support OFDMA.
6UL MU-MIMO features can be enabled by software updates.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use. |
|
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use. |
Warranties - Returns: | |
Money Return: | Repair - Replacement: |
20 days | 60 months |
HARDWARE FEATURES | |

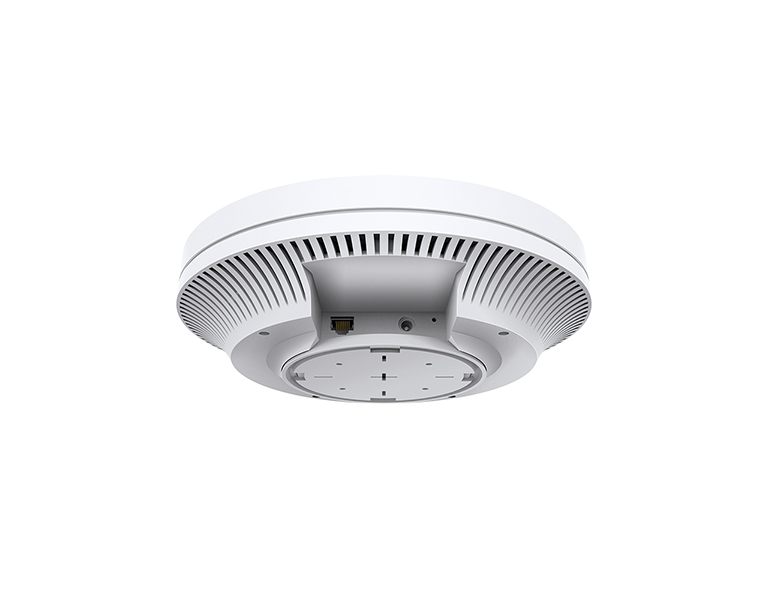

Interface | 1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE) |
Button | Reset |
Power Supply | • 802.3at PoE • 12 V DC |
Power Consumption | • EU: 18.5 W |
Dimensions ( W x D x H ) | 243 × 243 × 64 mm |
Antenna Type | Internal Omni • 2.4 GHz: 4× 4 dBi • 5 GHz: 4× 5 dBi |
Mounting | Ceiling /Wall Mounting (Kits included) |
WIRELESS FEATURES | |
Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
Frequency | 2.4 GHz and 5 GHz |
Signal Rate | • 5 GHz: Up to 2402 Mbps • 2.4 GHz: Up to 1148 Mbps |
Wireless Functions | • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • Seamless Roaming△ • Omada Mesh△ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
Wireless Security | • Captive Portal Authentication△ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
Transmission Power | • CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, EIRP) • FCC: <26 dBm (2.4 GHz) <26 dBm (5 GHz) |
MANAGEMENT | |
Omada App | Yes |
Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
Email Alerts | Yes |
LED ON/OFF Control | Yes |
Management MAC Access Control | Yes |
SNMP | v1, v2c, v3 |
System Logging Local/Remote Syslog | Local/Remote Syslog |
SSH | Yes |
Web-based Management | HTTP/HTTPS |
L3 Management | Yes |
Multi-site Management | Yes |
Management VLAN | Yes |
Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
OTHERS | |
Certification | CE, FCC, RoHS |
Package Contents | • EAP660 HD • Power Adapter • Ceiling/Wall Mounting Kits • Installation Guide |
System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
Environment | • Operating Temperature: 0–40 ℃ • Storage Temperature: -40–70 ℃ • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
‡4× Increased Capacity refers to increase in median throughput under dense environment compared to standard 4×4 11ac access point.
§Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. Please go to Omada Cloud-Based Controller Product List to find all the models supported by Omada Cloud-Based Controller.
△Omada mesh may require upgrading the firmware. Omada Mesh, Seamless Roaming, and Captive Portal require the use of Omada SDN controllers. Please go to Omada Mesh Product List to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.
*Use of OFDMA requires clients to also support OFDMA.
**UL MU-MIMO features can be enabled by software updates.
