TP-LINK EAP773 V1 BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

Product Code:
EAP773
Manufacturer Tp-link
Sales price: 350,00 €(Includes 24% VAT)
Sales price without TAX:282,26 €
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
TP-LINK EAP773 V1 BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
• BE9300 Tri-Band Wi-Fi 7: 5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 574 Mbps (2.4 GHz). Buffering will no longer be a problem.
1× 10G Port: Unlock the full potential of Wi-Fi 7.
• Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi.
• 320 MHz Bandwidth: Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.
 Low Latency and Interference:  Multi-Link Operation, and Multi-RUs ensure high performance of your network.
 Advanced Functions:Supports centralized management, mesh, and AI roaming.

Wi-Fi 7: Swifter, Smoother, Stronger
Supersized Throughput for Better Experiences
With the brand-new 6 GHz band open to applications, WiFi 7 supports extending channel width to 320 MHz. Compared to WiFi 6/6E, the doubled channel bandwidth of 6 GHz offers many more simultaneous transmissions at the fastest possible speeds. ‡ Making full use of these new resources, the throughout of EAP773 reaches up to 9214 Mbps.

Higher Capacity for Increased Traffic Demands
WiFi 7 supports 4096-QAM with 12 bits rather than WiFi 6’s 10 bits. The updated modulation method enables each signal to carry more dense amounts of data. Equipped with advanced 4096-QAM, EAP773 empowers your business to meet ever-growing traffic demands from high-bandwidth applications, such as remote offices, HD video conferencing, and cloud-based applications.

Lower Latency for Boosted Network Reliability
EAP773 allows network devices to communicate across multiple bands and channels simultaneously thanks to Multi-Link Operation (MLO). Additionally, Multi Resource Units (Multi-RUs) open up previously wasted channels. More bands can be used concurrently to share redundant data, and the interference will be blocked to improve reliability.

Optimized Wired Performance with 10G PoE+ Port
With a 10 Gigabit Ethernet Port, EAP773 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3at PoE is ideal for flexible deployment in large-scale scenes such as offices, schools, and hotels.

Auto Channel Selection and Power Adjustment
Provide powerful wireless performance while greatly reducing Wi-Fi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.*

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface. Experience total control at your fingertips.

Boosted Network Security
• Secure Guest Network with up to 24 SSIDs
Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.

WPA3 for Worry-Free Open Public Networks
With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots

• Boost Your Business with  SMS Login
Captive portal (including SMS and Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.

• Rogue AP Detection
Detect and mitigate rogue access points to protect your business network from security holes or other threats anywhere, anytime.

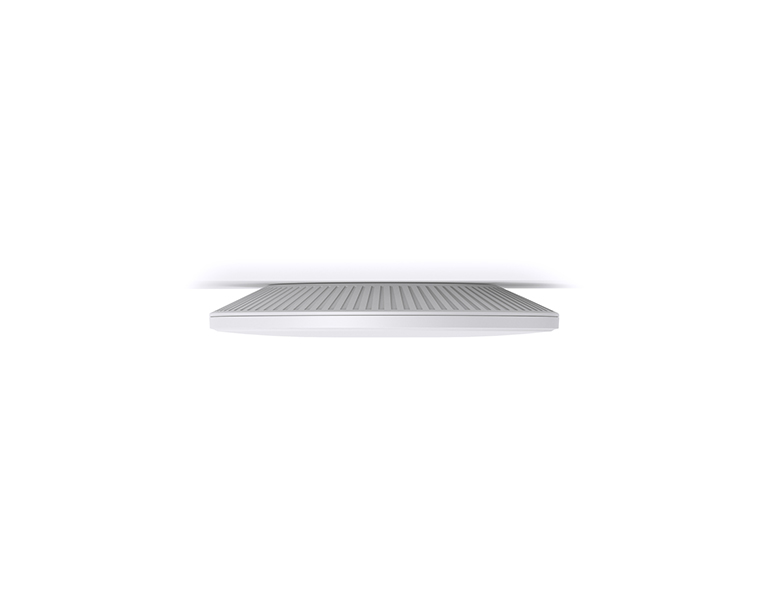

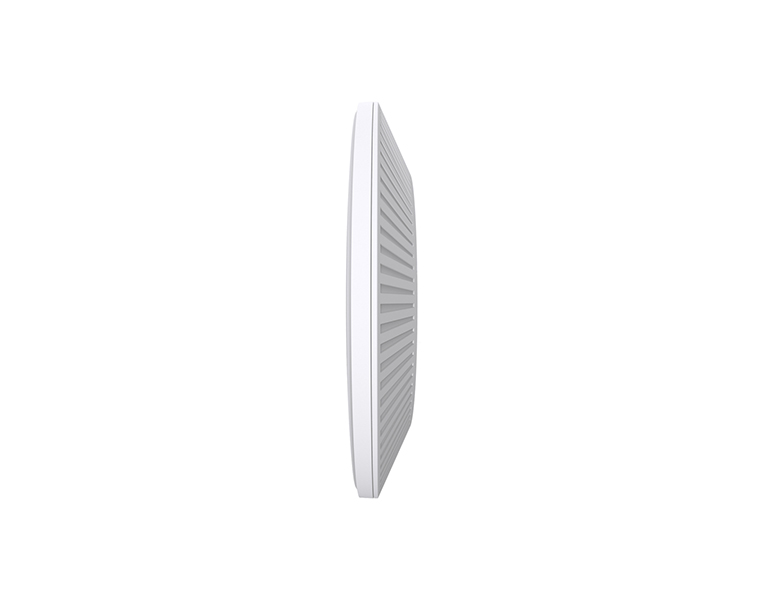

Ultra-Thin Design for Flexible Deployment
The overall design of EAP773 utilizes a thinner circular arc with a groove around the top cover, fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic.

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for WiFi 6 routers. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 6 GHz, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO and BSS Color requires clients to also support the corresponding features.
*Zero-Touch Provisioning and Auto Channel Selection and Power Adjustment require the use of Omada Cloud-Based Controller. Go to /en/omada-cloud-based-controller/product-list/ to confirm which models are compatible with Omada Cloud-Based Controller.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
§Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
Omada Mesh, AI Roaming, Captive Portal, and Cloud Access require the use of an Omada SDN controller.  Please refer to the User Guides of Omada SDN controllers for configuration methods.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5945 – 6425 MHz defined in this document, Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017



Warranties - Returns:
Money Return: Repair - Replacement:
20 days 60 months
Main Design
LAN Interfaces 1x 10Gbps Ethernet Port
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax/be
Maximum Data Rate 574 Mbps (2.4 GHz) + 2880 Mbps (5 GHz) + 5760 Mbps (6 GHz)
Wireless Client Capacity 2 GHz: 128, 5 GHz: 128, 6 GHz: 128
Antennas 2.4GHz: 2 x 4dBi
5GHz: 2 x 5dBi
6GHz: 2 x 5dBi
Bluetooth 1 × 4.0 dBi, Bluetooth 5.2
*Firmware update may be required.
Transmit Power • CE: < 20 dBm (2.4 GHz, EIRP); < 23 dBm (5 GHz, band 1&band 2, EIRP); < 28 dBm (5 GHz, band 3, EIRP); ​
• FCC:< 25 dBm (2.4 GHz); < 25 dBm (5 GHz); < 23 dBm (6 GHz)
Reception Sensitivity



2.4G:
11ax HE20MCS0:-96dBm; 11ax HE20MCS11:-66.5dBm 11ax HE40MCS0:-93dBm; 11ax HE40MCS11:-64dBm

5G:
11be EHT20MCS0:-94dBm; 11be EHTMCS13:-63dBm 11be EHT40MCS0:-90.5dBm; 11be EHT40MCS13:-60dBm 11be EHT80MCS0:-88dBm; 11be EHT80MCS13:-57.5dBm 11be EHT160MCS0:-85dBm; 11be EHT160MCS13:-55.5dBm

6G:
11be EHT20MCS0:-93dBm; 11be EHTMCS13:-63dBm 11be EHT40MCS0:-90dBm; 11be EHT40MCS13:-60dBm 11be EHT80MCS0:-87.5dBm; 11be EHT80MCS13:-57.5dBm 11be EHT160MCS0:-84dBm; 11be EHT160MCS13:-55dBm 11be EHT320MCS0:-81.5dBm; 11be EHT320MCS0:-52.5dBm

Centralized Management
Omada Software Controller Yes
Omada Hardware Controller Yes
Omada APP Yes
Security
Captive Portal Authentication Yes
Access Control Yes
Maximum number of MAC Filter 4000
Wireless Isolation between Clients Yes
VLAN Yes
Rogue AP Detection Yes
Wireless Encryption WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE
Wireless Function
Multiple SSIDs 24 (8 on each band)
Channel 2G: 1~13; 5G: 36~140; 6G: 33~93
Enable/Disable Wireless Radio Yes
Enable/Disable SSID Broadcast Yes
Guest Network Yes
Automatic Channel Assignment Yes
Transmit Power Control Adjust transmit Power on dBm
QoS (WMM) Yes
Seamless Roaming Yes
Mesh Yes
Beamforming Yes
MU-MIMO 4x4 DL/UL MU-MIMO
OFDMA UL/DL OFDMA
Rate Limit Based on SSID/Client
Load Balance Yes
Airtime Fairness Yes
Band Steering Yes
RADIUS Accounting Yes
MAC Authentication Yes
Reboot Schedule Yes
Wireless Schedule Yes
Wireless Statistics Yes
Static IP/Dynamic IP Yes
Support Data Rates
802.1be 5G Band:
EU: 8Mbps to 2882Mbps(MCS0—MCS13,NSS=1 to 2 BE20/40/80/160) US: 8Mbps to 4324Mbps(MCS0—MCS13,NSS=1 to 2 BE20/40/80/160/240)

6G Band:
8Mbps to 5765Mbps(MCS0—MCS13,NSS=1 to 2 BE20/40/80/160/320)
802.11ax 2G Band:
8Mbps to 574Mbps(MCS0—MCS11,NSS=1 to 2 HE20/40) 5G Band: 8Mbps to 2402Mbps(MCS0—MCS11, NSS=1 to 2 HE20/40/80/160)

6G Band:
8Mbps to 2402Mbps(MCS0—MCS11, NSS=1 to 2 HE20/40/80/160)
802.11ac 6.5Mbps to 2166.7Mbps(MCS0—MCS11,NSS=1 to 2 VHT20/40/80/160)
802.11n 6.5Mbps to 300Mbps(MCS0—MCS15,HT20/40)
802.11g 6, 9, 12, 18, 24, 36, 48 ,54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11a 6, 9, 12, 18, 24, 36, 48 ,54 Mbps
Management
LED ON/OFF Control Yes
Management MAC Access Control Yes
Web-based Management Yes
SNMP v1, v2c, v3
SSH Yes
Restore & Backup Yes
Firmware update via Web Yes
NTP Yes
System Log Yes
Email Alerts Yes
Physical & Environment
Power Supply 802.3at PoE or 12V/2.5A
DC DC Power Adapter Is Not Included
Maximum Power Consumption 24.05 W (For PoE); 20.92 W (For DC)
Reset Yes
Mounting Ceiling / Wall mouting (Kits included)
Others
Certifications CE, FCC, RoHS, IC
Dimensions (W x D x H) 220 x 220 x 32.5 mm
Net Weight 736g
Enclosure Material / Rack Material Top cover: PC
Bottom shell: aluminum alloy
Mounting rack: stainless steel
Lightning Protection 2KV
Environment Operating Temperature: 0 °C - 40 °C
Storage Temperature: -40 - °C–70 °C
Operating Humidity: 10% - 90% non-condensing Storage Humidity: 5% - 90% non-condensing
