• High-Speed Wi-Fi: Simultaneous 300 Mbps at 2.4 GHz and 433 Mbps at 5 GHz for 733 Mbps total available bandwidth.^†• Far-Reaching Coverage: Three external antennas provide stable omnidirectional signal and superior wireless coverage.
• Multi-Mode 3 in 1:  Supports Router, Access Point, and Range Extender.
• WPA3 Security:  Brings new capabilities to improve cybersecurity in personal networks.^§• IPTV Support: IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize HD streaming.
• Parental Controls:  Manages when and how connected devices can access the internet.
• Guest Network: Provides separate access for guests while securing the host network.

Advanced 733Mbps Dual Band Connections
With 433 Mbps wireless speed over the 5GHz band and 300 Mbps over the 2.4GHz band, Archer C20 offers you the flexibility of two dedicated networks and ensures amazing wireless performance. Simple tasks such as sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band – all at the same time.¹

Stable Omnidirectional Signal and Superior Coverage
With 3 fixed external antennas combined with higher quality antenna technology, you can experience excellent wireless performance with stable signal in every direction and high speed across greater distances. This provides you with incredible wireless coverage and reliability from anywhere in your large home or office.

Smooth HD Streaming
IGMP Proxy/Snooping, Bridge, and Tag VLAN optimizes IPTV streaming so you can enjoy your favorite movies and shows lag-free. Put an end to buffering and stuttering videos once and for all and enjoy pleasant home entertainment.

Guest Network Access
The Guest Network function provides secure access for guests to use your Wi-Fi network. Share with anyone, without compromising your private network. Make sharing easy and maintain security.

Router Mode
Create a wireless network and share internet to Wi-Fi devices.

Access Point Mode
Extend your existing wired network and make it wireless.

Range Extender Mode
Boost the existing wireless coverage in your room.

Easy Setup and Use
Set up the Archer C20 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS devices, including parental controls and access control.

^†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
^‡Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
^§Use of WPA3 requires clients to also support WPA3.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	36 months

HARDWARE FEATURES

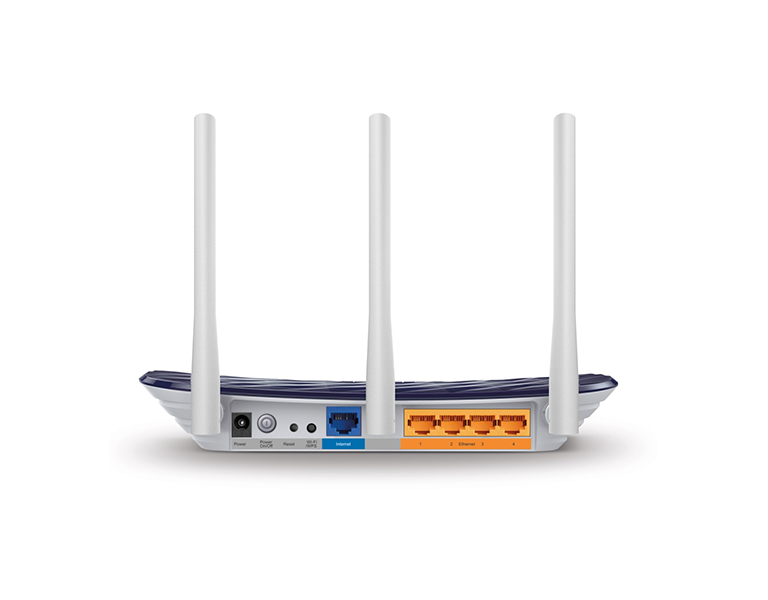

Ethernet Ports	4 x 10/100Mbps LAN Ports, 1 x 10/100Mbps WAN Port
Buttons	Reset Button, Power On/Off Button, Wi-Fi/WPS Button
Antennas	3 fixed Omni Directional Antennas
External Power Supply	9VDC/0.6A
Dimensions(WxDxH)	230 x 144 x 35mm
SOFTWARE FEATURES
WAN Type	Dynamic IP, Static IP, PPPoE, PPTP(Dual Access), L2TP(Dual Access), Bigpond
DHCP	Server, DHCP Client List, Address Reservation
Quality of Service	WMM, Bandwidth Control
Port Forwarding	Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS	DynDns, NO-IP
Access Control	Parental Control, Local Management Control, Host list, Access Schedule, Rule Management
Firewall Security	DoS, SPI Firewall, IP Address Filter/MAC Address Filter/ Domain Filter, IP and MAC Address Binding
Protocols	IPv4, IPv6
Management	Access Control, Local Management, Remote Management
Guest Network	2.4GHz guest network 5GHz guest network
WIRELESS FEATURES
Wireless Standards	IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency	2.4GHz and 5GHz
Signal Rate	5GHz: Up to 433Mbps 2.4GHz: Up to 300Mbps
Reception Sensitivity	5GHz: 11a 6m: -90dBm 11ac VHT80 mcs9: -60dBm 11ac VHT40 MCS9: -65.5dBm; 11ac VHT80 MCS9: -61.5dBm 2.4GHz: 11n HT20 mcs0: -87dBm 11n HT40 mcs7: -63 dBm
Wireless Function	Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security	WPA / WPA2,WPA-PSK/ WPA2-PSK, WPA3-Personal encryption
OTHERS
Certification	FCC, CE, RoHS
System Requirements	Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Cable or DSL Modem Subscription with an Internet Service Provider(for internet access)
Environment	Operating Temperature: 0°C~40°C Storage Temperature: -40°C~70°C Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Package Contents	Wireless Router Archer C20 Power Adapter RJ-45 Ethernet Cable Quick Installation Guide
