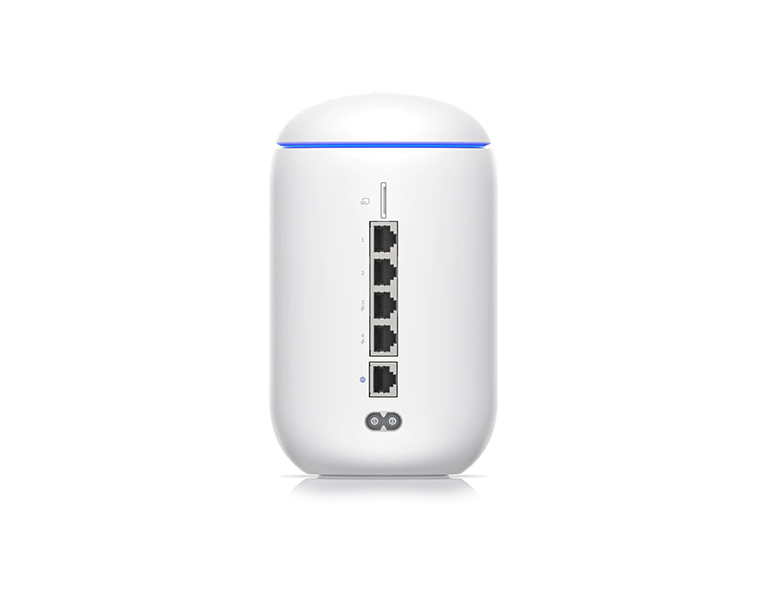

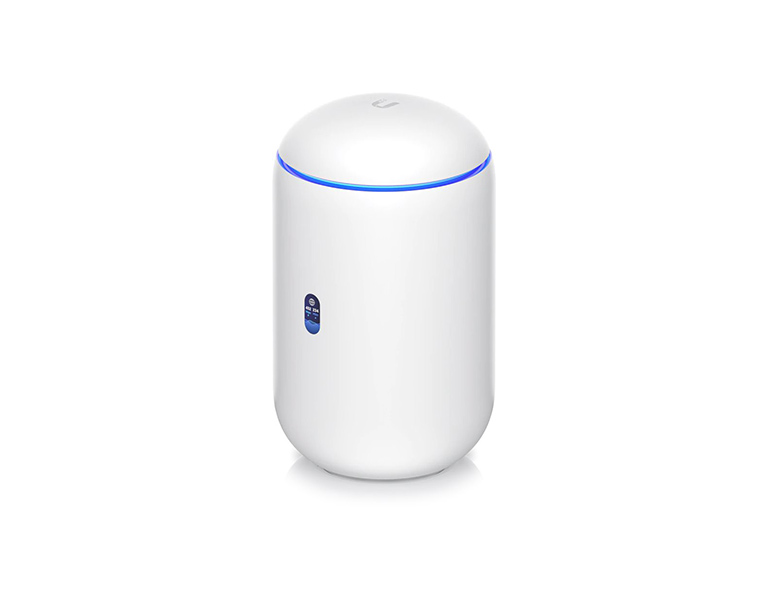

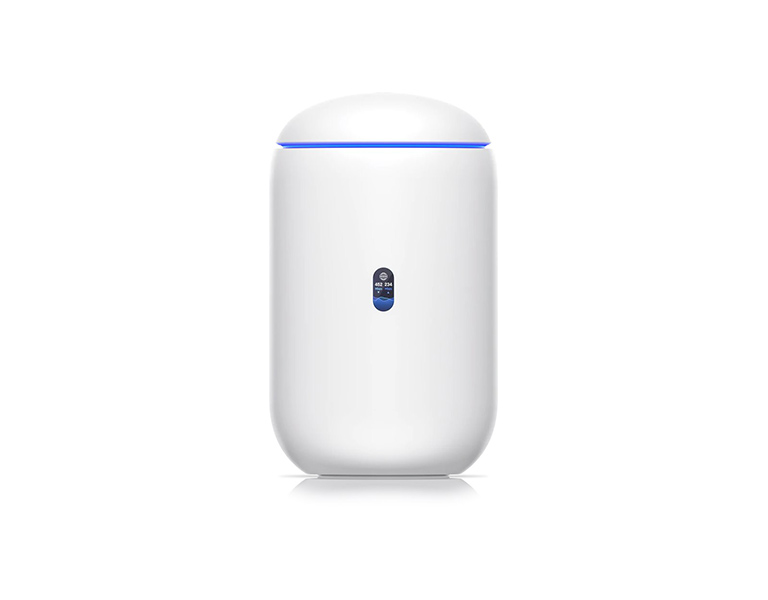

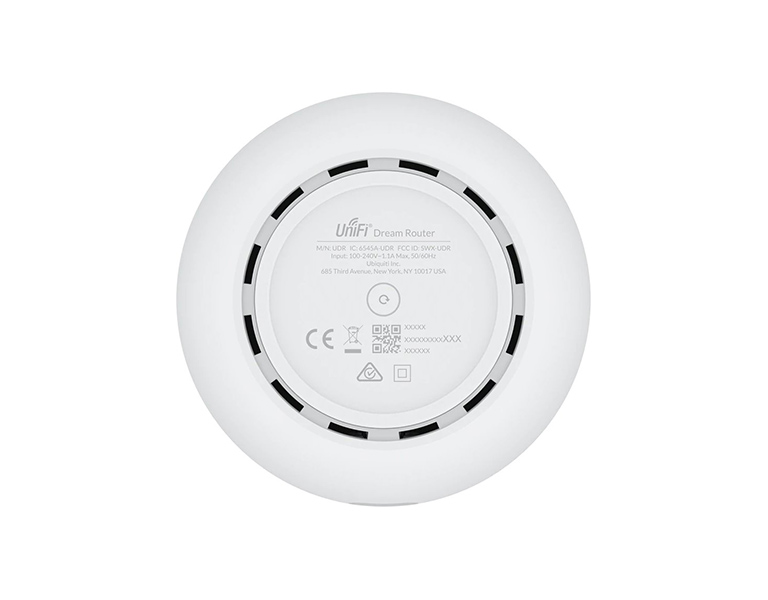

The Dream Router (UDR) is a next-generation WiFi 6 router that delivers unbeatable performance at an unmatched price. Featuring advanced 4x4 MU-MIMO and OFDMA technology, the UDR has an aggregate wireless throughput rate of up to 3 Gbps over its 2.4 and 5 GHz bands, ensuring quality connectivity for all of your devices. The UDR also has (5) GbE RJ45 ports, including two that supply PoE to compatible devices, and all of its connections can be conveniently monitored from the router's LCM color screen. Designed to be a comprehensive, easy-to-use network hub, the UDR can be set up and configured in minutes via the UniFi Network web application or mobile app.

Features:
• Four-stream WiFi 6 technology
• 5 GHz band (4x4 MU-MIMO/OFDMA) with a 2.4 Gbps throughput rate
• 2.4 GHz band (4x4 MIMO) with a 600 Mbps throughput rate
• 128 GB of internal storage
• (1) GbE RJ45 WAN port
• (4) LAN ports, including (2) 802.3af PoE outputs
• 0.96" LCM color screen for network and connection monitoring
• Micro SD memory card expansion slot*

*Requires a memory card with at least 128 GB of storage

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Specifications
Dimensions	Ø110 x 184.13 mm
Weight	1.15 kg
Enclosure material	Polycarbonate
Hardware
Processor specs	Dual-Core Cortex A53 at 1.35 GHz
System Memory	2 GB
Expansion slot	Micro SD memory card* (optional) *Requires a memory card with at least 128GB of storage
Management interface	Ethernet Bluetooth
Networking interfaces	(1) WAN: 1 GbE RJ45 port (4) LAN: 1 GbE RJ45 ports
PoE interfaces	(2) PoE IEEE 802.3af
LCM display	Start-up animation: start-up in progress Firmware update icon: firmware updating
Button	Factory-reset
LED	White/blue
Power method	Universal AC input, 100-240VAC, 1.1A Max, 50/60 Hz
Power supply	AC/DC, Internal, 50W
Supported voltage range	100 to 240VDC
Max. power consumption (excluding PoE output)	19.37W
PoE budget	32W
Max. PoE wattage per port by PSE	15.4W
Voltage range 802.3af mode	44 to 57VDC
Max. TX power	2.4 GHz, 26 dBm 5 GHz, 26 dBm
MIMO	2.4 GHz, 4x4 5 GHz, 4x4
Throughput rate	2.4 GHz, 600 Mbps 5 GHz, 2.4 Gbps
Antenna	(1) Internal, dual-band, quad-polarity antenna
Antenna gain	2.4 GHz, 3.4 dBi 5 GHz, 4.3 dBi
Operating Temperature	-10 to 45° C
Operating Humidity	5 to 95% Noncondensing
Certifications	CE, FCC, IC
Software
WiFi standards	802.11a/b/g WiFi 4/WiFi 5/WiFi 6
Wireless security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID	8 per radio
VLAN	802.1Q
Advanced QoS	Per-user rate limiting
Guest traffic isolation	Supported
Concurrent clients	300+
Suppoted Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)	6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5)	6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6)	7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
