• HomePlug AV2 Standard - high-speed data transfer rates of up to 1000 Mbps, supporting all your online needs
• Gigabit port - provides secure wired networks for desktops, smart TVs or games consoles
• Plug and play - allows setup of your powerline network in minutes, so you can enjoy fast, seamless wired connections right away
• Patented Power - Saving Mode - automatically reduces power consumption by up to 85%

Extend Reliable Gigabit Network through Electrical Wiring

AV1000 Speeds and 300 Meters Range

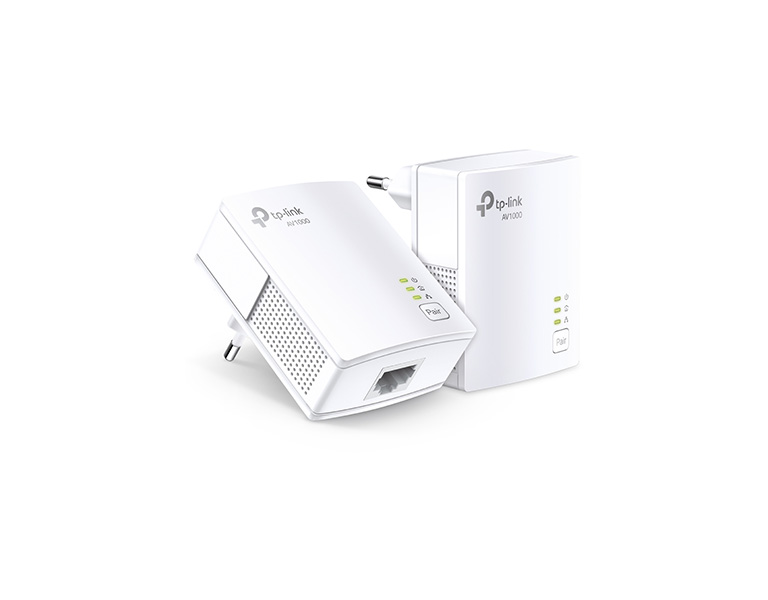

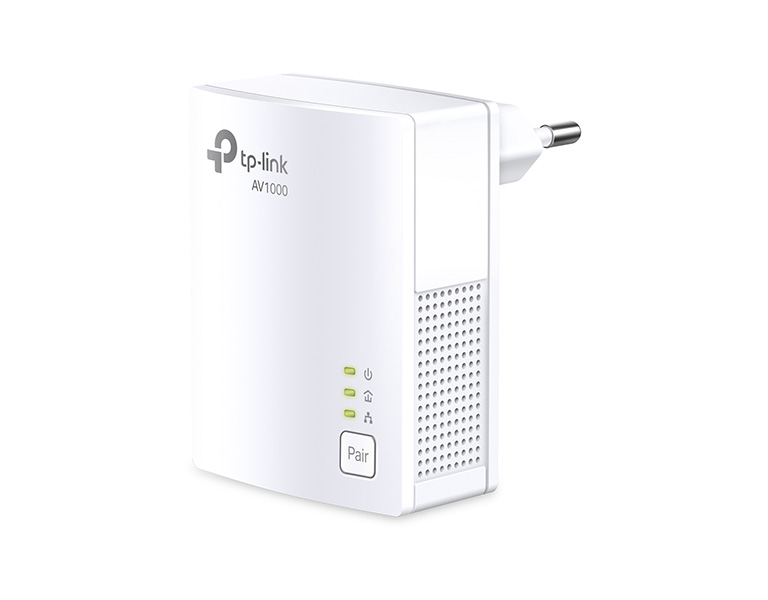

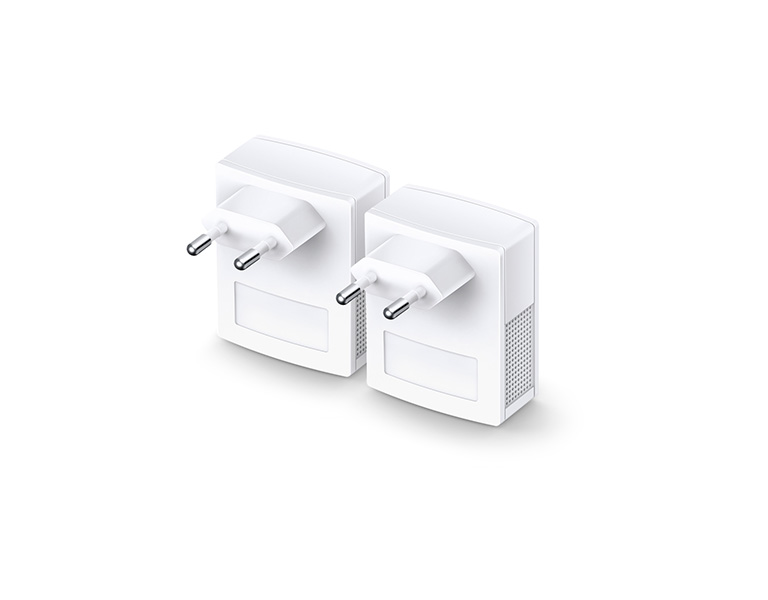

Using advanced HomePlug AV2 technology, TL-PA7017 KIT ensures stable and high-speed wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.

Gigabit Port for Maximum Connectivity

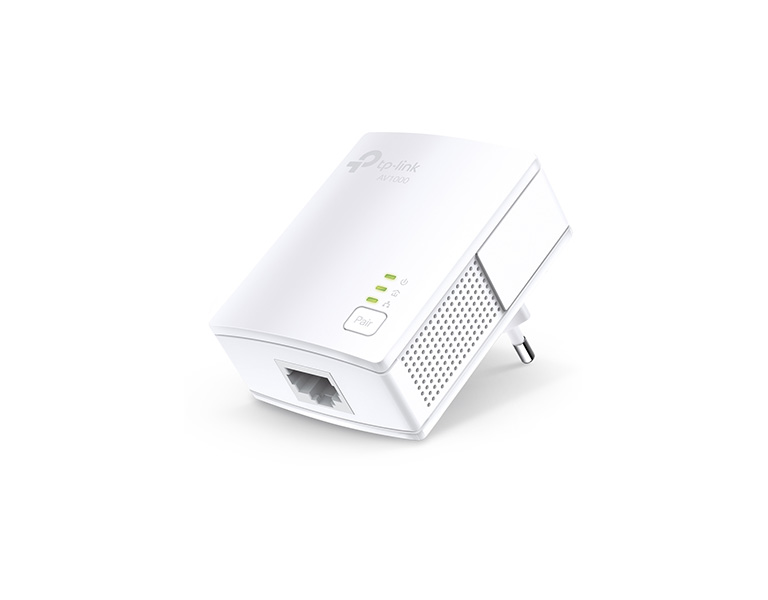

With one Gigabit Ethernet port, TL-PA7017 KIT allows users to connect a bandwidth intensive device to the Internet at high speeds and ensures the smooth transmission of Ultra HD video streaming. This makes the TL-PA7017 KIT the perfect home entertainment companion.

Plug and Play, No Configuration Required
Connect a powerline adapter to the router, plug another powerline adapter into a wall socket in another room, and you’re done!

Pair for more security

Press the “Pair” button on each adapter to
create a more secure network.

Reduce Power Consumption by Up to 85%
TL-PA7017 KIT, a new-generation of powerline adapter, with its practical design and sophisticated Power-Saving Mode, will automatically switch from its regular "Working" mode to "Power-Saving" mode reducing its energy consumption by up to 85%*

*Actual data will vary in different network conditions and environments.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	36 months

HARDWARE FEATURES
Plug Type	EU
Standards and Protocols	HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Power Consumption	Maximum: 2.7W (220V/50Hz) Typical: 2.3W (220V/50Hz) Standby: 0.5W (220V/50Hz)
Interface	1 * Gigabit Ethernet Port
Button	Pair/Reset button
Power Consumption	Maximum: 5.53W Typical: 5.32W Standby: 1.36W
LED Indicator	Power, Powerline, Ethernet
Dimensions (WxDxH)	52 × 28.5 × 65 mm
Range	Up to 300 meters/1000 feet over existing electrical wiring
Compatibility	Compatible with any powerline adapters /extenders and routers
SOFTWARE FEATURES
Modulation Technology	OFDM (PLC)
Encryption	Powerline Security: 128-bit AES
OTHERS
Certification	CE, RoHS
Package Contents	2 × AV1000 Gigabit Powerline Adapter TL-PA7017 2 × Ethernet Cable 1 × Quick Installation Guide
System Requirements	Windows 2000/XP/2003/Vista, Windows 7/8/8.1/10, Mac, Linux
Environment	Operating Temperature: 0°C~40°C Storage Temperature: -40°C~70°C Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
