• Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 4804 Mbps on 6 GHz, 4804 Mbps on 5 GHz, and 1148 Mbps on 2.4 GHz for 10.8 Gbps WiFi speeds.^†• High-Density Connectivity up to 2000 Clients**: Improves WiFi performance in dense environments with OFDMA, MU-MIMO, and BSS Coloring.^‡• 160 MHz Bandwidth Channel: Double the data at peak transmission times on a single stream with HE160.
• Smart Antennas: Professional antennas with high-power amplifiers provide strong wireless coverage in high-density environments.
• PoE++ Support: Supports Power over Ethernet (802.3bt) for convenient deployment and installation.
• Integrated into Omada SDN: Supports Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.*
• Centralized Management: Cloud access and the Omada app offer ultra convenience and easy management.

Experience the Peak of WiFi with Smart Antennas
Improve performance, lower interference, and extend coverage for user-heavy scenarios through TP-Link Smart Antenna technology. Equipped with an ingenious 6 GHz/5 GHz/2.4 GHz antenna array, EAP690E HD automatically selects the optimal antennas to cover all terminal devices via intelligent algorithms, delivering lag-free and superb WiFi experiences.

Reliable Business Networks with Intelligent Power Supply
With the intelligent power supply feature of EAP690E HD, the PoE switch can act as a backup power source. Intelligent power supply automatically and smoothly powers EAP690E HD when the DC adapter is accidentally disconnected, delivering a reliable and safe business network experience.

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface. Experience total control at your fingertips.

Auto Channel Selection and Power Adjustment to Optimize Overall Performance*
Provides powerful wireless performance that significantly reduces WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network

Easy Deployment & Higher Performance by Omada Mesh §
Easy Pairing, Less Wiring. With Mesh technology, Omada APs save you from redundant wires by wirelessly extending your WiFi signal farther and more flexibly to hard-to-wire areas.

Optimized Network Performance
Intelligent self-organization optimizes the best path between APs, while self-healing ensures your devices stay online even when one AP is disrupted.

Boosted Network Security and Efficiency
Secure Guest Network with up to 32 SSIDs
- Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.
Boost Business with Facebook WiFi and SMS Login
- Captive portal (including SMS, Facebook Wi-Fi, Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.§
WPA3 for Worry-Free Open Public Networks
- With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.
Band Steering
- Automatically moves dual band devices onto the wider 5 GHz/6 GHz band for faster connections.
Load Balance
- Ensures large numbers of users have smooth network experiences in high-density business networks.
Airtime Fairness
- Increases average network throughput in heavily congested environments.

^†Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications were defined according to test results under normal usage conditions, while the number of connected devices was defined according to estimated performance rather than test results and might change in the future. Actual wireless transmission rate, wireless coverage, and the number of connected devices are not guaranteed, and will vary as a result of 1) environmental factors, including building materials, physical objects and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead and 3) client limitations, including rated performance, location, connection quality, and client condition.

**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.

^‡Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features. The 160 MHz bandwidth is only available on the 6 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions.

*Zero-Touch Provisioning and Auto Channel Selection and Power Adjustment require the use of Omada Cloud-Based Controller. Go to /en/omada-cloud-based-controller/product-list/ to confirm which models are compatible with Omada Cloud-Based Controller.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5945 – 6425 MHz defined in this document, Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	60 months

HARDWARE FEATURES
Interface	1x 10Gbps Ethernet Port
Button	Reset
Power Supply	802.3bt PoE or 12V/4.5A DC
Power Consumption	Support Smart Power Consumption Management 44.9 W (802.3bt, full functionality); 40.6 W (12/4.5A, full functionality); 25.5 W (802.3at, 5GHz-2 and 6 GHz off); 12.95 W (802.3af, radio off, only main chip and LAN working)
Bluetooth	Yes
Dimensions ( W x D x H )	280 x 280 x 59.1 mm
Antenna Type	• 2.4 GHz: 4× 4.0 dBi • 5 GHz-1: 4× 5.0 dBi (Smart Antennas) • 5 GHz_2: 4× 5.5 dBi(Smart Antennas) • 6 GHz: 4× 5.0 dBi

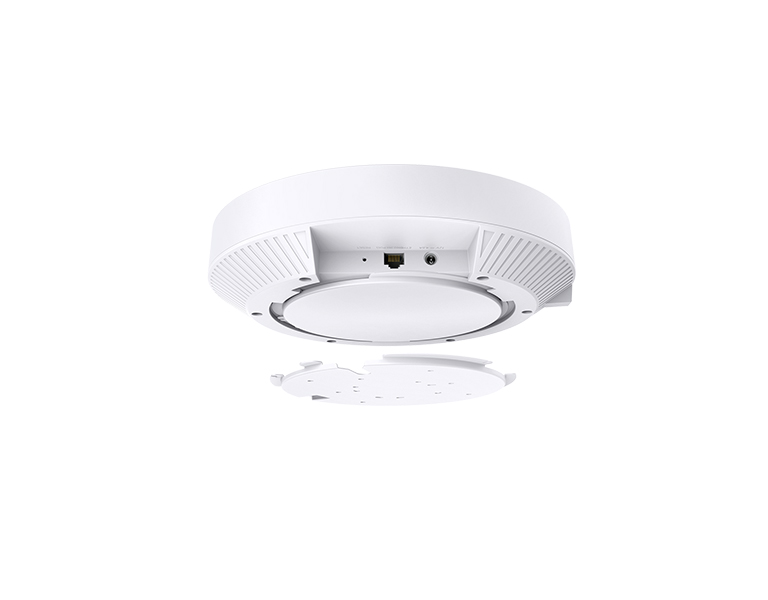

Mounting	Ceiling / Wall mouting (Kits included)
WIRELESS FEATURES
Wireless Client Capacity	2,000+**
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax
Frequency	• 2.4 GHz • 5 GHz • 6 GHz
Signal Rate	• 6 GHz:4804 Mbps • 5 GHz_1: 2402 Mbps • 5 GHz_2: 2402 Mbps • 2.4 GHz: 1148 Mbps
Wireless Security	WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE
Transmission Power	• CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz_1, EIRP) <30 dBm(5 GHz_2, EIRP) <23 dBm(6 GHz, EIRP) • FCC: <28 dBm (2.4 GHz) <28 dBm (5 GHz_1) <28 dBm (5 GHz_2) <25 dBm (6 GHz)
Multi-SSID	32(8 on each band)
MANAGEMENT
SNMP	v1, v2c, v3
OTHERS
Certification	CE, FCC, RoHS, IC
Environment	• Operating Temperature: 0 °C–40 °C • Storage Temperature: -40 °C–70 °C • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing;
