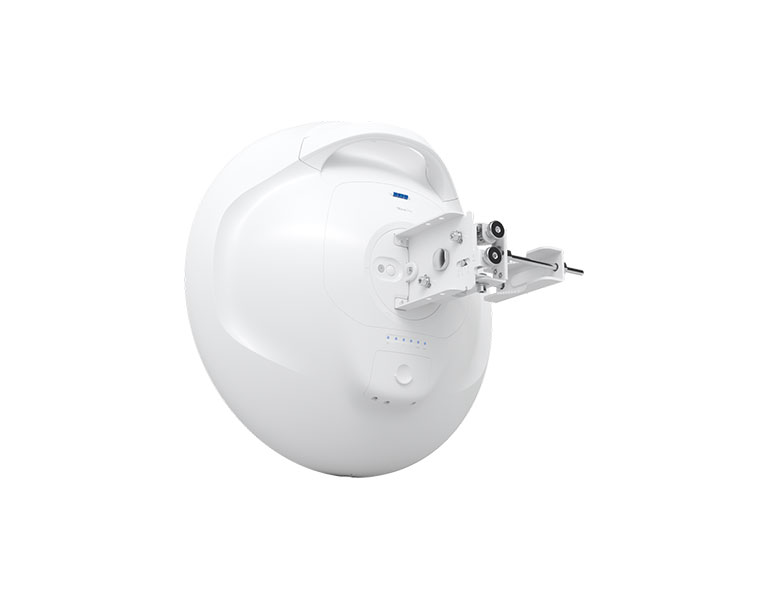

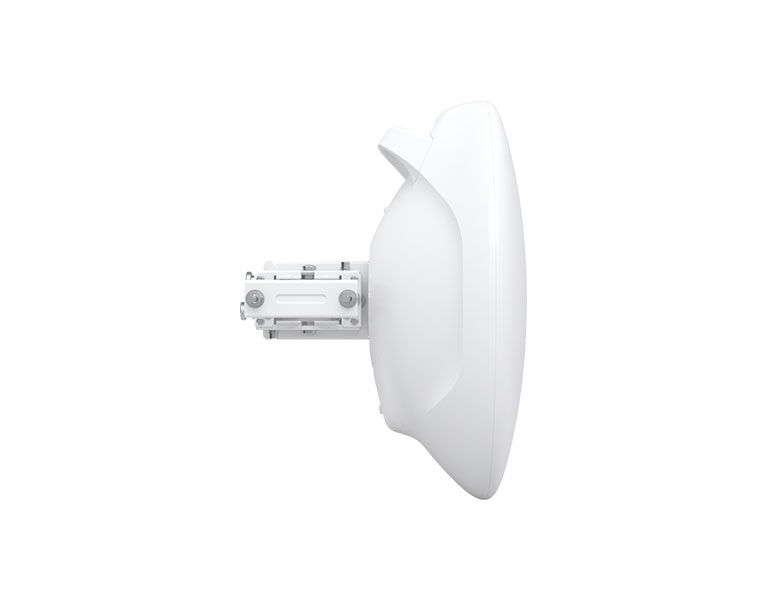

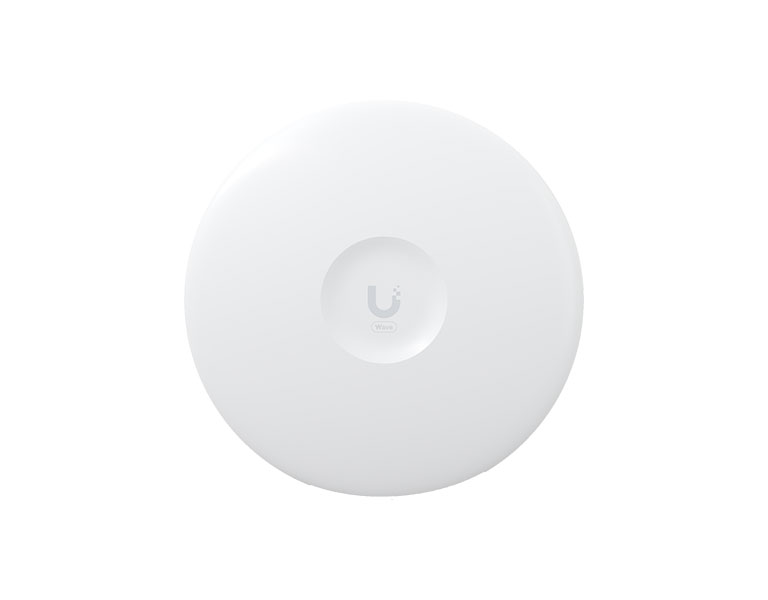

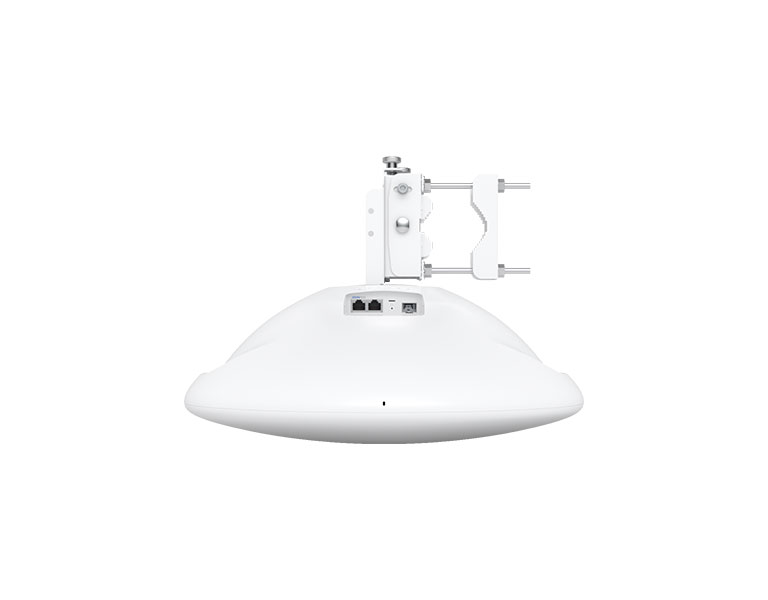

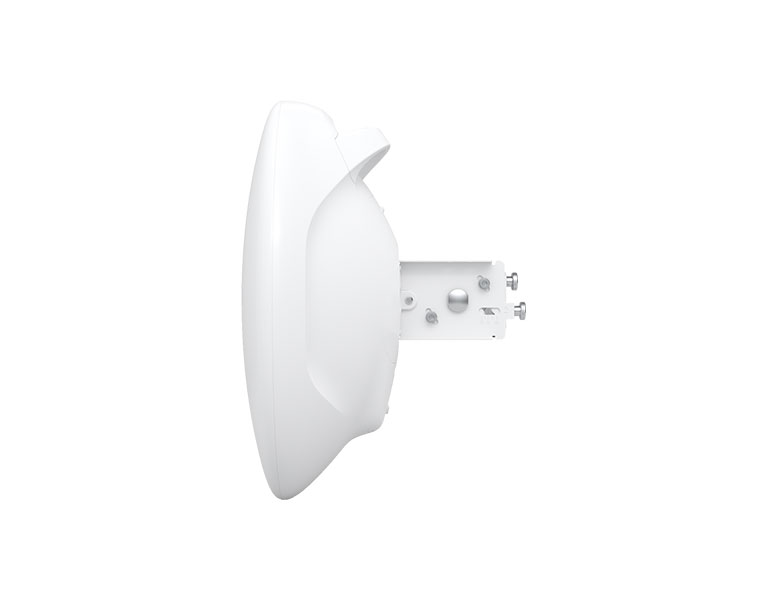

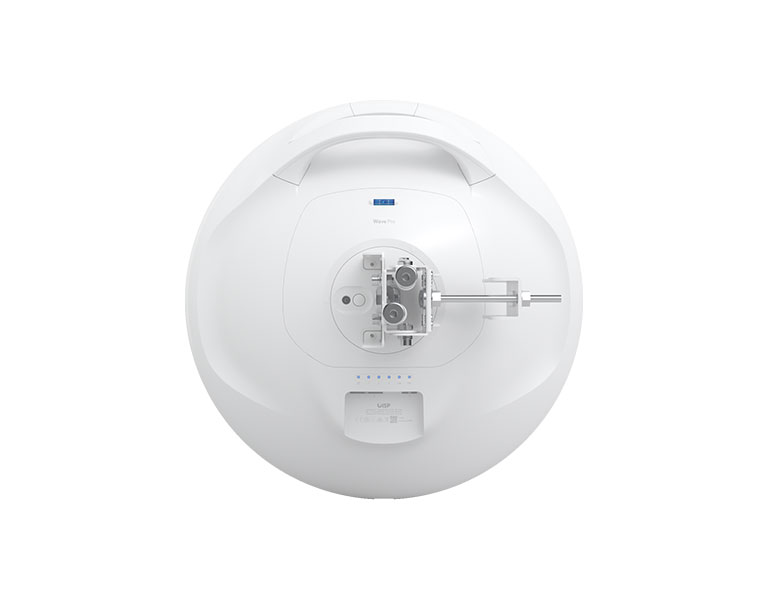

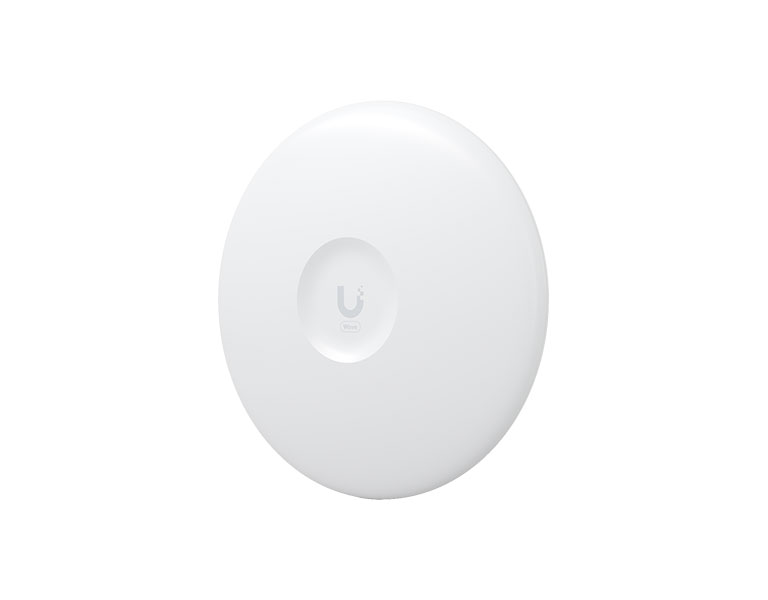

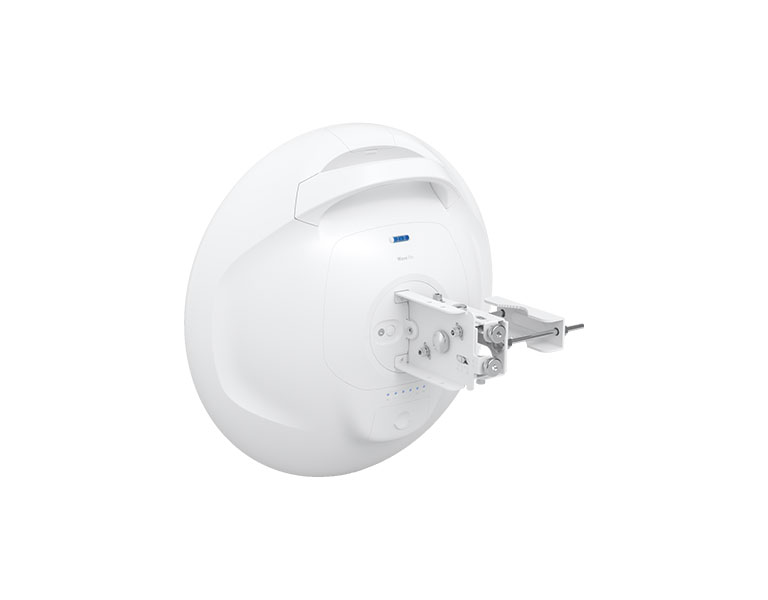

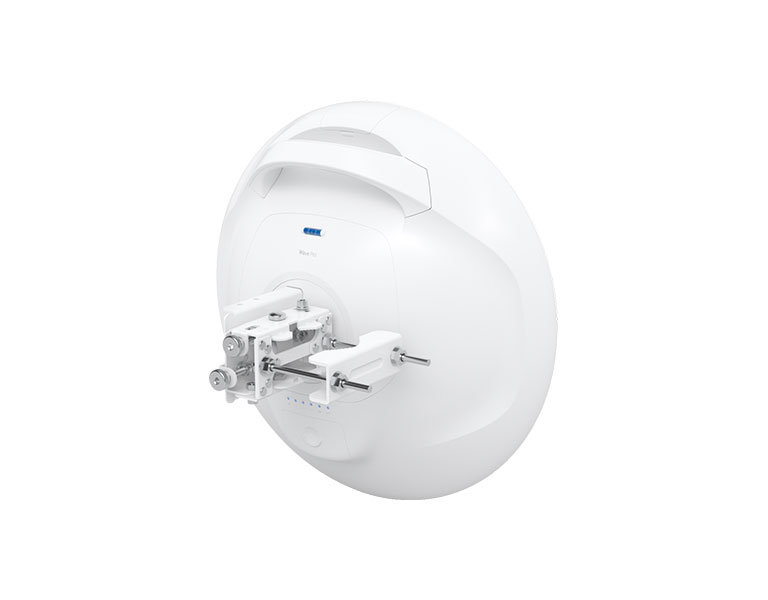

The Ubiquiti Wave Professional is a 60 GHz outdoor unit designed for Point-to-Multipoint (PtMP) connections with Wave (PtP) technology. It is possible to connect a Wave AP. The device has 2 LAN ports with a speed of 2.5 Gbps and one SFP+ port with a speed of up to 10 Gbps.

Range of the unit:
• In PtMP mode up to *8 km.
• In PtP mode up to *15 km.

Key Features:
• 60 Ghz
• SFP+ port
• Mods: PtMP,PtP
• Compatible with Wave AP

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Mechanical
Dimensions	Ø424.4 x 166.2 mm
Weight	Without mount: 2.8 kg With mount: 4 kg
Enclosure materials	Aluminum alloy, UV stabilized plastic
Mount material	Stainless steel
Pole mount diameter	25 to 76.2 mm on pipe outer diameter
Wind loading	369 N at 200 km/h
Weatherproong	IPX6
Hardware
Processor	Quad-core ARM® Cortex®-A53 at 1.4 GHz
Memory	DDR3L 512 MB
Networking interface	(2) 2.5 GbE RJ45 ports (1) 10G SFP+ port
Max. power consumption	26W
Power method	Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Power supply	48V DC, 0.65A, 2.5 GbE PoE adapter (included)
Supported voltage range	44–54V DC 22–27V DC
GPS	Yes
Button	Factory reset
LEDs	Power, (2) Ethernet, SFP+ , GPS, link
Operating temperature	-40 to 60° C
Operating humidity	5 to 95% noncondensing
Certications	FCC, IC, CE
Software
Operating mode	PtP, PtMP station
Ubiquiti specic features	Integrated 60 GHz radio, discovery protocol, Wave technology
Services	UISP, ping watchdog, NTP client, SNMP
Tools	Antenna alignment, discovery utility, ping, trace route, speed test
Network	Bridge/Router* mode *Router is available in PtMP station mode only.
Application requirements	UISP: Version 2.3.0 and later
System
Total throughput	5.4 Gbps (2.7 Gbps duplex)
Maximum range	PtP: Up to 15 km PtMP: Up to 8 km (Wave AP), up to 6 km (Wave AP Micro)
Encryption	WPA2-PSK (AES)
RF
Operating frequency*	57 to 71 GHz *Depends onregulatory region
Polarization	Vertically linear
Channel bandwidth	2160, 1080 MHz
Operating channels*	58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region.
Modulation	16QAM, QPSK
Antenna gain	46 dBi
Beamwidth	Azimuth: 3 dB 1.3° Elevation: 3 dB 1.3°
Back-Up RF
WiFi standard	802.11ax (WiFi 6)
Operating frequency* US/CA Worldwide	U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz 5150 - 5875 MHz *Depends on regulatory region.
Channel bandwidth	20, 40, 80 MHz
Modulation	BPSK (½) QPSK (½), QPSK (¾) 16QAM (½), 16QAM (¾) 64QAM (2⁄3), 64QAM (¾), 64QAM (5⁄6) 256QAM (¾), 256QAM (5⁄6) 1024QAM (¾), 1024QAM (5⁄6)
Max. conducted TX power	27 dBm
Antenna gain	22 dBi
Polarization	Dual-linear
Beamwidth	Azimuth: 3 dB 8° Elevation: 3 dB 8°
Cross-pol isolation	20 dB
LEDs
Power	Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress
Ethernet	(2) Flashing blue: Ethernet traffic detected
SFP+	(1) Flashing blue: SFP+ traffic detected
GPS	Blue: Receiving at least (4) GPS satellite signal
Links	White: 5GHz link Blue: 60GHz link
